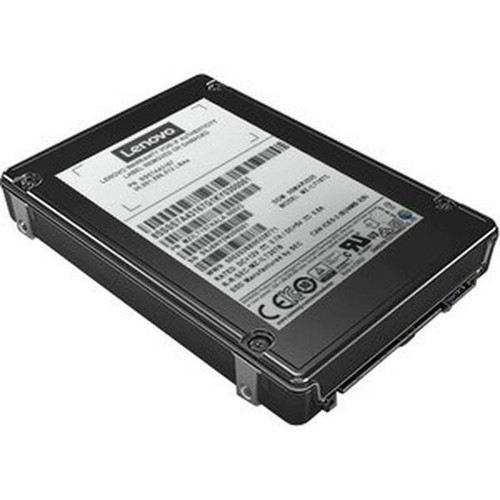

Lenovo PM1653 960 GB Solid State Drive - 2.5" Internal - SAS (24Gb/s SAS) - Read Intensive - Server Device Supported - 1 DWPD - 1752 - (4XB7A80318)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- ThinkSystem 2.5" PM1653 960GB Read Intensive SAS 24Gb HS SSD
- Documentation flyer
- ST650 V2 (7Z75 / 7Z74)
- SR630 V2 (7Z70 / 7Z71)
- SR650 V2 (7Z72 / 7Z73)
- SR670 V2 (7Z22 / 7Z23)
- SR635 (7Y98 / 7Y99)
- SR655 (7Y00 / 7Z01)
- SR645 (7D2Y / 7D2X)
- SR665 (7D2W / 7D2V)
- SN550 V2 (7Z69)
- SR850 V2 (7D31 / 7D32)
- SR860 V2 (7Z59 / 7Z60)
- SR950 (7X11 / 7X12)
- ST550 (7X09 / 7X10)
- SR530 (7X07 / 7X08)
- SR550 (7X03 / 7X04)
- SR570 (7Y02 / 7Y03)
- SR590 (7X98 / 7X99)
- SR630 (7X01 / 7X02)
- SR650 (7X05 / 7X06)
- SD530 (7X21)
- SN550 (7X16)
- SN850 (7X15)
- SR850 (7X18 / 7X19)
- SR850P (7D2F / 2D2G)
- SR860 (7X69 / 7X70)
Storage Capacity: 960 GB
Maximum Read Transfer Rate: 2100 MB/s
Maximum Write Transfer Rate: 1300 MB/s
Random 4KB Read: 420000IOPS
Random 4KB Write: 60000IOPS
Endurance (DWPD): 1
Endurance (TBW): 1752 TB
Endurance Type: Read Intensive
Wireless LAN: No
Drive Interface: SAS
Drive Interface Standard: 24Gb/s SAS
Drive Type: Internal
Form Factor: 2.5"
Hot Swappable: Yes
Height: 0.59" (15 mm)
Width: 2.76" (70 mm)
Depth: 3.94" (100 mm)
Weight (Approximate): 5.64 oz (160 g)
Package Contents:
Device Supported: Server
Compatibility:
ThinkSystem servers:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
Additional Warranty Information:
PM1653 SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty.
- With a capacity of 960 GB, you have large storage space for all your documents and data
- The high-read speed of 2100 MB/s maximizes system performance and saves time while you are doing complex tasks
- With the high-write speed of 1300 MB/s, get a quick response when updating or transferring files
- 24Gb/s SAS interface provides quick data transfer and greater throughput
[custom-specifications]
| Specifications | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4XB7A80318 |
| Manufacturer Website Address | http://www.lenovo.com |
| Brand Name | Lenovo |
| Product Series | PM1653 |
| Product Name | ThinkSystem 2.5" PM1653 960GB Read Intensive SAS 24Gb HS SSD |
| Packaged Quantity | 1 |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 960 GB |
| Drive Performance | |
| Maximum Read Transfer Rate | 2100 MB/s |
| Maximum Write Transfer Rate | 1300 MB/s |
| Random 4KB Read | 420000IOPS |
| Random 4KB Write | 60000IOPS |
| Endurance (DWPD) | 1 |
| Endurance (TBW) | 1752 TB |
| Endurance Type | Read Intensive |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Drive Interface | SAS |
| Drive Interface Standard | 24Gb/s SAS |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Hot Swappable | Yes |
| Height | 0.59" (15 mm) |
| Width | 2.76" (70 mm) |
| Depth | 3.94" (100 mm) |
| Weight (Approximate) | 5.64 oz (160 g) |
| Miscellaneous | |
| Package Contents |
|
| Device Supported | Server |
| Compatibility | ThinkSystem servers:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | PM1653 SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty. |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
| Qty | Price | Available |
|---|
