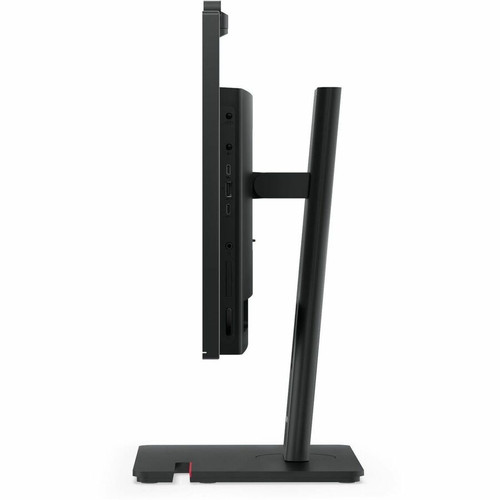

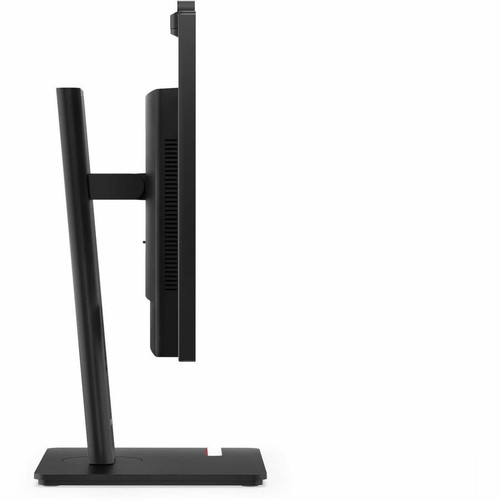

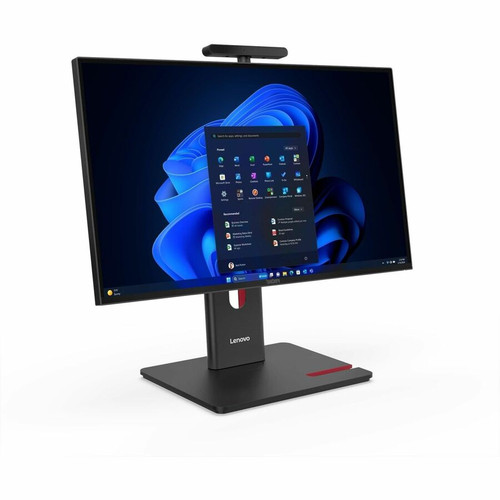

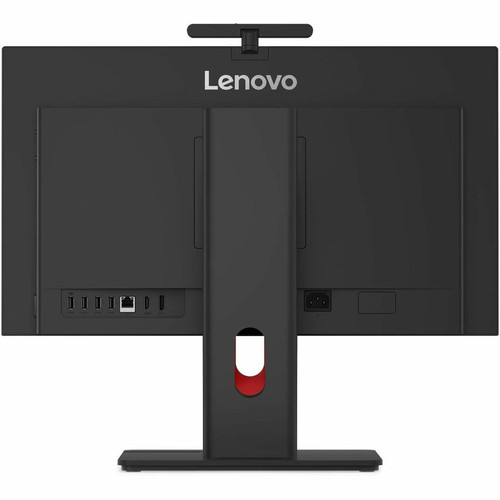

Lenovo 13AT0003US ThinkCentre M90a Gen 6 All-in-One Computer - Intel Core Ultra 5225 2nd Gen 10-Core - 8GB DDR5 - 256GB NVMe SSD - 23. 8" FHD - Windows
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkCentre M90a Gen 6 is the Intel Core Ultra 5 225 2nd Gen processor, featuring 10 cores and a maximum turbo frequency of 4.90 GHz. This CPU is paired with an Intel AI Boost NPU delivering 13 TOPS of AI performance, enabling efficient handling of generative AI tasks and intelligent system tuning. The Intel Q870 chipset provides a stable platform for business applications and connectivity.
Memory is configured as 8GB of DDR5 SDRAM running at 5600 MHz, offering high bandwidth for multitasking. Storage is handled by a 256GB PCI Express NVMe 4.0 x4 SSD in the M.2 form factor, ensuring fast boot times and rapid data access. The system also includes a DVD-Writer for optical media support, adding versatility for legacy data or software installation.
Key Product Advantages
This all-in-one desktop excels in delivering a balanced combination of performance, connectivity, and user-friendly features. The Intel Core Ultra 5 processor with integrated AI acceleration optimizes system responsiveness and supports modern AI workloads, making it suitable for environments leveraging Copilot+ PC capabilities. The 23.8-inch Full HD display provides crisp visuals with 99% sRGB color coverage, ideal for detailed work and multimedia consumption.
Comprehensive Connectivity
With 6 USB ports including Thunderbolt 4 and USB-C with charging, along with Gigabit Ethernet and Wi-Fi 6, the system ensures seamless peripheral and network integration.
- Thunderbolt 4 for high-speed data
- USB-C with 5V@3A charging
- Wi-Fi 6 for fast wireless
Built-in Security & Convenience
The integrated webcam features a privacy shutter and infrared camera for Windows Hello facial recognition, enhancing security while maintaining ease of use.
- Camera privacy shutter
- Infrared camera for biometric login
- Security slot for physical protection
Deployment / Use Cases
The ThinkCentre M90a Gen 6 is well-suited for office environments where space efficiency and reliable performance are priorities. Its all-in-one design minimizes desk clutter, making it ideal for reception areas, shared workspaces, and administrative desks. The system handles everyday business applications, video conferencing, and document processing with ease, supported by the Windows 11 Pro operating system and robust connectivity.
In educational settings, this desktop provides a durable, low-maintenance solution for computer labs, libraries, and classrooms. The included DVD-Writer allows for educational media playback, while the display's Low Blue Light and flicker-free technologies reduce eye strain during extended use. For professional creative tasks, the 99% sRGB color gamut ensures accurate color representation for photo editing and design work.
This section brings together practical product details such as AI-powered, Processor Manufacturer, Processor Type, Processor Generation, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Localization and Operating System
This system comes pre-installed with Windows 11 Pro in English, providing a full suite of productivity and security features tailored for business use. The operating system efficiently manages hardware resources, offering a smooth user experience with built-in tools for creativity and collaboration. The keyboard is localized for English (US) layouts, ensuring familiarity and ease of typing for users in North American markets.
This section brings together practical product details such as AI-powered, Processor Manufacturer, Processor Type, Processor Generation, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The ThinkCentre M90a Gen 6 features a sleek, black all-in-one chassis with dimensions of 21.24" wide, 17.95" high, and 10.43" deep, weighing approximately 17.73 lbs. Its compact footprint saves valuable desk space while housing the display and internal components in a single unit. The design includes a VESA mount compatibility for flexible mounting options, and the UltraFlex V stand allows for easy adjustment. The desktop form factor ensures structural integrity and consistent thermal performance for reliable operation.
- Width
- 21.24" (539.60 mm)
- Depth
- 10.43" (264.91 mm)
- Height
- 17.95" (455.94 mm)
- Weight
- 17.73 lb (8040 g)
What's in the Box
The package includes all essential components for immediate setup and use.
Highlights
- Intel Core Ultra 5 225 2nd Gen processor with 10 cores and up to 4.90 GHz turbo speed
- 8 GB DDR5 SDRAM at 5600 MHz for responsive multitasking
- 256 GB PCI Express NVMe 4.0 x4 SSD for fast boot and application loading
- 23.8" Full HD display with 99% sRGB color gamut and 250 cd/m² brightness
- Windows 11 Pro pre-installed with English language and US keyboard localization
- Comprehensive connectivity: Thunderbolt 4, USB-C with charging, Wi-Fi 6, Bluetooth
- Built-in webcam with privacy shutter and infrared camera for facial recognition
- All-in-one design with VESA mount support and UltraFlex V stand
- Energy-efficient with ENERGY STAR 9.0, EPEAT Gold, and TCO Certified 10.0
- 3-year onsite warranty for reliable long-term support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 13AT0003US |
| Brand Name | Lenovo |
| Product Line | ThinkCentre |
| Product Series | M90a Gen 6 |
| Product Model | 13AT0003US |
| Product Name | ThinkCentre M90a Gen 6 13AT0003US All-in-One Computer |
| Product Type | All-in-One Computer |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core Ultra 5 |
| Processor Generation | 2nd Gen |
| Processor Model | 225 |
| Processor Core | Deca-core (10 Core) |
| Processor Threads | 10 |
| Maximum Turbo Speed | 4.90 GHz |
| vPro Technology | No |
| NPU Manufacturer | Intel |
| NPU Name | AI Boost |
| NPU Performance | 13 TOPS |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q870 |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 5600 MHz |
| Memory Configuration | 1 x 8GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Optical Drive Type | DVD-Writer |
| Optical Media Supported | DVD±RW |
| Display & Graphics | |
| Screen Size | 23.8" |
| Screen Mode | Full HD |
| Screen Resolution | 1920 x 1080 |
| Touchscreen | No |
| Brightness | 250 cd/m² |
| Color Gamut | 99% sRGB |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English (US) |
| Built-in Devices | |
| Webcam | Yes |
| Camera Privacy Shutter | Yes |
| Infrared Camera | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), support data transfer and 5V@3A charging |
| Number of Thunderbolt 4 Ports | 1 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 180 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Desktop |
| Height | 17.95" (455.94 mm) |
| Width | 21.24" (539.60 mm) |
| Depth | 10.43" (264.91 mm) |
| Weight (Approximate) | 17.73 lb (8040 g) |
| Miscellaneous | |
| Package Contents | ThinkCentre M90a Gen 6 13AT0003US All-in-One Computer USB, Calliope USB Calliope Mouse VESA mount UltraFlex V Stand |
| Features | Low Blue Light,Flicker-free,Security Slot |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 10.0,GREENGUARD,TCO Certified Edge |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Energy Efficiency Certification | ENERGY STAR 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite |
User Manual
FAQ
What processor does this Lenovo all-in-one desktop use?
This system is powered by an Intel Core Ultra 5 225 2nd Gen processor. It features 10 cores, supports a maximum turbo frequency of 4.90 GHz, and includes an Intel AI Boost NPU with 13 TOPS of AI performance for efficient handling of generative AI tasks and intelligent system tuning.
How much memory and storage are included?
The desktop comes with 8 GB of DDR5 SDRAM running at 5600 MHz, configured as a single 8GB module. For storage, it includes a 256 GB PCI Express NVMe 4.0 x4 SSD in the M.2 form factor, providing fast data access and quick system responsiveness.
What are the display specifications?
The all-in-one features a 23.8-inch Full HD display with a resolution of 1920 x 1080. It offers a brightness of 250 cd/m² and covers 99% of the sRGB color gamut, making it suitable for detailed work and multimedia. The display includes Low Blue Light and flicker-free technologies to reduce eye strain.
What connectivity options are available?
Connectivity includes 6 USB ports: 2 USB 3.2 Gen 1, 3 USB 3.2 Gen 2, and 1 Thunderbolt 4 port. There is also a USB-C port that supports data transfer at 10 Gbps and 5V@3A charging. Networking features Gigabit Ethernet, Wi-Fi 6 (802.11ax), and Bluetooth for wireless peripherals.
Does this computer come with an operating system?
Yes, it comes pre-installed with Windows 11 Pro in English. This operating system includes a full suite of productivity and security tools, efficiently manages hardware for a smooth experience, and supports modern business applications and AI features.
What is included in the warranty and package?
The system includes a 3-year onsite warranty for reliable support. The package contains the ThinkCentre M90a Gen 6 all-in-one computer, a Calliope USB mouse, a VESA mount, an UltraFlex V stand, and necessary cables and documentation for easy setup.
What processor is listed for this desktop or workstation?
This product uses the Intel processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 4.90 GHz processor for everyday performance and multitasking.
