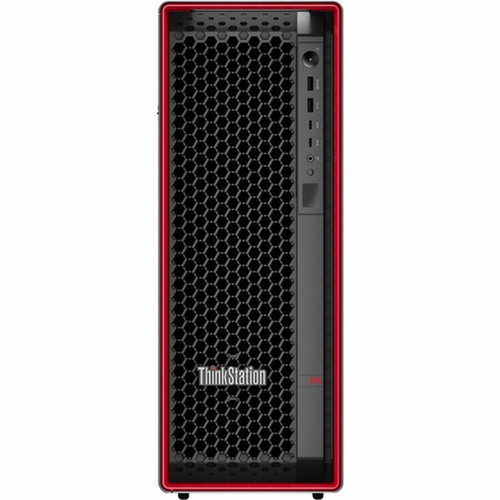

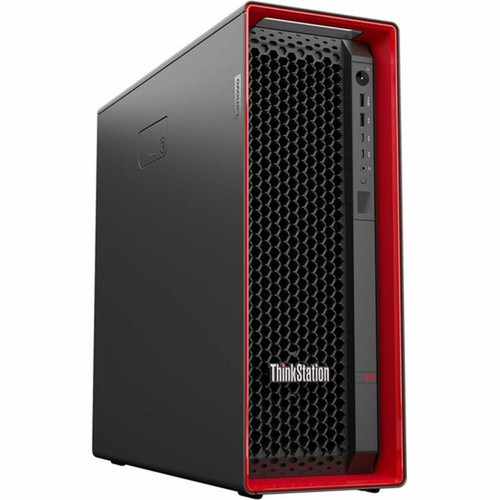

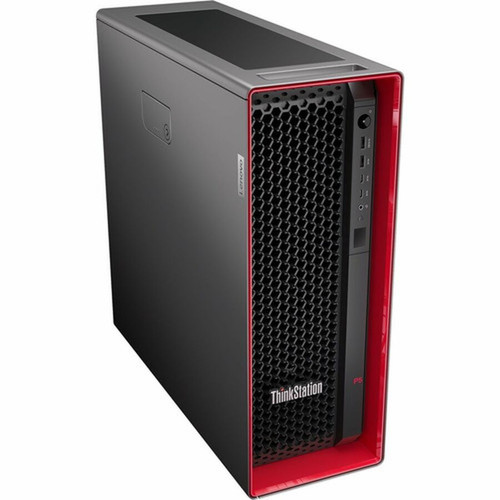

Lenovo 30GA0063CA ThinkStation P5 Workstation - Xeon w3-2435 Octa-core 3. 10 GHz - 32 GB DDR5 - 1 TB NVMe SSD - Windows 11 Pro for Workstations - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P5 is the Intel Xeon w3-2435 octa-core processor, operating at 3.10 GHz with 16 threads and Socket LGA-4677 compatibility. This CPU, paired with the Intel W790 chipset, offers built-in security features, remote management capabilities, and the processing power required for compute-heavy applications like finite element analysis, computational fluid dynamics, and large-scale data analytics.
The memory subsystem utilizes DDR5 SDRAM technology with ECC and registered signal processing, delivering 4.80 GHz clock speeds across eight available slots. This configuration supports expansion up to 512 GB, providing headroom for memory-intensive workloads. Storage is handled by a PCI Express NVMe 4.0 x4 SSD with a 1 TB capacity, offering sequential read/write speeds that significantly reduce load times for applications and datasets.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ThinkStation P5 combines workstation-class components with Lenovo's rigorous testing and validation processes, resulting in a system optimized for stability under sustained heavy loads. The tower form factor offers superior thermal management and acoustic performance compared to compact designs, ensuring consistent operation during extended rendering or simulation sessions.
Enterprise-Grade Reliability
ECC memory corrects single-bit errors, preventing data corruption and system crashes in critical applications. The registered memory modules reduce electrical load on the memory controller, enhancing signal integrity and stability.
- ECC error correction
- Registered memory signal processing
- Intel Xeon processor with remote management
High-Speed Storage Architecture
The PCI Express NVMe 4.0 x4 interface delivers bandwidth up to 8 GB/s, drastically accelerating file transfers, application launches, and dataset loading. RAID support provides options for performance striping, data mirroring, or parity-based redundancy.
- NVMe 4.0 x4 interface
- 1 TB SSD capacity
- RAID 0, 1, 5 support
Comprehensive Professional Connectivity
Six USB ports include modern USB 3.2 Gen 2 and USB-C 3.2 Gen 2x2 interfaces for high-speed peripheral connections. Gigabit Ethernet, Wi-Fi, and Bluetooth ensure flexible network and device integration.
- USB-C 3.2 Gen 2x2 port
- DisplayPort output
- Dual-band wireless LAN
Deployment / Use Cases
The ThinkStation P5 is purpose-built for professional environments where computational accuracy, data integrity, and application performance are non-negotiable. Its balanced configuration of CPU, memory, storage, and graphics makes it suitable for a wide range of technical and creative disciplines.
In engineering and manufacturing, this workstation handles CAD/CAM software, finite element analysis, and computational fluid dynamics simulations. The dedicated graphics memory accelerates 3D model manipulation and visualization, while the Xeon processor ensures numerical precision in calculations.
Scientific Research & Data Analysis
Researchers benefit from the octa-core Xeon processor's parallel processing capabilities for statistical analysis, genomic sequencing, and computational chemistry. The 32 GB of ECC memory prevents errors in large datasets, and the NVMe SSD reduces I/O bottlenecks.
- Parallel computation
- Data integrity with ECC
- Fast dataset access
Media Production & Visualization
Video editors, animators, and visualization specialists utilize the dedicated graphics memory for real-time playback, effects rendering, and 3D scene manipulation. The tower's cooling system maintains performance during extended rendering jobs.
- 16 GB graphics memory
- Sustained rendering performance
- Multiple display support
Localization and Operating System
This ThinkStation P5 ships with Windows 11 Pro for Workstations pre-installed, providing a 64-bit operating environment optimized for high-performance computing. This edition includes features like support for up to four CPUs, large memory configurations, and enhanced file system performance, making it ideal for workstation-class hardware.
The keyboard is localized for French (Canada), with appropriate key legends and layout for Canadian French users. This localization extends to the operating system interface, ensuring a seamless experience for French-speaking professionals in engineering, academia, and government sectors across Canada.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The tower chassis measures 17.56 inches in height, 6.50 inches in width, and 17.87 inches in depth, with a weight of approximately 41.89 pounds. This form factor provides ample internal space for additional storage drives, expansion cards, and efficient airflow management. The design supports standard ATX power supplies and includes tool-less access panels for easy maintenance and upgrades.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 17.56" (446 mm), 6.50" (165 mm), 17.87" (453.90 mm), 41.89 lb (19000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The workstation package includes the ThinkStation P5 tower system and a matching ThinkStation P5 keyboard with French (Canada) localization. All necessary power cables and documentation are provided to facilitate quick setup and integration into your professional workspace.
Highlights
- Intel Xeon w3-2435 octa-core processor with 3.10 GHz clock speed and 16 threads
- 32 GB DDR5 SDRAM ECC registered memory, expandable to 512 GB across eight slots
- 1 TB PCI Express NVMe 4.0 x4 solid-state drive for rapid data access
- Dedicated 16 GB graphics memory for professional visualization workloads
- Windows 11 Pro for Workstations 64-bit operating system pre-installed
- Comprehensive connectivity: Gigabit Ethernet, Wi-Fi, Bluetooth, 6 USB ports, DisplayPort
- Tower form factor with dimensions of 17.56" H x 6.50" W x 17.87" D
- French (Canada) keyboard localization for Canadian professional users
- 3-year limited warranty with 3-year Premier NBD onsite service
- TCO Certified 9.0 and RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA0063CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA0063CA |
| Product Name | ThinkStation P5 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w3-2435 |
| Processor Core | Octa-core (8 Core) |
| Processor Threads | 16 |
| Processor Speed | 3.10 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C 3.2 Gen 2x2 |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Year Premier NBD |
User Manual
FAQ
What processor does the Lenovo ThinkStation P5 30GA0063CA use?
This workstation features an Intel Xeon w3-2435 octa-core processor with eight cores and 16 threads, operating at a base frequency of 3.10 GHz. The Xeon processor includes enterprise-grade features like ECC memory support, remote management capabilities, and enhanced security for professional computing environments.
How much memory is installed, and can it be expanded?
The system comes with 32 GB of DDR5 SDRAM installed, utilizing ECC (Error-Correcting Code) and registered signal processing for data integrity. It has eight memory slots total, supporting expansion up to a maximum of 512 GB, allowing for significant upgrades as your memory requirements grow.
What type of storage does this workstation include?
Storage is provided by a 1 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface, which delivers high sequential read and write speeds for fast application loading and data transfer. The storage controller supports both Serial ATA/600 and NVMe, with hardware RAID 0, 1, and 5 capabilities.
Does this ThinkStation have dedicated graphics?
Yes, the workstation includes dedicated graphics with 16 GB of graphics memory. This dedicated GPU accelerates professional applications like 3D modeling, simulation, video editing, and scientific visualization, providing better performance than integrated graphics for these workloads.
What operating system is pre-installed?
The system ships with Windows 11 Pro for Workstations 64-bit pre-installed. This edition is optimized for high-performance hardware, supporting features like large memory configurations, multiple processors, and enhanced file system performance ideal for workstation use cases.
What connectivity options are available?
Connectivity includes Gigabit Ethernet for wired networking, dual-band wireless LAN, and Bluetooth for wireless devices. There are six USB ports: two USB 2.0, three USB 3.2 Gen 2, and one USB-C 3.2 Gen 2x2 port supporting high-speed data transfer. A DisplayPort output is also provided for monitor connections.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 3.10 GHz processor for everyday performance and multitasking.
