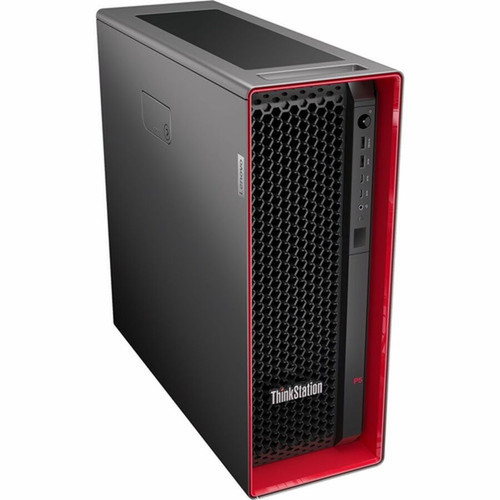

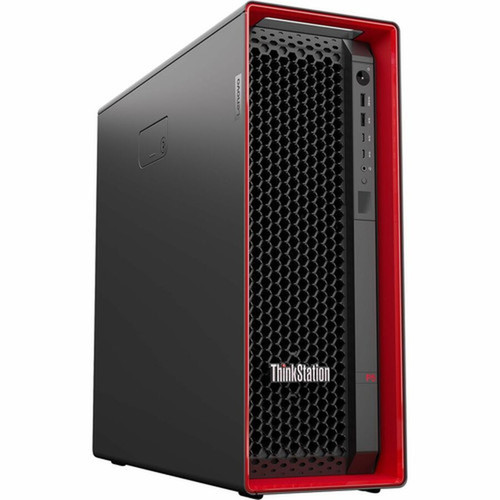

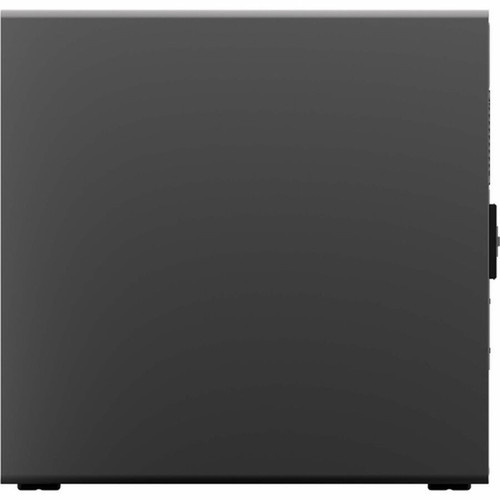

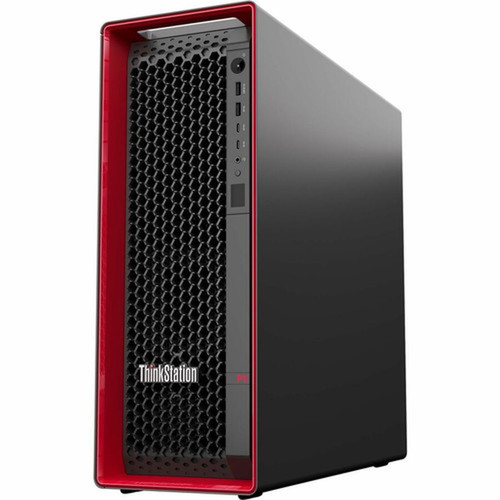

Lenovo 30GA0064CA ThinkStation P5 Workstation - Xeon w3-2423 Hexa-core 2. 10 GHz - 64 GB RAM - 2 TB NVMe SSD - Tower - Windows 11 Pro for Workstations
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P5 is the Intel Xeon w3-2423 processor. This hexa-core CPU operates at a base frequency of 2.10 GHz, supports 12 threads via Hyper-Threading, and is built on the LGA-4677 socket platform. It is paired with the Intel W790 chipset, providing a stable foundation for workstation-class expansion and I/O.
The memory subsystem utilizes DDR5 SDRAM technology with Error-Correcting Code (ECC) and Registered signal processing for enhanced data integrity in mission-critical environments. The installed 64 GB runs at 4800 MHz, and the platform offers eight memory slots to support future expansion up to 512 GB total capacity.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ThinkStation P5 is designed to handle specialized, heavy computational tasks with ease. Its combination of Xeon processor reliability, ECC memory for error-free operation, and high-performance NVMe storage ensures consistent output for complex simulations, 3D rendering, financial modeling, and software development.
Professional-Grade Reliability
Features like ECC memory, a robust tower chassis, and Intel Xeon architecture are engineered for 24/7 operation and data integrity, minimizing the risk of crashes or corruption during long-running jobs.
- ECC DDR5 RAM for data correction
- Xeon processor with built-in security features
- Sturdy tower form factor for cooling and expansion
High-Speed Data Pipeline
The PCI Express NVMe 4.0 x4 SSD interface delivers exceptional storage bandwidth, drastically reducing load times for large datasets, applications, and project files, while the platform supports hardware RAID for performance or redundancy.
- 2 TB NVMe SSD for fast boot and load times
- RAID 0, 1, 5 support for performance or data protection
- DDR5 memory for efficient CPU data feeding
Deployment / Use Cases
This workstation is ideally suited for professional environments where computational power, stability, and expandability are non-negotiable. Its tower design provides ample internal space for additional storage drives, expansion cards, or upgraded cooling solutions.
Primary use cases include computer-aided design (CAD), building information modeling (BIM), finite element analysis (FEA), video editing and color grading, scientific computing, and serving as a development platform for software engineering. The inclusion of Windows 11 Pro for Workstations provides advanced features like support for extremely large memory configurations and resilient file systems.
Engineering & Design
Run applications like Autodesk AutoCAD, Revit, SOLIDWORKS, or ANSYS simulation software with the processing power and graphics memory needed for complex models and renders.
Data Science & Analysis
Process large datasets locally with the multi-core Xeon CPU and high-capacity, fast NVMe storage, ideal for machine learning prototyping, financial modeling, or genomic research.
Localization and Operating System
This system is configured for the Canadian market with a French-Canadian keyboard layout. It comes pre-installed with a full license for Windows 11 Pro for Workstations. This specialized OS edition builds upon Windows 11 Pro with features tailored for high-end workstations, including support for up to 6 TB of memory (4x the Pro edition), ReFS file system for data integrity, and expanded hardware support for professional applications.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The ThinkStation P5 utilizes a traditional tower form factor, measuring 17.56 inches in height, 6.50 inches in width, and 17.87 inches in depth (446 x 165 x 453.9 mm). Weighing approximately 41.89 lbs (19 kg), this chassis is built for durability and effective thermal management. The design facilitates straightforward access to internal components for maintenance and upgrades, supporting a professional IT deployment lifecycle.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The workstation ships with all necessary components to begin operation immediately.
Package contents include ThinkStation P5 Keyboard, ThinkStation P5. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon w3-2423 hexa-core processor (6 cores, 12 threads, 2.10 GHz) for reliable, high-performance computing.
- 64 GB of DDR5 ECC Registered memory (4800 MHz) ensures data integrity and smooth multitasking for professional applications.
- 2 TB PCIe NVMe 4.0 x4 SSD provides ultra-fast storage for operating systems, applications, and large project files.
- Dedicated graphics with 16 GB of memory accelerates visual workloads in CAD, 3D rendering, and video editing.
- Windows 11 Pro for Workstations OS includes advanced features for large memory support and professional resilience.
- Comprehensive connectivity with Gigabit Ethernet, Wi-Fi, Bluetooth, 6 USB ports (including USB-C 20Gbps), and DisplayPort.
- Tower chassis (17.56"H x 6.50"W x 17.87"D) offers excellent internal expansion for storage, memory, and add-in cards.
- French-Canadian keyboard localization and 3-year warranty with Premier NBD service provide local support and peace of mind.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA0064CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA0064CA |
| Product Name | ThinkStation P5 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w3-2423 |
| Processor Core | Hexa-core (6 Core) |
| Processor Threads | 12 |
| Processor Speed | 2.10 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor is in the Lenovo ThinkStation P5 30GA0064CA?
This workstation is powered by an Intel Xeon w3-2423 processor. It is a hexa-core CPU (6 cores) with 12 threads, a base clock speed of 2.10 GHz, and is built on the LGA-4677 socket. Xeon processors are designed for workstation and server environments, offering enhanced reliability, security features like Intel vPro, and support for ECC memory.
How much RAM does this workstation have, and can it be upgraded?
The system comes with 64 GB of DDR5 SDRAM installed. The memory is ECC (Error-Correcting Code) and Registered, which is critical for data integrity in professional computing. The motherboard has 8 total memory slots, allowing for significant expansion. The platform supports a maximum of 512 GB of RAM, so you can add more modules as your workload demands increase.
What type of storage is included, and is RAID supported?
Storage is provided by a 2 TB Solid State Drive (SSD) using the PCI Express NVMe 4.0 x4 interface. This offers significantly higher speeds than SATA-based SSDs for faster boot times, application loading, and file transfers. The system's storage controller supports both NVMe and SATA drives, and hardware RAID is supported for configurations using multiple drives. Supported RAID levels include 0 (striping for performance), 1 (mirroring for redundancy), and 5 (striping with parity).
What operating system is pre-installed?
It comes with Windows 11 Pro for Workstations pre-installed. This is a specialized edition of Windows 11 Pro that includes features for high-end hardware, such as support for extremely large memory configurations (beyond the standard Pro limit), the Resilient File System (ReFS) for data integrity, and expanded hardware support for professional-grade applications used in engineering, scientific, and creative fields.
What are the physical dimensions and form factor?
The ThinkStation P5 is a tower workstation. Its dimensions are 17.56 inches in height, 6.50 inches in width, and 17.87 inches in depth (approximately 446 mm x 165 mm x 454 mm). It weighs about 41.89 lbs (19 kg). The tower form factor provides ample internal space for excellent airflow, multiple storage drive bays, and room for full-length expansion cards, making it ideal for future upgrades.
What warranty and support are included with this workstation?
Lenovo provides a 3-year limited warranty for this ThinkStation P5. The warranty includes 3YR Premier NBD (Next Business Day) service. This means that in the event of a covered hardware failure, Lenovo will dispatch a technician with the necessary parts to your location, typically by the next business day, to perform the repair on-site, minimizing downtime for your critical work.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.10 GHz processor for everyday performance and multitasking.
