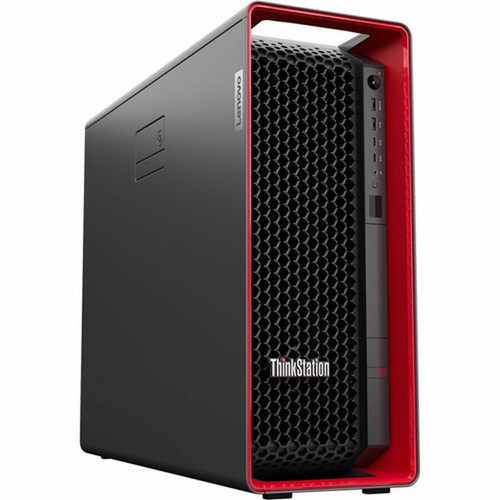

Lenovo 30GA007WUS ThinkStation P5 Workstation - Xeon w3-2435 Octa-core 3. 10 GHz - 32 GB DDR5 - 1 TB NVMe SSD - Windows 11 Pro for Workstations
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P5 is the Intel Xeon w3-2435 processor. This octa-core CPU operates at a base frequency of 3.10 GHz, supports 16 threads, and includes Intel vPro technology for enhanced security and remote management capabilities. The processor is paired with the Intel W790 chipset, which provides the foundation for the system's expansion and I/O capabilities.
Memory performance is driven by DDR5 SDRAM technology running at 4.80 GHz. The installed 32 GB configuration uses two 16 GB modules in a dual-channel arrangement across eight available slots, supporting ECC error checking for data integrity. Storage is handled by a 1 TB PCI Express NVMe 4.0 x4 solid-state drive, offering high throughput for large project files and applications.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ThinkStation P5 balances raw computational power with professional-grade reliability features. The Xeon processor and ECC memory ensure stability during extended rendering, simulation, or data analysis sessions, while the dedicated graphics acceleration handles visualization tasks efficiently.
Professional-Grade Reliability
ECC memory corrects single-bit errors, and the registered memory design improves signal integrity in multi-DIMM configurations. Combined with the Xeon platform's validated components, this workstation is built for 24/7 operation in critical environments.
- ECC error checking on all memory
- Registered DDR5 for stability
- Intel vPro for remote management
Expansion and Connectivity
With eight memory slots supporting up to 512 GB of RAM and multiple high-speed storage interfaces, the P5 can scale with project demands. The front and rear panels provide ten USB ports, including three USB-C connections with data transfer speeds up to 20 Gbps.
- Eight DDR5 DIMM slots
- PCIe NVMe 4.0 storage interface
- Multiple USB 3.2 Gen 2 and USB-C ports
Deployment / Use Cases
This workstation is purpose-built for professional environments where computational accuracy, data integrity, and application performance are non-negotiable. Its hardware profile makes it suitable for engineering firms, architectural studios, research laboratories, and media production houses.
Typical applications include computer-aided design (CAD), finite element analysis (FEA), computational fluid dynamics (CFD), 3D rendering and animation, scientific computing, and financial modeling. The Windows 11 Pro for Workstations operating system provides enhanced support for high-core-count processors and large memory configurations, optimizing the platform for these demanding workloads.
Engineering and Design
Run applications like AutoCAD, SolidWorks, or Revit with the processing power and graphics memory needed for complex assemblies and detailed models.
Scientific and Research Computing
Handle data-intensive simulations, genomic analysis, or computational research with the Xeon processor's reliability and the system's expandable memory architecture.
Localization and Operating System
This workstation is configured for English-language markets. The keyboard localization is English, and the operating system is Windows 11 Pro for Workstations with the English language pack pre-installed.
Windows 11 Pro for Workstations includes features specifically designed for high-performance computing, such as support for ReFS file system, persistent memory, and expanded hardware error handling. The OS is fully licensed and activated, ready for immediate deployment into professional IT environments.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The ThinkStation P5 utilizes a traditional tower form factor measuring 17.56 inches in height, 6.50 inches in width, and 17.87 inches in depth. With an approximate weight of 41.89 pounds, the chassis provides substantial internal space for component expansion and cooling.
The design prioritizes serviceability with tool-less access panels and clearly labeled internal components. The 1 kW power supply ensures stable power delivery even under full processor and graphics load, supporting the addition of peripheral cards and storage devices.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The workstation ships as a complete system ready for setup. The package includes the ThinkStation P5 tower unit, a keyboard, and a mouse. All necessary power cables and documentation are included.
Highlights
- Intel Xeon w3-2435 octa-core processor with vPro technology
- 32 GB of DDR5 ECC registered memory (expandable to 512 GB)
- 1 TB PCIe NVMe 4.0 x4 solid-state drive for fast storage
- Dedicated graphics controller with 20 GB of dedicated memory
- Windows 11 Pro for Workstations operating system (English)
- Comprehensive connectivity: Gigabit Ethernet, Wi-Fi, Bluetooth, 10 USB ports
- Professional 3-year onsite warranty with Premier Support
- Energy-efficient design with ENERGY STAR 8.0 and EPEAT Gold certifications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA007WUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA007WUS |
| Product Name | ThinkStation P5 30GA007WUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w3-2435 |
| Processor Core | Octa-core (8 Core) |
| Processor Threads | 16 |
| Processor Speed | 3.10 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 2 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | No |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 20 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 30GA007WUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor is installed in this ThinkStation P5 workstation?
This workstation features the Intel Xeon w3-2435 processor. This is an octa-core CPU with 16 threads, operating at a base frequency of 3.10 GHz. It uses the Socket LGA-4677 and includes Intel vPro technology for enhanced security and remote management capabilities.
How much memory is installed, and can it be expanded?
The system comes standard with 32 GB of DDR5 SDRAM, configured as two 16 GB modules. The motherboard has eight total memory slots, supporting a maximum of 512 GB of DDR5 memory. The installed memory features ECC (Error-Correcting Code) and registered signal processing for improved reliability in professional applications.
What type of storage does this workstation use?
Primary storage is a 1 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This NVMe SSD offers significantly higher data transfer speeds compared to traditional SATA drives, reducing load times for applications and large project files. The storage controller supports both NVMe and Serial ATA interfaces for additional drive expansion.
What operating system is pre-installed?
The workstation ships with Windows 11 Pro for Workstations pre-installed and activated. This is the English-language version. Windows 11 Pro for Workstations includes features optimized for high-performance computing, such as support for very large memory configurations and enhanced hardware error resilience.
What are the physical dimensions and form factor?
The ThinkStation P5 uses a tower chassis measuring 17.56 inches high, 6.50 inches wide, and 17.87 inches deep. It weighs approximately 41.89 pounds. This form factor provides ample internal space for additional components like storage drives, expansion cards, and enhanced cooling solutions.
What warranty and support are included with this workstation?
Lenovo provides a 3-year limited warranty with onsite service. This includes the 3Y Premier Support upgrade, which offers priority technical support and onsite repair if needed. The warranty covers parts and labor, ensuring minimal downtime for professional users.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 3.10 GHz processor for everyday performance and multitasking.
