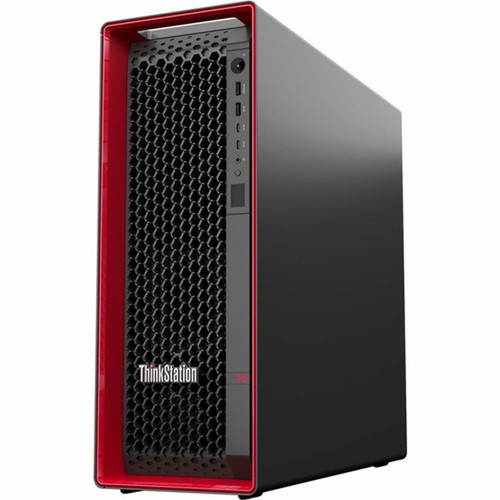

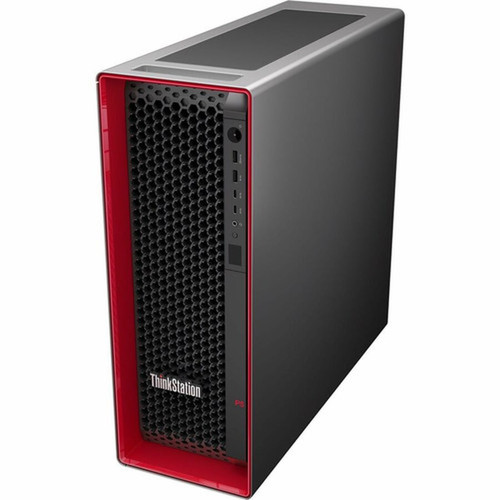

Lenovo 30GA0087CA ThinkStation P5 Workstation - Xeon w5-2455 x 12-Core 3. 2GHz - 64GB DDR5 - 2TB NVMe SSD - Tower - Windows 11 Pro for Workstations
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ThinkStation P5 lies the Intel W790 chipset paired with a Xeon w5-2455X processor featuring a 3.20 GHz base clock and Socket LGA-4677 compatibility. This combination supports advanced memory configurations with ECC error checking and registered signal processing for enhanced reliability in mission-critical environments.
Storage performance is maximized through PCI Express NVMe 4.0 x4 interface technology, delivering sequential read/write speeds that accelerate data-intensive workflows. The system includes hardware RAID 0, 1, and 5 support through Serial ATA/600 and NVMe controllers, providing data protection options for professional users.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The ThinkStation P5 combines workstation-class components with Lenovo's engineering expertise to deliver exceptional stability and performance. The dedicated 24 GB graphics memory enables smooth visualization of complex models and high-resolution displays without taxing system RAM.
Professional-Grade Memory
DDR5 ECC Registered memory ensures data accuracy and system stability during extended computational sessions, with eight DIMM slots supporting future expansion to 512 GB.
- Error Checking and Correction
- Registered signal processing
- 4.80 GHz clock speed
Comprehensive Connectivity
Six USB ports include three USB 3.2 Gen 2 ports and one USB-C 3.2 Gen 2x2 port for high-speed peripheral connections, plus DisplayPort output for monitor connectivity.
- USB-C 3.2 Gen 2x2
- DisplayPort support
- Gigabit Ethernet
Enterprise Management Features
Windows 11 Pro for Workstations includes advanced capabilities for professional users, while the Intel Xeon platform offers built-in security and remote management capabilities.
- Built-in security features
- Remote management
- Professional OS features
Deployment / Use Cases
The ThinkStation P5 excels in environments where computational accuracy and performance cannot be compromised. Its tower form factor provides ample internal space for additional storage drives, expansion cards, or specialized hardware accelerators.
Engineering and architectural firms will appreciate the system's ability to handle CAD/CAM software and finite element analysis. Media production studios can leverage the dedicated graphics memory and fast storage for video editing and 3D animation. Financial institutions benefit from the ECC memory protection when running complex risk modeling and algorithmic trading applications.
Engineering & Design Workflows
Run Autodesk AutoCAD, Siemens NX, or Dassault Systèmes SOLIDWORKS with smooth viewport performance and rapid model regeneration.
Scientific Research & Data Analysis
Process large datasets in MATLAB, Python, or R while maintaining computational accuracy through ECC memory protection.
Localization and Operating System
This workstation ships with Windows 11 Pro for Workstations pre-installed, providing a 64-bit operating environment optimized for professional applications. The Pro for Workstations edition includes support for ReFS file system, persistent memory, and expanded hardware support compared to standard Windows 11 Pro.
Keyboard localization is configured for French (Canada) users, with appropriate key legends and language settings. The system maintains full compatibility with English-language software while providing the physical keyboard layout preferred by Canadian French-speaking professionals.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The tower chassis measures 17.56 inches in height, 6.50 inches in width, and 17.87 inches in depth (446 × 165 × 453.90 mm), fitting comfortably under standard desks or in workstation enclosures. Weighing approximately 41.89 pounds (19 kg), the system offers substantial internal expansion while remaining manageable for IT deployment.
The tower design provides excellent thermal management for sustained high-performance operation, with multiple cooling zones maintaining optimal component temperatures during extended computational tasks. The form factor accommodates additional storage drives, expansion cards, or specialized computing modules as workflow requirements evolve.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The workstation ships complete with all essential components for immediate deployment in professional environments.
Highlights
- Intel Xeon w5-2455X processor with 12 cores and 24 threads at 3.20 GHz
- 64 GB DDR5 ECC Registered memory expandable to 512 GB across eight slots
- 2 TB PCI Express NVMe 4.0 x4 SSD for rapid storage performance
- Dedicated 24 GB graphics memory for professional visualization workloads
- Windows 11 Pro for Workstations 64-bit operating system
- French (Canada) keyboard localization for Canadian users
- Intel W790 chipset with hardware RAID 0, 1, 5 support
- Gigabit Ethernet, Wireless LAN, and Bluetooth connectivity
- Tower form factor with dimensions 17.56" H × 6.50" W × 17.87" D
- 3 Year Premier NBD warranty with onsite upgrade option
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA0087CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA0087CA |
| Product Name | ThinkStation P5 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w5-2455X |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Display & Graphics | |
| Graphics Memory Capacity | 24 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C 3.2 Gen 2x2 |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Year Premier NBD, Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does the Lenovo ThinkStation P5 30GA0087CA use?
This workstation features an Intel Xeon w5-2455X processor with 12 physical cores and 24 threads operating at a base clock speed of 3.20 GHz. The Xeon platform includes built-in security features and remote management capabilities essential for professional environments.
How much memory is installed and what is the maximum supported?
The system comes with 64 GB of DDR5 SDRAM installed, utilizing ECC (Error Checking and Correction) and Registered signal processing for enhanced reliability. Eight memory slots support expansion up to 512 GB total capacity, with the memory operating at 4.80 GHz clock speed.
What type of storage does this workstation include?
Storage is provided by a 2 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface for maximum throughput. The system supports hardware RAID configurations (levels 0, 1, and 5) through Serial ATA/600 and NVMe controllers for data protection options.
What operating system is pre-installed on this ThinkStation?
Windows 11 Pro for Workstations 64-bit comes pre-installed, offering advanced features beyond standard Windows 11 Pro including support for ReFS file system, persistent memory, and expanded hardware capabilities tailored for professional computing workloads.
What connectivity options are available on this workstation?
The system includes six USB ports total: two USB 2.0 ports, three USB 3.2 Gen 2 ports, and one USB-C 3.2 Gen 2x2 port. Networking features include Gigabit Ethernet, Wireless LAN, and Bluetooth. A DisplayPort output supports monitor connectivity.
What warranty coverage does this Lenovo workstation include?
Lenovo provides a 3 Year Premier NBD (Next Business Day) warranty with onsite service upgrade. This coverage includes parts and labor with next-business-day response for qualified issues, ensuring minimal downtime for professional users.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 3.20 GHz processor for everyday performance and multitasking.
