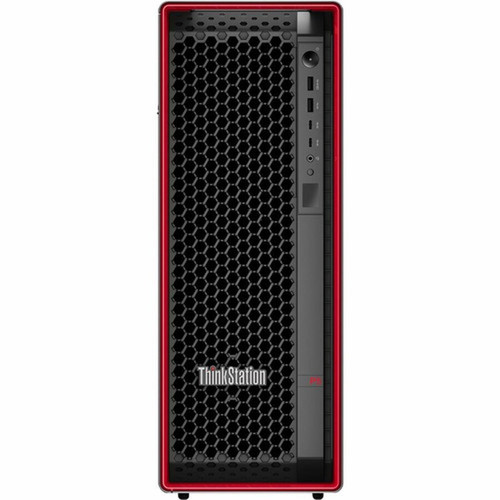

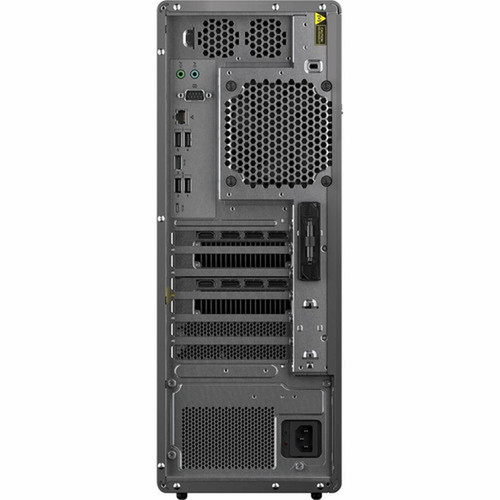

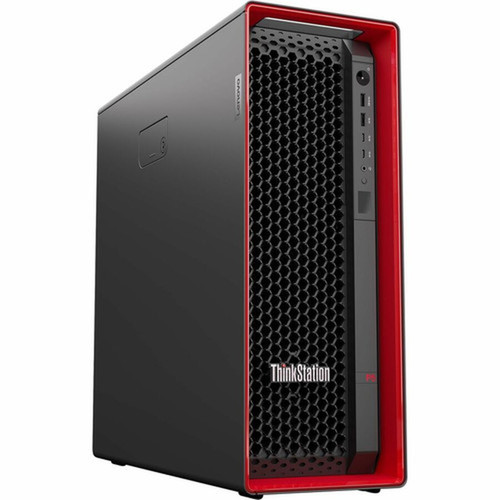

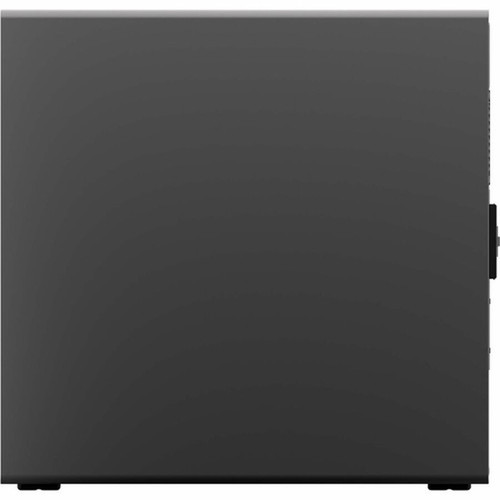

Lenovo 30GA0089US ThinkStation P5 Workstation - Intel Xeon w3-2435 3. 1 GHz Octa-core - 64 GB DDR5 ECC - 2 TB NVMe SSD - Windows 11 Pro for
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P5 is the Intel Xeon w3-2435, an octa-core processor operating at 3.10 GHz with support for 16 threads. This CPU is paired with the Intel W790 chipset, providing a robust platform for professional applications. The inclusion of Intel vPro Technology enables enhanced security, remote management, and hardware-level stability features critical for business IT environments.
Memory performance is driven by 64 GB of DDR5 SDRAM configured across four 16 GB modules. The memory subsystem operates at 4800 MHz and features Error-Correcting Code (ECC) with registered signal processing, ensuring data integrity during extended computational sessions. Eight total DIMM slots allow for expansion up to 512 GB as workload demands grow.
Storage is handled by a 2 TB solid-state drive utilizing the PCI Express NVMe 4.0 x4 interface for exceptional read/write speeds. The system's dedicated graphics controller, with 20 GB of dedicated memory, accelerates visualization, rendering, and GPU-accelerated compute tasks without relying on system RAM.
Key Product Advantages
The ThinkStation P5 combines certified components, a purpose-built thermal design, and professional validation to handle sustained compute-intensive tasks. Its tower form factor provides ample internal space for additional storage drives, expansion cards, or cooling solutions, making it a versatile long-term investment for technical professionals.
Professional-Grade Reliability
The Xeon platform with ECC memory and a 1 kW power supply ensures stable operation under continuous heavy loads, minimizing downtime in critical workflows.
- Intel Xeon processor with vPro
- ECC registered DDR5 memory
- 1 kW robust power supply
Expansion Ready Design
With 8 memory slots supporting up to 512 GB and multiple high-speed storage and expansion options, this workstation grows with your project requirements.
- 8 DDR5 DIMM slots
- PCIe NVMe 4.0 storage
- Multiple USB-C and USB 3.2 ports
Deployment / Use Cases
This workstation is deployed in environments where application performance, data accuracy, and system reliability directly impact productivity and outcomes. It serves as a primary compute node for individual power users or as a connected node in a larger render farm or simulation cluster.
Common deployment scenarios include architectural and engineering firms, research laboratories, financial institutions running complex models, and post-production studios managing high-resolution media. The built-in Gigabit Ethernet and wireless connectivity facilitate easy integration into both wired office networks and flexible workspace setups.
Engineering & Simulation
Ideal for CAD/CAM, finite element analysis (FEA), computational fluid dynamics (CFD), and electronic design automation (EDA) where precision and stability are paramount.
Data Science & AI Development
The high core count, large memory capacity, and fast NVMe storage accelerate data preprocessing, model training, and algorithm development workflows.
Media & Entertainment Production
Supports 3D animation, visual effects (VFX), video editing, and audio post-production with the dedicated graphics and responsive storage for large asset files.
Localization and Operating System
The system comes pre-installed with Windows 11 Pro for Workstations in the English language. This specialized edition of Windows includes support for ReFS file systems, persistent memory, and expanded hardware support, aligning with the workstation's professional capabilities.
Keyboard localization is configured for English (US) layout. The operating system is fully licensed and activated, ready for immediate domain joining, policy management, and deployment within an enterprise IT infrastructure.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The ThinkStation P5 utilizes a traditional tower chassis measuring 17.56 inches in height, 6.50 inches in width, and 17.87 inches in depth. With an approximate weight of 41.89 pounds, it is designed for placement under or beside a desk in an office or lab setting.
The chassis construction supports tool-less access for maintenance and upgrades. Its form factor provides standard mounting points for compatibility with workstation desks and offers sufficient internal airflow to maintain optimal thermal performance during extended high-utilization periods.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The workstation ships with all necessary components to begin operation immediately.
Package contents include ThinkStation P5 30GA0089US Keyboard Mouse, ThinkStation P5 30GA0089US. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon w3-2435 octa-core processor at 3.10 GHz with vPro Technology for managed security
- 64 GB of high-speed DDR5 ECC registered memory (expandable to 512 GB) for data-intensive applications
- 2 TB NVMe PCIe 4.0 SSD delivers fast boot times, rapid file access, and ample project storage
- Windows 11 Pro for Workstations pre-installed with English language and keyboard localization
- Dedicated graphics with 20 GB of memory accelerates visualization, rendering, and GPU compute tasks
- Comprehensive connectivity: 10 USB ports (including USB-C), Gigabit Ethernet, Wi-Fi, and Bluetooth
- Robust 1 kW power supply ensures stable operation under maximum load conditions
- Tower chassis (17.56"H x 6.50"W x 17.87"D) offers space for internal expansion and upgrades
- 3-year limited warranty with onsite service included for reliable long-term support
- EPEAT Gold, ENERGY STAR 8.0, TCO Certified 9.0, and RoHS compliance for sustainable IT
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA0089US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA0089US |
| Product Name | ThinkStation P5 30GA0089US |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w3-2435 |
| Processor Core | Octa-core (8 Core) |
| Processor Threads | 16 |
| Processor Speed | 3.10 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | No |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 20 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 30GA0089US Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor is in the Lenovo ThinkStation P5 30GA0089US?
This workstation is equipped with an Intel Xeon w3-2435 processor. It is an octa-core (8-core) CPU operating at a base speed of 3.10 GHz, supporting 16 threads. It features Intel vPro Technology for enhanced security and remote manageability, and uses the Socket LGA-4677 interface.
How much memory does it have, and can I upgrade it?
The system comes standard with 64 GB of DDR5 SDRAM, configured as four 16 GB modules. It utilizes Error-Correcting Code (ECC) and registered signal processing for data integrity. There are 8 total memory slots, allowing for expansion up to a maximum of 512 GB by adding compatible DDR5 ECC registered DIMMs.
What type of storage is included?
Storage is provided by a 2 TB solid-state drive (SSD). It uses the PCI Express NVMe 4.0 x4 interface, which offers significantly higher sequential read and write speeds compared to SATA-based SSDs, resulting in faster system boot, application launches, and file transfers for large datasets.
What operating system is pre-installed?
It comes with Windows 11 Pro for Workstations pre-installed in English. This is a specialized edition of Windows 11 Pro that includes features like support for ReFS, persistent memory, and expanded hardware support, making it ideal for demanding professional and enterprise workstation environments.
What are the key connectivity options?
Connectivity includes a total of 10 USB ports: 2 USB 2.0, 5 USB 3.2 Gen 2, 2 USB-C 3.2 Gen 2, and 1 USB-C port supporting 20 Gbps (USB 3.2 Gen 2x2). For networking, it has Gigabit Ethernet, integrated wireless LAN (Wi-Fi), and Bluetooth. A dedicated graphics controller with 20 GB of memory is also included.
What is the warranty and support coverage?
Lenovo provides a 3-year limited warranty for this workstation. The base warranty includes onsite service, meaning a technician will come to your location for repairs. There is also an option to upgrade to 3-year Premier Support, which may offer faster response times and additional benefits beyond the standard onsite coverage.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 3.10 GHz processor for everyday performance and multitasking.
