Lenovo 30E00049CA ThinkStation P620 Workstation - AMD Ryzen Threadripper PRO 3955WX 16-Core 3. 9GHz - 32GB DDR4 RAM - 512GB NVMe SSD - Windows 10 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P620 is the AMD Ryzen Threadripper PRO 3955WX, a hexadeca-core (16-core) processor operating at 3.90 GHz. This CPU platform supports professional reliability features and is paired with 32 GB of DDR4 memory, leveraging faster data transfer rates for improved overall system responsiveness. Storage is handled by a 512 GB NVMe SSD connected via the PCI Express interface, delivering significantly higher throughput than SATA-based solutions.
Graphics are supported by a dedicated GPU with 5 GB of memory, suitable for CAD, 3D visualization, and moderate GPU-accelerated workloads. The system includes a comprehensive set of I/O ports: two USB 2.0 ports and two USB 3.2 Gen 2 Type-C ports for high-speed peripheral connectivity. Networking is provided through a standard Ethernet interface supporting 10 Mbps data transfer speeds. Power is supplied by a robust 1 kW power supply unit compatible with both 120 V and 230 V AC inputs, ensuring stable operation under heavy loads.
Key Product Advantages
This workstation combines high-core-count processing, substantial memory bandwidth, and fast NVMe storage to tackle demanding professional applications efficiently. The tower form factor offers excellent internal expandability for adding additional storage drives, memory modules, or specialized expansion cards as project requirements evolve.
Professional-Grade Processing
The 16-core AMD Ryzen Threadripper PRO 3955WX processor provides the parallel compute power needed for rendering, simulation, and complex computational tasks, reducing processing times and improving productivity.
- 16 cores and 32 threads
- 3.90 GHz base clock speed
- AMD PRO technologies for reliability
Fast Storage and Memory
With 32 GB of DDR4 RAM and a 512 GB NVMe SSD, the system ensures quick data access and smooth operation of memory-intensive applications, from large datasets to multi-layered design files.
- PCI Express NVMe interface for high throughput
- DDR4 technology for improved performance
- Expandable memory up to 512 GB
Comprehensive Connectivity
The inclusion of USB 3.2 Gen 2 Type-C ports alongside traditional USB 2.0 ports provides flexibility for connecting modern high-speed peripherals, external storage, and displays.
- Two USB 3.2 Gen 2 Type-C ports
- Two USB 2.0 ports
- Ethernet for network connectivity
Deployment / Use Cases
The ThinkStation P620 30E00049CA is ideally suited for professional environments where computational power, reliability, and expandability are critical. Its balanced configuration of CPU, memory, and storage makes it a versatile platform for a wide range of technical and creative workloads.
In engineering and product design, the workstation can handle CAD software, finite element analysis (FEA), and computational fluid dynamics (CFD) simulations. For media and entertainment professionals, it accelerates video editing, 3D animation rendering, and visual effects processing. Research and data science teams will benefit from its ability to process large datasets, run complex algorithms, and manage virtualized environments. The French-localized Windows 10 Pro operating system and keyboard make it ready for deployment in French-speaking offices, educational institutions, and government agencies without additional localization steps.
Engineering and Design
Run demanding CAD, CAM, and CAE applications like Autodesk AutoCAD, SolidWorks, or ANSYS with the multi-core processor and professional graphics support.
Content Creation and Media
Accelerate video editing in Adobe Premiere Pro, 3D rendering in Blender or Cinema 4D, and audio production with the fast storage and substantial memory.
Localization and Operating System
This workstation is configured for immediate use in French-speaking regions. It comes pre-installed with Windows 10 Pro 64-bit with the French language pack applied, including the user interface, system messages, and help files. The included keyboard is also localized with a French AZERTY layout, ensuring a seamless out-of-box experience for users accustomed to French input methods.
Windows 10 Pro provides advanced features essential for professional and business use, including BitLocker encryption for data security, Remote Desktop for remote access, and support for joining Active Directory domains. The 64-bit architecture fully utilizes the system's 32 GB of RAM and the multi-core processor, enabling efficient operation of modern 64-bit applications.
Physical Profile

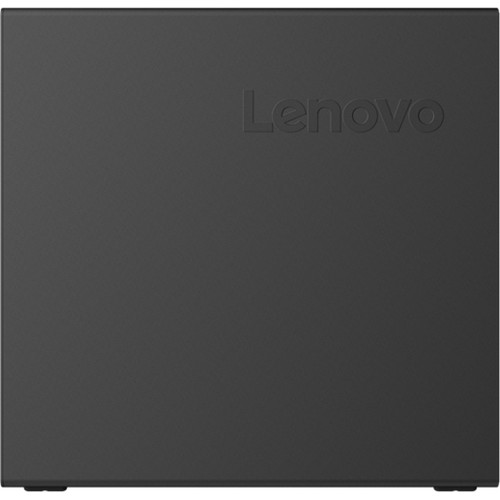

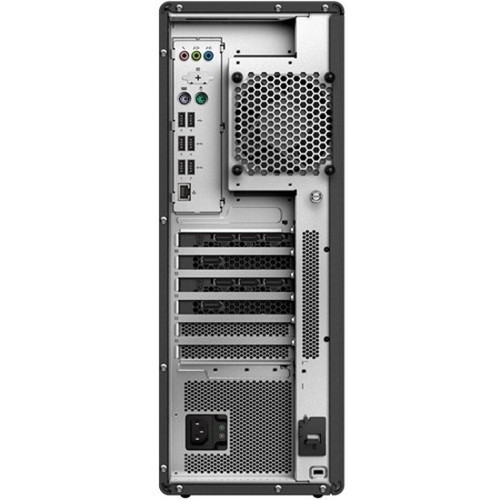

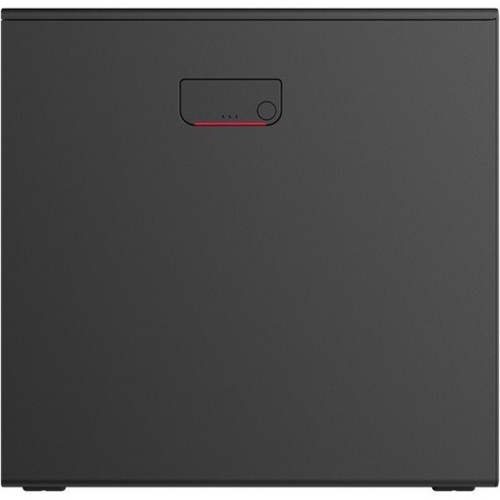

Housed in a durable tower chassis with a Graphite Black finish, the ThinkStation P620 measures 17.56 inches in height, 6.50 inches in width, and 17.91 inches in depth (446 mm x 165 mm x 455 mm). The tower form factor provides ample internal space for cooling and future expansion, such as adding additional hard drives, PCIe cards, or upgrading the cooling system. With an approximate weight of 52.91 lb (24 kg), the workstation is designed for stationary placement in office, lab, or studio environments. The standard tower design is cost-effective, highly configurable, and supports easy access to internal components for maintenance and upgrades.
- Width
- 6.50" (165 mm)
- Depth
- 17.91" (455 mm)
- Height
- 17.56" (446 mm)
- Weight
- 52.91 lb (24000 g)
What's in the Box
The workstation arrives ready for setup with all necessary components included.
Highlights
- AMD Ryzen Threadripper PRO 3955WX 16-core processor at 3.90 GHz for high parallel compute performance
- 32 GB of DDR4 SDRAM installed, expandable up to 512 GB for large dataset handling
- 512 GB PCI Express NVMe solid-state drive for fast boot times and application loading
- Windows 10 Pro 64-bit pre-installed in French, fully localized for professional use
- French AZERTY keyboard included for immediate usability in French-speaking environments
- Tower form factor in Graphite Black offering high internal expandability and easy maintenance
- Includes USB 3.2 Gen 2 Type-C ports for high-speed peripheral connectivity
- 1 kW power supply ensures stable operation under heavy computational loads
- Integrated DVD-Writer provides legacy optical media support
- Backed by a 3-year limited warranty from Lenovo for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30E00049CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P620 |
| Product Model | 30E00049CA |
| Product Name | ThinkStation P620 30E00049CA Workstations |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Model | 3955WX |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 3.90 GHz |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe |
| Optical Drive Type | DVD-Writer |
| Display & Graphics | |
| Graphics Memory Capacity | 5 GB |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Input Devices | |
| Keyboard Localization | French |
| Interfaces/Ports | |
| Number of USB 2.0 Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 USB 3.2 Gen 2 (Type C) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 10 Pro |
| Operating System Language | French |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Product Color | Graphite Black |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.91" (455 mm) |
| Weight (Approximate) | 52.91 lb (24000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P620 30E00049CA Workstations Lenovo Slim New F5 USB Keyboard USB Optical Mouse |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processor does this Lenovo ThinkStation P620 workstation use?
This workstation is powered by the AMD Ryzen Threadripper PRO 3955WX processor. It is a hexadeca-core (16-core) CPU with a base clock speed of 3.90 GHz, designed for professional workloads that benefit from high parallel processing power, such as 3D rendering, simulation, and complex data analysis.
How much memory is installed, and can it be expanded?
The system comes with 32 GB of DDR4 SDRAM installed. It supports a maximum memory capacity of 512 GB, providing significant headroom for expansion. This allows users to upgrade the RAM to handle more demanding applications, larger datasets, or increased multitasking requirements in the future.
What type of storage does this workstation have?
Storage is provided by a 512 GB solid-state drive (SSD) that uses the PCI Express NVMe interface. This offers much faster data transfer speeds compared to traditional SATA SSDs or hard drives, resulting in quicker system boot times, faster application launches, and reduced file load times in professional software.
Which operating system is pre-installed, and is it localized?
The workstation comes with Windows 10 Pro 64-bit pre-installed. The operating system is fully localized in French, including the user interface, system dialogs, and help files. This configuration is ready for immediate deployment in French-speaking business, educational, or government environments.
What connectivity ports are available on this ThinkStation?
For connectivity, the workstation includes two USB 2.0 ports and two USB 3.2 Gen 2 Type-C ports. The USB Type-C ports support high-speed data transfer and can be used for connecting modern peripherals, external storage, or displays. The system also features a standard Ethernet port for wired network connectivity.
What is included in the box with this workstation?
The package contains the ThinkStation P620 30E00049CA tower workstation itself, a Lenovo Slim New F5 USB keyboard with a French AZERTY layout, a USB optical mouse, the necessary power cable, and relevant documentation. The system is covered by a 3-year limited warranty from Lenovo for added reliability.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 3.90 GHz processor for everyday performance and multitasking.
