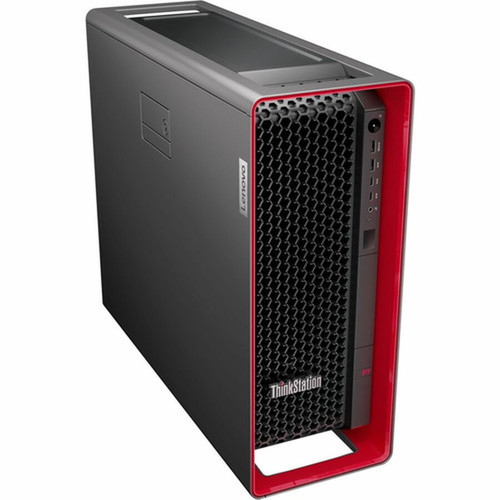

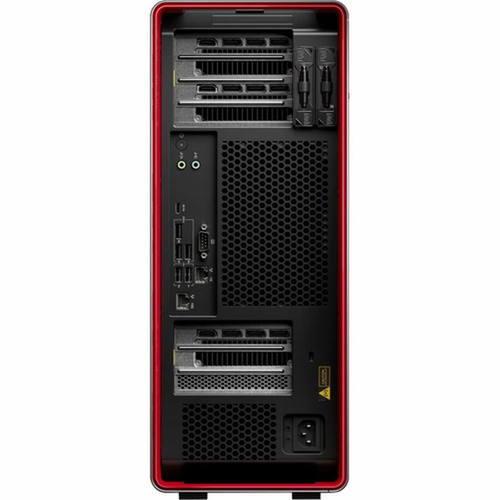

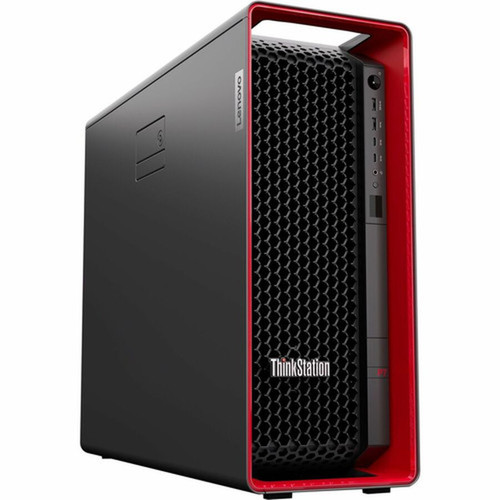

Lenovo 30F30074CA ThinkStation P7 Workstation - Xeon w7-3465 x 28-Core - 64 GB RAM - 2 TB NVMe SSD - Windows 11 Pro for Workstations - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ThinkStation P7 is the Intel Xeon w7-3465X processor, operating at 2.50 GHz with 28 physical cores and 56 threads via Hyper-Threading. This CPU uses the Socket LGA-4677 interface and is paired with the Intel W790 chipset, providing a robust platform for professional workloads.
Memory performance is driven by DDR5 SDRAM technology running at 4.80 GHz with ECC error checking and registered signal processing for enhanced data integrity. The system includes 8 memory slots supporting expansion up to 1 TB total capacity. Storage is handled by a 2 TB PCI Express NVMe 4.0 x4 solid-state drive with NVMe and SATA/600 controller support, including hardware RAID 0, 1, and 5 capabilities for data protection and performance optimization.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ThinkStation P7 combines workstation-class components with Lenovo's engineering expertise to deliver reliable performance for professional environments. Its balanced configuration addresses the core requirements of technical users who need both computational power and system stability.
Professional-Grade Processing
The Xeon w7-3465X processor provides 28 cores and 56 threads for parallel processing of complex calculations, simulations, and rendering tasks. With Intel's workstation architecture, it includes built-in security features and remote management capabilities essential for business deployment.
- 28-core Xeon processor
- 56 threads for parallel workloads
- Built-in security and management
High-Speed Memory and Storage
DDR5 memory technology delivers efficient data movement across CPU cycles, while the 2 TB NVMe SSD provides fast access to large project files, datasets, and applications. The hardware RAID support enables data protection configurations without sacrificing performance.
- DDR5 SDRAM at 4.80 GHz
- 2 TB NVMe SSD
- RAID 0, 1, 5 support
Comprehensive Connectivity
Dual Ethernet with both Gigabit and 10 Gigabit ports supports high-speed network transfers for collaborative work environments. Wireless LAN and Bluetooth provide flexible connectivity options, while multiple USB ports including USB-C 3.2 Gen 2x2 offer modern peripheral support.
- 10Gb Ethernet for fast transfers
- Wi-Fi and Bluetooth
- Multiple USB-C ports
Deployment / Use Cases
The ThinkStation P7 is engineered for professional environments where computational performance and system reliability are critical. Its configuration supports demanding applications across multiple technical disciplines.
In engineering and design workflows, the 28-core Xeon processor accelerates finite element analysis, computational fluid dynamics, and 3D rendering tasks. The dedicated graphics memory with 20 GB capacity handles visualization of complex models and assemblies in CAD and BIM software.
For scientific research and data science, the combination of high core count, large memory capacity, and fast NVMe storage enables processing of large datasets, statistical modeling, and machine learning workloads. The ECC memory ensures data integrity during extended computations.
Engineering and Design
Supports CAD, CAM, CAE applications with reliable performance for modeling, simulation, and visualization tasks.
Media Production
Handles video editing, color grading, and visual effects work with the processing power needed for high-resolution timelines.
Localization and Operating System
This workstation ships with Windows 11 Pro for Workstations pre-installed, providing a 64-bit operating system optimized for professional use cases. The Workstations edition includes features like support for extremely large memory configurations, faster file sharing, and enhanced reliability for demanding applications.
The included keyboard features French (Canada) localization with appropriate key legends and layout for Canadian French users. This localization extends to the operating system interface and input methods, ensuring a seamless experience for French-speaking professionals in Canada.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The tower form factor measures 17.10 inches in height, 6.89 inches in width, and 20 inches in depth, providing substantial internal space for components and cooling. Weighing approximately 54 pounds, the chassis is constructed for durability in professional environments while remaining accessible for maintenance and upgrades.
The tower design supports easy customization with straightforward access to internal bays and expansion slots. This physical format accommodates additional storage drives, expansion cards, and cooling solutions as workload requirements evolve over time.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 54.01 lb (24500 g)
What's in the Box
The workstation package includes the ThinkStation P7 tower system with all installed components, plus a ThinkStation P7 keyboard with French (Canada) localization. All necessary power cables and documentation are included for immediate deployment.
Highlights
- Intel Xeon w7-3465X processor with 28 cores and 56 threads for parallel processing
- 64 GB DDR5 SDRAM ECC registered memory running at 4.80 GHz
- 2 TB PCI Express NVMe 4.0 x4 solid-state drive for fast storage
- Windows 11 Pro for Workstations 64-bit operating system
- Dual Ethernet with Gigabit and 10 Gigabit connectivity
- Wireless LAN and Bluetooth for flexible networking
- 10 USB ports including USB-C 3.2 Gen 2x2
- 20 GB dedicated graphics memory for visualization workloads
- Tower form factor with easy upgrade access
- 3-year limited warranty with next-business-day support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30F30074CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P7 |
| Product Model | 30F30074CA |
| Product Name | ThinkStation P7 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w7-3465X |
| Processor Core | Octacosa-core (28 Core) |
| Processor Threads | 56 |
| Processor Speed | 2.50 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Display & Graphics | |
| Graphics Memory Capacity | 20 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 2 x USB-C 3.2 Gen 2 |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 54.01 lb (24500 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P7 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this ThinkStation P7 workstation use?
This workstation features the Intel Xeon w7-3465X processor with 28 physical cores and 56 threads. It operates at a base frequency of 2.50 GHz using the Socket LGA-4677 interface and is paired with the Intel W790 chipset for workstation-class performance in demanding computational applications.
How much memory is installed and what is the maximum supported?
The system comes with 64 GB of DDR5 SDRAM installed, utilizing ECC error checking and registered signal processing for enhanced data integrity. It includes 8 memory slots that support expansion up to a maximum of 1 TB total system memory, allowing for significant future upgrades as workload requirements increase.
What type of storage does this workstation include?
Storage is provided by a 2 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface for high-speed data transfer. The system supports both NVMe and Serial ATA/600 controller types and includes hardware RAID support for levels 0, 1, and 5 to enable performance optimization and data protection configurations.
What networking capabilities does this workstation offer?
The ThinkStation P7 provides comprehensive networking with both Gigabit Ethernet and 10 Gigabit Ethernet ports for high-speed wired connections. It also includes wireless LAN for Wi-Fi connectivity and Bluetooth for peripheral connections. This combination supports flexible deployment in various office and studio environments.
What operating system is pre-installed on this workstation?
The workstation ships with Windows 11 Pro for Workstations 64-bit pre-installed. This specialized edition includes features optimized for professional use cases, such as support for extremely large memory configurations, faster file sharing capabilities, and enhanced reliability features for demanding applications.
What warranty coverage does this Lenovo workstation include?
Lenovo provides a 3-year limited warranty for this ThinkStation P7 workstation. The warranty includes 3YR Premier NBD (next business day) support service, ensuring prompt technical assistance and parts replacement when needed to minimize downtime in professional environments.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.50 GHz processor for everyday performance and multitasking.
