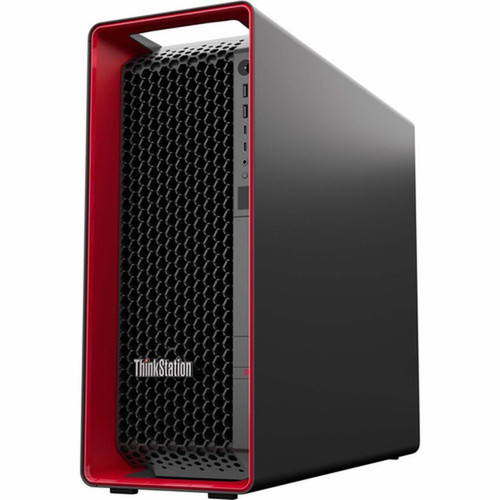

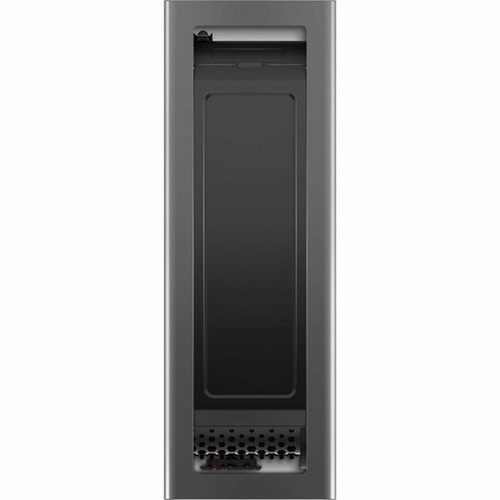

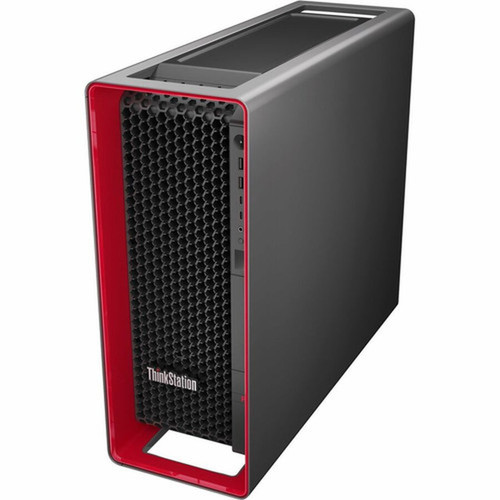

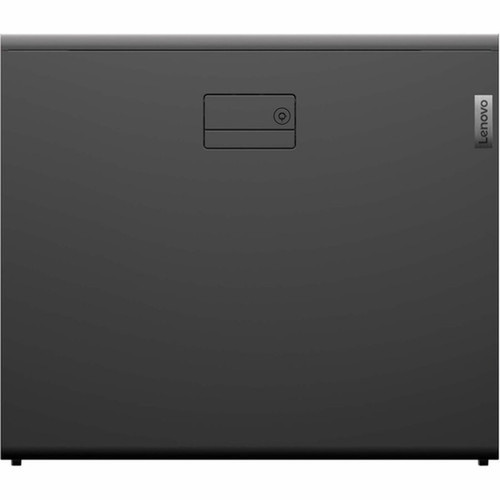

Lenovo 30F30075US ThinkStation P7 Workstation - Xeon w5-3425 12-Core 3. 2GHz - 64GB DDR5 - 2TB NVMe SSD - 24GB Graphics - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This workstation leverages the Intel W790 chipset and supports a single Xeon w5-3425 processor running at 3.2GHz with Intel vPro technology for enhanced security and remote management. Memory is configured as 64GB across four 16GB DDR5 modules, operating at 4.8GHz with error-correcting code (ECC) and registered signal processing for data integrity in critical environments.
Storage is handled by a 2TB PCI Express NVMe 4.0 x4 solid-state drive, offering high-speed data transfer via a Serial ATA/NVMe controller. The system includes one dedicated graphics controller with 24GB of memory, suitable for GPU-accelerated workflows.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The ThinkStation P7 combines enterprise-grade reliability with workstation-class performance, making it ideal for professionals who require uncompromising system stability and expansion headroom.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Expansion Ready, Professional Connectivity.
Expansion Ready
With eight memory slots supporting up to 1TB of DDR5 RAM and multiple high-speed storage interfaces, this workstation scales to meet growing data and application demands.
- 8 DDR5 slots
- 1TB max memory
- PCIe NVMe 4.0 support
Professional Connectivity
Dual Ethernet (Gigabit and 10Gb) ensures low-latency network performance, while a comprehensive set of USB ports, including USB-C 3.2 Gen 2x2, supports modern peripherals and fast data transfers.
- 10Gb Ethernet
- USB-C 20Gbps
- Wi-Fi & Bluetooth
Deployment / Use Cases
This workstation is designed for environments where computational power, data accuracy, and system uptime are non-negotiable. Its hardware profile suits intensive tasks that benefit from high core counts, large memory bandwidth, and dedicated graphics memory.
Common deployments include engineering simulation suites, financial modeling platforms, media production studios, and scientific research applications. The inclusion of ECC memory and a robust power supply makes it reliable for 24/7 operation in lab or office settings.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Engineering & Design
Run CAD, CAE, and rendering software with the Xeon processor and dedicated graphics, handling complex models and simulations efficiently.
Data Science & Analysis
Process large datasets and machine learning workloads using the 12-core CPU and fast NVMe storage, reducing computation times.
Localization and Operating System
The system ships with Windows 11 Pro for Workstations pre-installed in English, providing advanced features like support for up to 4 CPUs and 6TB of memory, ReFS file system, and persistent memory. The keyboard is localized for English (US) layouts, ensuring compatibility with standard input devices in North American markets.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
Housed in a tower chassis measuring 17.1 inches high, 6.89 inches wide, and 20 inches deep, the ThinkStation P7 offers a compact footprint for a workstation of its capability. Weighing approximately 54 pounds, it is built with durable materials and includes a 1.4 kW power supply to support high-performance components and future upgrades.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 17.10" (434.40 mm), 6.89" (175 mm), 20" (508 mm), 54.01 lb (24500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 54.01 lb (24500 g)
What's in the Box
This workstation arrives ready for setup with all essential components included.
Package contents include ThinkStation P7 30F30075US Keyboard Mouse, ThinkStation P7 30F30075US. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon w5-3425 12-core processor with 3.2GHz speed and vPro technology
- 64GB DDR5 ECC Registered memory (expandable to 1TB) for heavy multitasking
- 2TB PCIe NVMe 4.0 SSD delivers fast boot times and rapid data access
- Dedicated 24GB graphics controller accelerates visual and compute workloads
- Windows 11 Pro for Workstations OS with English language support
- Dual Ethernet (Gigabit and 10Gb) plus Wi-Fi and Bluetooth connectivity
- 10 USB ports including USB-C 3.2 Gen 2x2 for high-speed peripherals
- 1.4 kW power supply ensures stable operation under full load
- 3-year onsite warranty with Premier Support upgrade options
- EPEAT Gold and ENERGY STAR 8.0 certifications for environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30F30075US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P7 |
| Product Model | 30F30075US |
| Product Name | ThinkStation P7 30F30075US |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w5-3425 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA,NVMe |
| RAID Supported | No |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 24 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C® 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 54.01 lb (24500 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P7 30F30075US Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkStation P7 workstation use?
It features an Intel Xeon w5-3425 processor with 12 cores, 24 threads, and a base clock speed of 3.2GHz. This CPU supports Intel vPro technology for enhanced security and remote management capabilities in business environments.
How much memory is installed, and can it be expanded?
The workstation comes with 64GB of DDR5 SDRAM installed across four 16GB modules. It has eight total memory slots, supporting a maximum of 1TB of DDR5 ECC Registered memory, allowing significant expansion for memory-intensive applications.
What type of storage is included, and how fast is it?
A 2TB PCI Express NVMe 4.0 x4 solid-state drive is installed, offering high-speed data transfer rates via the NVMe interface. This SSD provides fast boot times, quick application loading, and efficient handling of large files.
Does this workstation have dedicated graphics?
Yes, it includes one dedicated graphics controller with 24GB of graphics memory. This configuration is suitable for GPU-accelerated tasks such as 3D rendering, video editing, and scientific simulations.
What operating system is pre-installed?
Windows 11 Pro for Workstations is pre-installed in English. This edition includes advanced features like support for larger memory configurations, the ReFS file system, and persistent memory, optimized for professional workstation use.
What warranty and support are included with this ThinkStation?
The workstation comes with a 3-year limited warranty that includes onsite service. An upgrade to 3Y Premier Support is available, providing enhanced technical support and faster response times for critical business needs.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 3.20 GHz processor for everyday performance and multitasking.
