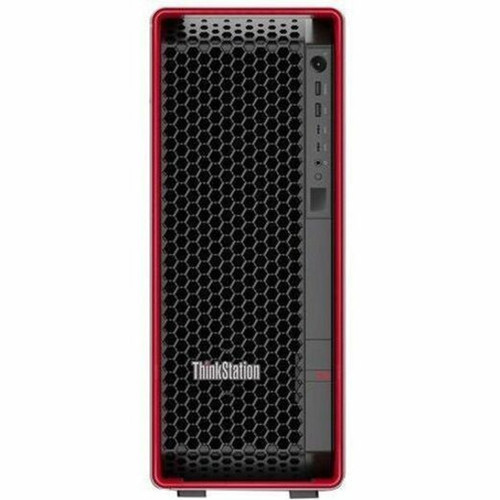

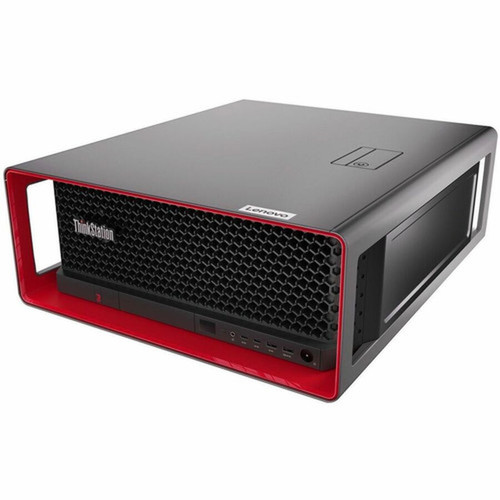

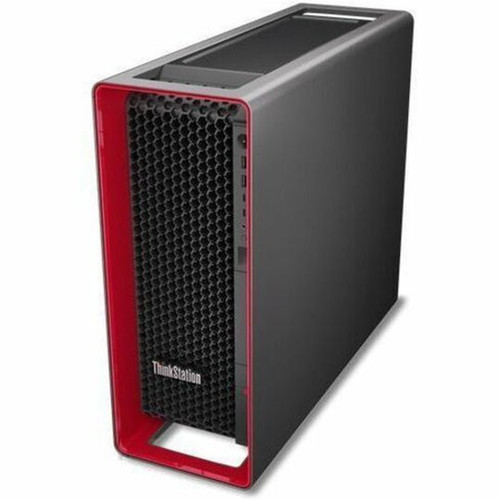

Lenovo 30HH003LCA ThinkStation P8 Workstation - Ryzen Threadripper PRO 7965WX 24-Core 4. 2GHz - 32GB DDR5 - 1TB NVMe SSD - Tower - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ThinkStation P8 is the AMD Ryzen Threadripper PRO 7965WX processor, featuring 24 cores (tetracosa-core) and 48 threads running at a base speed of 4.2GHz on the Socket sTR5 platform. This CPU is paired with the AMD WRX90 chipset, which supports advanced memory and I/O configurations essential for workstation-class reliability and performance.
The memory subsystem utilizes DDR5 SDRAM technology with ECC and Registered signal processing for data integrity and stability. With eight memory slots supporting up to 1TB of total capacity and a clock speed of 4.8GHz, the system can handle massive datasets and complex applications. Storage is driven by a 1TB PCI Express NVMe 4.0 x4 SSD, offering exceptional throughput for boot times, application loading, and file transfers.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This workstation combines enterprise-grade components with thoughtful design to meet the rigorous demands of technical professionals. The Ryzen Threadripper PRO platform brings advanced security features and remote management capabilities alongside raw compute power, ensuring both performance and manageability in IT-managed environments.
Expansion Ready
Eight DDR5 memory slots and support for multiple storage controllers provide ample room for future upgrades, allowing the system to scale with evolving project requirements.
- 1TB maximum memory support
- RAID 0/1/5/10 capable
- NVMe and SATA controller support
Professional Connectivity
Dual Ethernet (Gigabit and 10Gb), Wi-Fi, Bluetooth, and a comprehensive set of USB ports including a high-speed USB-C 20Gbps port ensure seamless integration into modern network and peripheral setups.
- 10Gb Ethernet for high-bandwidth tasks
- USB 3.2 Gen 2x2 support
- Four Mini DisplayPort outputs
Deployment / Use Cases
The ThinkStation P8 is engineered for environments where computational accuracy, data integrity, and sustained performance are non-negotiable. Its tower form factor provides excellent thermal headroom and internal expansion potential, making it suitable for stationary setups in labs, design studios, and data centers.
Primary use cases include computer-aided design (CAD), finite element analysis (FEA), computational fluid dynamics (CFD), video editing and color grading, scientific research simulations, and financial modeling. The ECC memory and robust build quality ensure reliable operation during long-running computations, while the dedicated graphics accelerate rendering and visualization tasks.
Engineering & Design
Handle complex 3D assemblies and simulations with the multi-core Threadripper processor and high-speed NVMe storage, reducing iteration times and improving productivity.
Data Science & Research
Process large datasets and run parallelized algorithms efficiently thanks to the 24-core architecture and expandable memory platform, supported by ECC for data accuracy.
Localization and Operating System
This workstation ships with Windows 11 Pro 64-bit pre-installed, providing a secure and feature-rich operating environment with built-in productivity tools, enhanced security features, and support for modern hardware. The inclusion of a French-Canadian localized keyboard ensures immediate usability for users in Quebec and other French-speaking regions, supporting compliance with language requirements and improving user comfort.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The ThinkStation P8 utilizes a traditional tower form factor measuring 17.10" (434.4mm) in height, 6.89" (175mm) in width, and 20" (508mm) in depth, with a weight of approximately 50.04 lb (22.7kg). This design offers ample internal space for cooling and additional components, supporting a stable operating environment even under full load. The robust construction is suitable for office, lab, or controlled data center placement.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation arrives with all essential components for immediate setup and use.
Package contents include ThinkStation P8 Keyboard, ThinkStation P8. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- AMD Ryzen Threadripper PRO 7965WX processor with 24 cores and 4.2GHz clock speed
- 32GB of DDR5 ECC Registered memory for reliable multi-tasking and data integrity
- 1TB PCIe NVMe 4.0 SSD delivers fast boot times and rapid data access
- Windows 11 Pro 64-bit operating system with advanced security and management tools
- Eight memory slots support expansion up to 1TB total RAM capacity
- Dual Ethernet (Gigabit and 10Gb) plus Wi-Fi and Bluetooth connectivity
- French-Canadian keyboard localization for immediate regional usability
- Tower form factor provides excellent cooling and internal expansion potential
- Dedicated 8GB graphics memory accelerates visualization and rendering tasks
- 3-year limited warranty with Premier Next Business Day service
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH003LCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH003LCA |
| Product Name | ThinkStation P8 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7965WX |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 48 |
| Processor Speed | 4.20 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 4 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this Lenovo ThinkStation P8 workstation use?
This workstation is powered by the AMD Ryzen Threadripper PRO 7965WX processor. It features 24 physical cores (tetracosa-core) and 48 threads, with a base clock speed of 4.2GHz. This high-core-count CPU is designed for demanding multi-threaded applications like 3D rendering, simulation, and data analysis, providing substantial parallel processing power.
How much memory is installed and what type is it?
The system comes with 32GB of DDR5 SDRAM installed. This memory utilizes ECC (Error-Correcting Code) and Registered signal processing, which enhances data integrity and stability—critical for workstation applications. The memory operates at 4.8GHz and is installed across eight available slots, allowing for expansion up to a maximum of 1TB total system memory.
What storage configuration does this workstation have?
Storage is handled by a 1TB PCI Express NVMe 4.0 x4 solid-state drive (SSD). This NVMe interface provides significantly higher data transfer speeds compared to traditional SATA SSDs, resulting in faster boot times, quicker application launches, and rapid file access. The storage controller supports both NVMe and SATA drives, with RAID 0, 1, 5, and 10 capabilities for data redundancy or performance configurations.
What operating system is pre-installed?
The workstation comes with Windows 11 Pro 64-bit pre-installed. This professional edition includes advanced features such as BitLocker encryption, remote desktop hosting, group policy management, and Hyper-V for virtualization. It provides a secure, manageable environment suitable for business and technical use cases.
What networking and connectivity options are available?
Networking includes both Gigabit Ethernet and 10 Gigabit Ethernet ports for high-speed wired connections, along with integrated Wi-Fi and Bluetooth for wireless peripherals and networking. For ports, the system offers six USB ports total (including USB 2.0, USB 3.2 Gen 2, and one USB-C 20Gbps port) and four Mini DisplayPort outputs for multi-monitor setups.
What is the form factor and physical size of this workstation?
The ThinkStation P8 uses a tower form factor, measuring 17.10 inches in height, 6.89 inches in width, and 20 inches in depth (approximately 434mm x 175mm x 508mm). It weighs about 50.04 pounds (22.7kg). This traditional tower design offers excellent internal space for airflow, cooling, and future hardware expansions, making it ideal for stationary deployment in professional settings.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 4.20 GHz processor for everyday performance and multitasking.
