Lenovo 30HH004DCA ThinkStation P8 Workstation - AMD Ryzen Threadripper PRO 7985WX 64-Core 3. 2GHz - 32GB DDR5 ECC - 1TB NVMe SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ThinkStation P8 leverages the AMD WRX90 platform to support the Ryzen Threadripper PRO 7985WX processor running at 3.2GHz with Socket sTR5. Memory architecture utilizes eight DDR5 slots with ECC Registered modules operating at 4.8GHz, providing both capacity scalability and data integrity for critical computations.
Storage is handled by a 1TB NVMe SSD using the PCI Express 4.0 x4 interface for sequential read/write speeds exceeding traditional SATA solutions. The system includes hardware RAID support for configurations up to RAID 10, managed through the integrated Serial ATA/600 and NVMe controller. Network connectivity combines dual-speed Ethernet (1GbE and 10GbE) with integrated wireless LAN and Bluetooth for flexible deployment options.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
Professional Compute Density
The 64-core Threadripper PRO processor delivers workstation-class parallel performance for rendering, simulation, and computational tasks that benefit from high thread counts.
- 64 cores and 128 threads handle intensive multitasking
- 3.2GHz base clock with AMD PRO technologies
- Socket sTR5 and WRX90 chipset for platform stability
Enterprise-Grade Memory & Storage
DDR5 ECC Registered memory ensures data accuracy during extended calculations, while NVMe storage provides rapid access to large project files.
- 32GB DDR5 ECC Registered memory at 4.8GHz
- 1TB PCIe NVMe 4.0 SSD for fast boot and load times
- Eight memory slots support up to 1TB total capacity
Comprehensive Connectivity Suite
Dual Ethernet ports including 10GbE, multiple USB 3.2 Gen 2 ports, and a high-speed USB-C port accommodate peripherals and network storage efficiently.
- 10 Gigabit Ethernet for high-bandwidth network storage
- USB-C port supports 20Gbps data transfer
- Wireless LAN and Bluetooth for cable-free peripherals
Deployment / Use Cases
The ThinkStation P8 is engineered for professional environments where computational throughput, data integrity, and system stability are paramount. Its balanced configuration of high-core-count CPU, ECC memory, and fast NVMe storage makes it suitable for technical computing, media production, scientific research, and enterprise applications requiring reliable performance under sustained loads.
Common deployment scenarios include engineering workstations for CAD/CAM/CAE software, research systems for data analysis and simulation, media workstations for video editing and 3D rendering, and enterprise development environments for software compilation and virtualization. The tower chassis accommodates additional GPUs for visualization workloads, extra storage drives for project archives, or specialized capture cards for broadcast applications.
Localization and Operating System
This workstation ships with Windows 11 Pro 64-bit pre-installed, providing a familiar professional operating environment with enhanced security features, virtualization capabilities, and enterprise management tools. The included keyboard features French (Canada) localization with appropriate key legends and layout for Canadian French users.
Windows 11 Pro includes BitLocker device encryption, Hyper-V for virtualization, Remote Desktop for remote access, and Group Policy management—features particularly valuable in business and institutional settings where data protection and centralized administration are priorities.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile

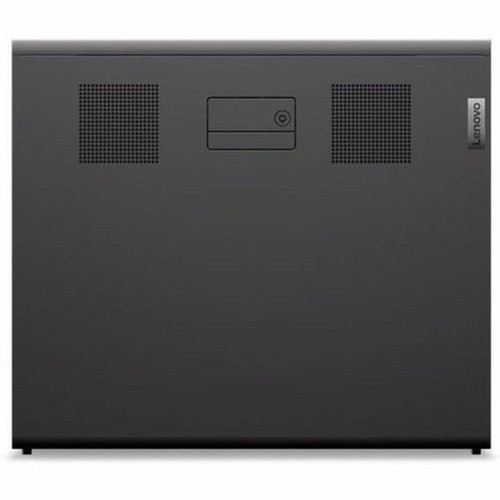

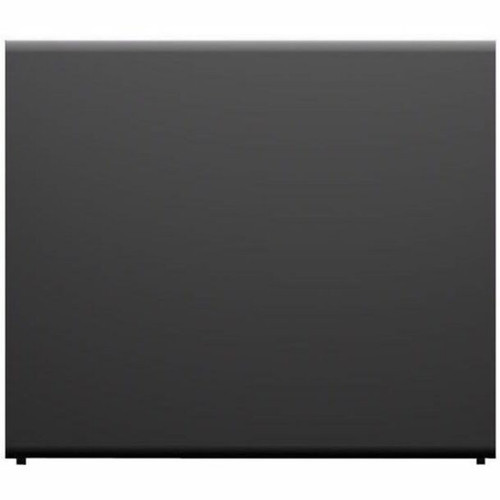

The tower chassis measures 17.1 inches in height, 6.89 inches in width, and 20 inches in depth, with a weight of approximately 50.04 pounds. This form factor provides substantial internal volume for component expansion while maintaining a footprint suitable for desk-side placement in office environments.
The steel construction offers durability for professional use, with tool-less access panels simplifying maintenance and upgrades. The dimensions accommodate standard ATX power supplies and multiple expansion cards, while the weight reflects the robust internal components and cooling system designed for sustained high-performance operation.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation package includes the ThinkStation P8 tower system with all installed components, plus a matching ThinkStation P8 keyboard with French (Canada) localization. Power cables and basic documentation are also included.
Highlights
- AMD Ryzen Threadripper PRO 7985WX processor with 64 cores and 128 threads for intensive parallel workloads
- 32GB of DDR5 ECC Registered memory operating at 4.8GHz with eight slots supporting up to 1TB total capacity
- 1TB PCIe NVMe 4.0 x4 SSD delivers fast storage performance for large project files and applications
- Windows 11 Pro 64-bit operating system with professional security and management features
- Dual Ethernet ports including 10 Gigabit Ethernet for high-speed network storage and data transfer
- Comprehensive USB connectivity with six ports including USB-C 20Gbps for fast peripheral connections
- Tower form factor provides expansion room for additional graphics cards, storage drives, or specialized hardware
- Hardware RAID support (0, 1, 5, 10) for storage redundancy and performance configurations
- French (Canada) localized keyboard included for Canadian French users
- 3-year limited warranty with next-business-day service option for professional support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH004DCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH004DCA |
| Product Name | ThinkStation P8 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7985WX |
| Processor Core | Tetrahexaconta-core (64 Core) |
| Processor Threads | 128 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this ThinkStation P8 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 7985WX processor with 64 physical cores and 128 threads. It operates at a base clock speed of 3.2GHz using the Socket sTR5 interface and is paired with the AMD WRX90 chipset for workstation-grade stability and performance.
How much memory is installed and what type is it?
The system comes with 32GB of DDR5 SDRAM installed. This is ECC (Error-Correcting Code) Registered memory, which detects and corrects single-bit memory errors to maintain data integrity during critical computations. The memory operates at 4.8GHz and is installed in eight available slots, with support for expansion up to 1TB total capacity.
What storage configuration does this workstation include?
Storage is provided by a 1TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This offers significantly faster sequential read/write speeds compared to SATA SSDs or traditional hard drives. The system also includes hardware RAID support for configurations including RAID 0, 1, 5, and 10 when additional drives are installed.
What networking capabilities does the ThinkStation P8 offer?
The workstation includes dual Ethernet ports supporting both Gigabit Ethernet and 10 Gigabit Ethernet for flexible network connectivity. It also features integrated wireless LAN for Wi-Fi connectivity and Bluetooth for wireless peripherals. The 10GbE port is particularly valuable for connecting to high-speed network storage or transferring large datasets across networks.
What operating system is pre-installed on this workstation?
The system ships with Windows 11 Pro 64-bit pre-installed. This professional edition includes features like BitLocker device encryption, Hyper-V virtualization, Remote Desktop access, and Group Policy management—making it suitable for business environments where security, virtualization, and centralized management are important considerations.
What is included in the package with this workstation?
The package includes the ThinkStation P8 tower workstation with all installed components, plus a matching ThinkStation P8 keyboard with French (Canada) localization. Power cables and basic documentation are also included. The keyboard features the appropriate key legends and layout for Canadian French users.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 3.20 GHz processor for everyday performance and multitasking.
