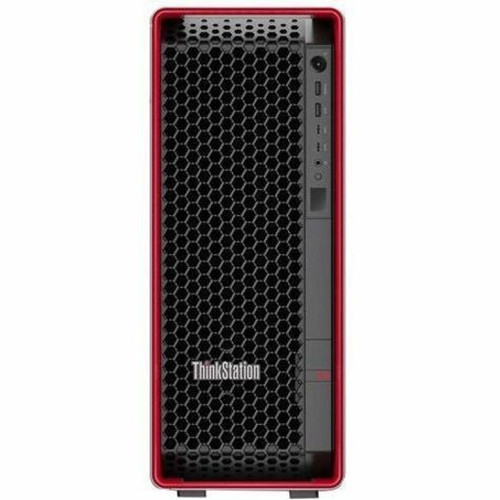

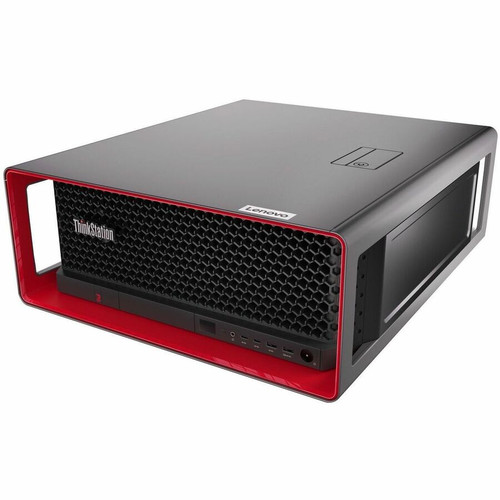

Lenovo 30HH0091CA ThinkStation P8 Workstation - AMD Ryzen Threadripper PRO 9945WX 12-Core 4. 70 GHz - 32 GB RAM - 1 TB SSD - NVIDIA 8 GB - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P8 is the AMD WRX90 chipset, which supports the Socket sTR5 platform for the Ryzen Threadripper PRO 9945WX processor. This 12-core CPU operates at a base speed of 4.70 GHz, leveraging advanced security and remote management features inherent to the PRO series. The system is AI-powered, enhancing performance optimization for compatible workloads.
Storage is handled by a high-speed PCI Express NVMe 4.0 x4 SSD with a total capacity of 1 TB. The controller supports both Serial ATA/600 and NVMe interfaces, with RAID 0, 1, 5, and 10 configurations available for data redundancy or performance striping. The NVIDIA graphics controller provides dedicated 8 GB of memory for GPU-accelerated applications.
This section brings together practical product details such as AI-powered, Number of Processors Supported, Number of Processors Installed, Processor Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This workstation combines enterprise-grade reliability with high-performance components to tackle complex professional tasks. The AMD Ryzen Threadripper PRO platform offers exceptional multi-threaded performance, while the DDR5 ECC registered memory ensures data integrity for critical computations.
Expansion Ready
The tower form factor and eight memory slots allow significant upgrades, supporting up to 1 TB of RAM for future-proofing against growing data demands.
- 8 DIMM slots
- 1 TB max RAM
- Tower chassis for internal expansion
Professional Connectivity
Dual Ethernet (Gigabit and 10 Gigabit), Wi-Fi 6E, and Bluetooth provide versatile networking options. The port selection includes high-speed USB 3.2 Gen 2 and a 20 Gbps USB-C port for fast data transfers.
- 10 Gigabit Ethernet
- Wi-Fi 6E
- USB-C 20Gbps
Deployment / Use Cases
The ThinkStation P8 is designed for environments where computational power and reliability are non-negotiable. Its robust hardware profile makes it suitable for running simulation software, 3D rendering applications, large-scale data analysis, and virtualized development environments.
In architectural and engineering firms, this workstation can handle CAD and BIM software with ease. Media production studios will benefit from the fast storage and dedicated graphics for video editing and visual effects work. Research institutions can leverage the high core count and large memory support for scientific computing and machine learning experiments.
Engineering & Design
Run complex simulations, finite element analysis, and 3D modeling applications with the multi-core processor and dedicated graphics.
Data Science & Analytics
Process large datasets and perform statistical modeling using the high memory capacity and fast NVMe storage.
Localization and Operating System
The workstation ships with Windows 11 Pro pre-installed in French, providing a localized interface for Canadian French users. The 64-bit architecture ensures compatibility with modern applications and maximizes the system's hardware capabilities.
A French (Canada) keyboard is included in the package, offering a familiar layout for seamless productivity. The operating system efficiently manages hardware resources, supporting essential business applications and providing advanced security features inherent to Windows 11 Pro.
This section brings together practical product details such as AI-powered, Number of Processors Supported, Number of Processors Installed, Processor Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
Housed in a substantial tower chassis measuring 17.10 inches in height, 6.89 inches in width, and 20 inches in depth, this workstation offers a robust footprint for internal component accommodation. The design prioritizes cooling and accessibility, with an approximate weight of 50.04 pounds reflecting its solid construction and component density.
The tower form factor is ideal for stationary deployment under desks or in dedicated server rooms, providing ample space for additional storage drives, expansion cards, or cooling solutions. The 1.40 kW power supply ensures stable operation under full load, supporting high-performance components without power constraints.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation package includes the ThinkStation P8 tower unit and a matching ThinkStation P8 keyboard with French (Canada) localization. This ensures immediate setup and productivity without the need for additional peripheral purchases.
Highlights
- AMD Ryzen Threadripper PRO 9945WX 12-core processor at 4.70 GHz for intensive multi-threaded workloads
- 32 GB of DDR5 ECC registered memory ensures data integrity and smooth multitasking
- 1 TB PCIe NVMe 4.0 SSD delivers fast boot times and rapid data access
- NVIDIA dedicated graphics with 8 GB VRAM accelerates visualization and rendering tasks
- Windows 11 Pro French 64-bit pre-installed with localized keyboard for Canadian users
- Dual Ethernet (Gigabit and 10 Gigabit) plus Wi-Fi 6E and Bluetooth for versatile connectivity
- Tower chassis supports expansion up to 1 TB of RAM across eight memory slots
- 1.40 kW power supply provides stable power for high-performance components
- RAID 0, 1, 5, 10 support for data redundancy or performance striping
- Three-year warranty with Premier Support upgrade option for extended coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH0091CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH0091CA |
| Product Name | ThinkStation P8 |
| Product Type | Workstation |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | AMD |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 9945WX |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 4.70 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wi-Fi Generation | Wi-Fi 6E |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 4 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | French |
| Operating System Architecture | 64-bit |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkStation P8 workstation use?
This workstation is equipped with an AMD Ryzen Threadripper PRO 9945WX processor. It features 12 cores and 24 threads, operating at a base speed of 4.70 GHz. The PRO series includes advanced security and remote management capabilities, making it suitable for enterprise environments where both performance and manageability are critical.
How much memory is installed, and what is the maximum supported RAM?
The system comes with 32 GB of DDR5 SDRAM installed. It supports ECC (Error-Correcting Code) and registered memory modules for enhanced reliability. The workstation has eight memory slots and can accommodate up to 1 TB of total system memory, allowing significant expansion for memory-intensive applications like virtualization, large dataset analysis, or complex simulations.
What type of storage does this workstation include?
Storage is provided by a 1 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This offers high sequential read and write speeds, reducing load times for applications and large files. The storage controller supports both NVMe and Serial ATA/600 interfaces, with RAID 0, 1, 5, and 10 configurations available for data protection or performance optimization.
Does this workstation have dedicated graphics?
Yes, it includes a dedicated NVIDIA graphics controller with 8 GB of dedicated video memory. This GPU accelerates graphics-intensive tasks such as 3D rendering, video editing, and CAD applications. The system provides four Mini DisplayPort outputs for multi-monitor setups, supporting high-resolution displays for detailed visual work.
What operating system and localization are pre-installed?
The workstation ships with Windows 11 Pro in French, specifically configured for the Canadian French market. It is a 64-bit version that fully utilizes the hardware capabilities. A French (Canada) keyboard is included in the package, ensuring a localized input experience right out of the box.
What connectivity options are available on this ThinkStation P8?
Networking includes both Gigabit Ethernet and 10 Gigabit Ethernet ports for high-speed wired connections, along with Wi-Fi 6E and Bluetooth for wireless connectivity. The system has six USB ports total: two USB 2.0, three USB 3.2 Gen 2, and one USB-C port supporting 20 Gbps data transfer. Four Mini DisplayPort outputs allow flexible multi-monitor configurations.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 4.70 GHz processor for everyday performance and multitasking.
