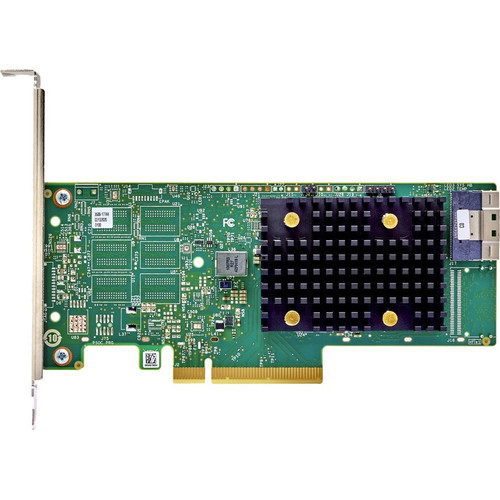

Lenovo ThinkSystem 440-8i SAS/SATA PCIe Gen4 12Gb HBA - 12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - JBOD RAID Level - 2 x4 - 8 - (4Y37A78601)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Host Interface: PCI Express 4.0 x8
Controller Type: 12Gb/s SAS
RAID Supported: No
RAID Levels: JBOD
Device Supported: Server
Operating System Supported: Windows 10,Windows Server 2016,Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 7.6,Red Hat Enterprise Linux 7.7,Red Hat Enterprise Linux 7.8,Red Hat Enterprise Linux 7.9,Red Hat Enterprise Linux 8.1,Red Hat Enterprise Linux 8.2,Red Hat Enterprise Linux 8.3,Red Hat Enterprise Linux 8.4,Red Hat Enterprise Linux 8.5,Red Hat Enterprise Linux 8.6,Red Hat Enterprise Linux 9.0,SUSE Linux Enterprise Server 12 SP3,SUSE Linux Enterprise Server 12 SP4,SUSE Linux Enterprise Server 12 SP5,SuSE Linux Enterprise Server 15,SUSE Linux Enterprise Server 15 SP1,SUSE Linux Enterprise Server 15 SP2,SUSE Linux Enterprise Server 15 SP3,SUSE Linux Enterprise Server 15 SP4,Ubuntu 18.04.5 LTS,Ubuntu 20.04 LTS,Ubuntu 22.04 LTS,VMware ESXi 6.7,VMware ESXi 6.7 U1,VMware ESXi 6.7 U2,VMware ESXi 6.7 U3,VMware ESXi 7.0 U1,VMware ESXi 7.0 U2,VMware ESXi 7.0 U3
Total Number of SAS Ports: 8
Number of SAS Ports (Internal): 8
SAS Connector Details: 2 x4 SFF-8654
Form Factor: Plug-in Card
Platform Supported: PC,Linux
[custom-specifications]
| Specifications | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4Y37A78601 |
| Manufacturer Website Address | http://www.lenovo.com |
| Brand Name | Lenovo |
| Product Model | 440-8i |
| Product Name | ThinkSystem 440-8i SAS/SATA PCIe Gen4 12Gb HBA |
| Product Type | SAS Controller |
| Technical Information | |
| Host Interface | PCI Express 4.0 x8 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | No |
| RAID Levels | JBOD |
| Device Supported | Server |
| Operating System Supported | Windows 10,Windows Server 2016,Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 7.6,Red Hat Enterprise Linux 7.7,Red Hat Enterprise Linux 7.8,Red Hat Enterprise Linux 7.9,Red Hat Enterprise Linux 8.1,Red Hat Enterprise Linux 8.2,Red Hat Enterprise Linux 8.3,Red Hat Enterprise Linux 8.4,Red Hat Enterprise Linux 8.5,Red Hat Enterprise Linux 8.6,Red Hat Enterprise Linux 9.0,SUSE Linux Enterprise Server 12 SP3,SUSE Linux Enterprise Server 12 SP4,SUSE Linux Enterprise Server 12 SP5,SuSE Linux Enterprise Server 15,SUSE Linux Enterprise Server 15 SP1,SUSE Linux Enterprise Server 15 SP2,SUSE Linux Enterprise Server 15 SP3,SUSE Linux Enterprise Server 15 SP4,Ubuntu 18.04.5 LTS,Ubuntu 20.04 LTS,Ubuntu 22.04 LTS,VMware ESXi 6.7,VMware ESXi 6.7 U1,VMware ESXi 6.7 U2,VMware ESXi 6.7 U3,VMware ESXi 7.0 U1,VMware ESXi 7.0 U2,VMware ESXi 7.0 U3 |
| Interfaces/Ports | |
| Total Number of SAS Ports | 8 |
| Number of SAS Ports (Internal) | 8 |
| SAS Connector Details | 2 x4 SFF-8654 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Miscellaneous | |
| Platform Supported | PC,Linux |
[/custom-specifications]
