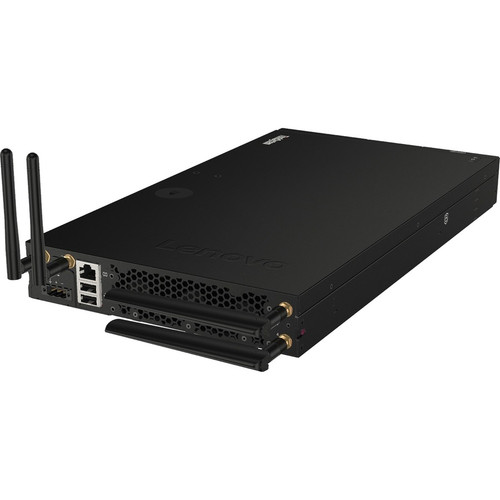

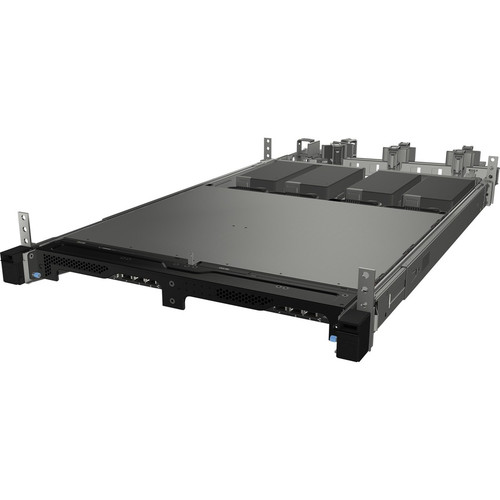

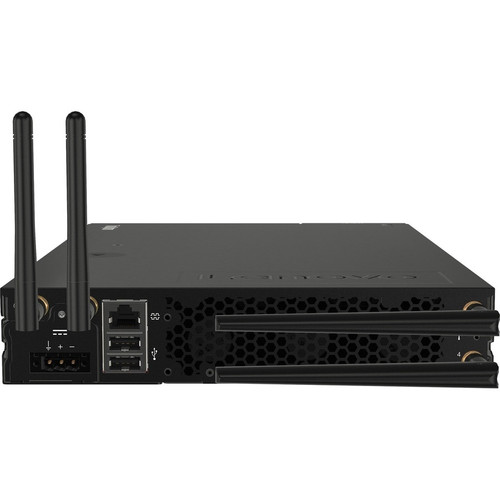

Lenovo 7D1XA029NA ThinkSystem SE350 1U Rack Server - Intel Xeon D-2123IT 2. 20GHz Quad-Core - 8GB RAM - 4 Drive Bays - RAID 0 - 1 - 5 - 10 - 10GbE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The server's technical architecture centers on the Intel Xeon D-2123IT system-on-chip, which integrates a quad-core CPU, memory controller, and I/O interfaces into a single, power-efficient package. The 8MB cache accelerates data access for processor-intensive tasks, while the Intel chipset ensures platform stability and compatibility.
Network connectivity is handled by dual-speed Ethernet controllers supporting both 10 Gigabit and Gigabit Ethernet, enabling high-speed data transfer for network-intensive applications. The system includes two PCI Express x16 (Gen 3.x) expansion slots for adding specialized cards such as additional network interfaces, storage controllers, or accelerator cards. Integrated graphics with 16MB of dedicated memory supports local console access via the VGA port for initial setup and management.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ThinkSystem SE350 combines dense 1U rack design with enterprise server features typically found in larger systems. Its integrated Lenovo XClarity Controller provides comprehensive remote management capabilities, allowing IT administrators to monitor health, deploy updates, and troubleshoot issues without physical access to the server.
The platform's security framework includes ThinkShield features such as a Trusted Platform Module 2.0 for hardware-based encryption, intrusion detection sensors, and support for self-encrypting drives. These layered security measures help protect sensitive data and prevent unauthorized access in distributed deployment scenarios.
Enterprise Management
Lenovo XClarity Controller enables full remote management through a dedicated interface, supporting power control, virtual media, and system monitoring.
- Remote console access
- Hardware health monitoring
- Firmware update management
Storage Flexibility
Four drive bays support various RAID configurations for data protection and performance, while the SATA/600 controller ensures fast data transfer rates.
- Multiple RAID level options
- Hot-swap capable design
- SED (Self-Encrypting Drive) support
Deployment / Use Cases
The SE350's compact 1U form factor and efficient power profile make it ideal for edge computing deployments where space and power are constrained. Its ability to operate on standard 120V or 230V AC power with a single 240W power supply (with support for a second for redundancy) allows flexible installation in wiring closets, retail locations, or small branch offices.
This server excels as a dedicated application host for business software, web servers, or network infrastructure services. The combination of quad-core processing, ECC memory, and RAID-protected storage provides a reliable platform for running critical applications that require consistent uptime and data integrity. The 10GbE networking capability ensures sufficient bandwidth for data-intensive workloads or backhaul connections in distributed environments.
Edge Computing Node
Process data closer to source with local compute and storage, reducing latency and bandwidth requirements for centralized systems.
Branch Office Server
Provide local file, print, or application services with enterprise-grade reliability in remote locations with limited IT staff.
Physical Profile
Measuring just 1.70 inches (43.18mm) in height, the SE350 occupies a single rack unit while delivering full server capabilities. Its 8.20-inch (208.28mm) width and 14.80-inch (375.92mm) depth fit standard 19-inch rack enclosures with proper airflow clearance. At approximately 8.27 pounds (3.75kg), the server is lightweight enough for easy installation while maintaining structural rigidity for stable rack mounting.
The front panel includes a locking bezel option for securing drives and front-access ports, while the chassis features intelligent intrusion detection that logs cabinet access attempts. The compact dimensions make efficient use of rack space while providing adequate internal volume for cooling the Xeon D processor and associated components under typical datacenter operating conditions.
- Width
- 8.20" (208.28 mm)
- Depth
- 14.80" (375.92 mm)
- Height
- 1U
- Weight
- 8.27 lb (3750 g)
Highlights
- Intel Xeon D-2123IT quad-core processor at 2.20GHz for efficient compute performance
- 8GB TruDDR4 ECC memory installed with support for up to 256GB across four DIMM slots
- Compact 1U rack form factor (1.70" H × 8.20" W × 14.80" D) for space-constrained deployments
- Four internal drive bays with RAID 0, 1, 5, and 10 support via Serial ATA/600 controller
- Dual-speed networking with 10 Gigabit Ethernet and Gigabit Ethernet interfaces
- Lenovo XClarity Controller for comprehensive remote management and monitoring
- ThinkShield security features including TPM 2.0 and intrusion detection
- Broad OS support for Windows Server, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server
- Single 240W power supply with support for a second unit for redundancy
- Two PCI Express x16 (Gen 3.x) expansion slots for additional connectivity or acceleration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7D1XA029NA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SE350 |
| Product Model | 7D1XA029NA |
| Product Name | ThinkSystem SE350 7D1XA029NA Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | D-2123IT |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.20 GHz |
| Cache | 8 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 8 GB |
| Maximum Memory Supported | 256 GB |
| Memory Technology | TruDDR4 |
| Memory Clock Speed | 2.67 GHz |
| Total Number of Memory Slots | 4 |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Total Number of Expansion Slots | 2 |
| PCI Express x16 (Gen 3.x) Slots | 2 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 2 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | Lenovo XClarity Controller (XCC) |
| Operating System | |
| Operating System Supported | Windows Server 2016,Windows Server 2019,Red Hat Enterprise Linux 7.6,Red Hat Enterprise Linux 7.7,Red Hat Enterprise Linux 7.8,Red Hat Enterprise Linux 7.9,Red Hat Enterprise Linux 8.1,Red Hat Enterprise Linux 8.2,Red Hat Enterprise Linux 8.3,SuSE Linux Enterprise Server 15,SUSE Linux Enterprise Server 15 SP1,SUSE Linux Enterprise Server 15 SP2,Windows Server 2022 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C19 |
| Maximum Power Supply Wattage | 240 W |
| Miscellaneous | |
| Security Features | ThinkShield Key Vault Portal Trusted Platform Module, supporting TPM 2.0 Front locking bezel Kensington cable slot with intelligent lock position switch G-sensor trigger for motion detection Intrusion Detection Self-encrypting drive (SED) support Power-on password Administrator's password |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 8.20" (208.28 mm) |
| Depth | 14.80" (375.92 mm) |
| Weight (Approximate) | 8.27 lb (3750 g) |
User Manual
FAQ
What processor does this Lenovo ThinkSystem SE350 server use?
This server is equipped with an Intel Xeon D-2123IT processor. This is a quad-core (4-core) CPU operating at a base frequency of 2.20GHz, featuring 8MB of cache. The Xeon D series is designed for efficient performance in space-constrained and thermally sensitive environments like edge and compact rack deployments.
How much memory is installed and what is the maximum supported?
The server comes with 8GB of TruDDR4 ECC (Error-Correcting Code) memory installed in one of its four available DIMM slots. The memory operates at 2.67GHz. The platform supports a maximum of 256GB of memory, allowing for significant expansion by adding additional modules to the three empty slots as your workload requirements grow.
What storage configuration and RAID options are available?
The SE350 has four total internal drive bays for storage devices. It includes a Serial ATA/600 controller that supports RAID (Redundant Array of Independent Disks) configurations. Specifically, it supports RAID levels 0 (striping for performance), 1 (mirroring for redundancy), 5 (striping with parity for balance), and 10 (combination of mirroring and striping) to suit different needs for data protection, performance, or capacity.
What networking capabilities does this server have?
This server features Ethernet controllers that support both 10 Gigabit Ethernet and standard Gigabit Ethernet connections. This dual-speed capability provides high-bandwidth networking suitable for data-intensive applications or connecting to high-speed network backbones, while maintaining compatibility with existing Gigabit infrastructure. It includes an RJ-45 network port for physical connectivity.
How is this server managed remotely?
Remote management is handled by the integrated Lenovo XClarity Controller (XCC). This dedicated management controller provides out-of-band capabilities, allowing administrators to monitor system health, control power, access a virtual console, mount virtual media, and update firmware without being physically present at the server. This is essential for managing distributed or racked deployments efficiently.
What are the physical dimensions and rack requirements?
The ThinkSystem SE350 is a 1U rack server, meaning it occupies one rack unit of vertical space in a standard 19-inch rack. Its exact dimensions are 1.70 inches (43.18mm) in height, 8.20 inches (208.28mm) in width, and 14.80 inches (375.92mm) in depth. It weighs approximately 8.27 pounds (3.75kg). This compact size allows for high-density deployment in rack enclosures.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.20 GHz processor for everyday performance and multitasking.
