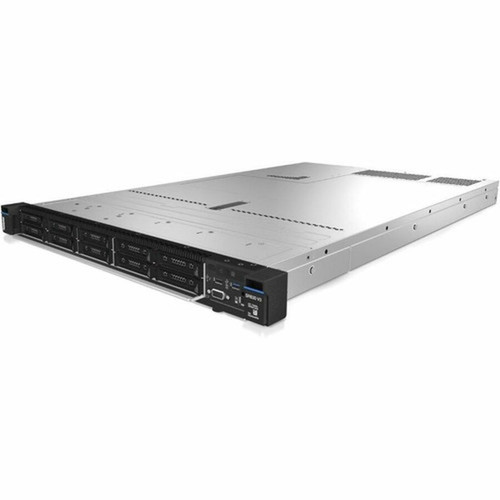

Lenovo 7D73A05KNA ThinkSystem SR630 V3 1U Rack Server - 1x Xeon Silver 4509Y 2. 60GHz Octa-core - 32GB TruDDR5 RAM - 10x Hot-Swap Bays - RAID - 750W
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the SR630 V3 is the Intel Xeon Silver 4509Y processor, featuring eight cores and a 22.50MB cache for efficient multitasking and data processing. The server supports up to two processors, allowing for future expansion to dual-CPU configurations for increased core count and performance scaling.
Memory architecture utilizes 32 slots for TruDDR5 modules, with ECC and registered buffering for data integrity in mission-critical operations. The installed 32GB module operates at 4.40GHz, while the platform supports massive memory expansion up to 8TB for memory-intensive applications.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SR630 V3 combines compute density with storage flexibility in a single rack unit, making it ideal for space-constrained data centers. The 10 hot-swappable drive bays support rapid storage maintenance and expansion without downtime, while the RAID-capable controller ensures data protection across multiple drive configurations.
Enterprise Reliability
ECC memory with registered buffering prevents data corruption, while hot-swappable power supplies and drive bays maintain continuous operation during component replacement.
- TPM 2.0 security module
- Platform Firmware Resiliency (PFR)
- Chassis intrusion detection
Management Efficiency
XClarity Controller delivers out-of-band management for remote monitoring, diagnostics, and firmware updates, reducing the need for physical data center access.
- Power-on and administrator passwords
- Remote KVM functionality
- Health status monitoring
Deployment / Use Cases
The ThinkSystem SR630 V3 serves as a versatile platform for mainstream enterprise applications where rack space efficiency and balanced performance are priorities. Its single-processor configuration with substantial memory and storage expansion makes it suitable for virtualization hosts, mid-sized database servers, and application servers in distributed environments.
With support for multiple Linux distributions and Windows Server editions, organizations can deploy the SR630 V3 across heterogeneous IT environments. The 1U form factor allows dense stacking in standard racks, while the tool-less slide rail kit simplifies installation in data center cabinets.
Virtualization Host
The octa-core processor and large memory capacity support multiple virtual machines, while the 10 drive bays provide storage for VM images and data stores.
Business Application Server
Run enterprise resource planning, customer relationship management, or collaboration software with the reliability of ECC memory and RAID-protected storage.
Physical Profile
Designed for standard 19-inch racks, the SR630 V3 occupies just 1U of vertical space (1.70 inches/43.18mm) while providing substantial compute and storage capabilities. The chassis measures 17.30 inches wide (439.42mm) and 30.40 inches deep (772.16mm), with a weight of approximately 45.86 pounds (20.8kg) for manageable installation.
The rack-optimized design includes front-accessible drive bays and status indicators, while the tool-less slide rail kit enables quick mounting without specialized tools. The compact footprint maximizes rack density while maintaining adequate airflow for cooling in data center environments.
- Width
- 17.30" (439.42 mm)
- Depth
- 30.40" (772.16 mm)
- Height
- 1U
- Weight
- 45.86 lb (20800 g)
What's in the Box
This server ships with all necessary components for immediate rack deployment. The package includes the fully assembled ThinkSystem SR630 V3 server chassis with installed processor, memory, and power supply, along with a tool-less slide rail kit for standard 19-inch rack mounting.
Highlights
- 1U rack server with Intel Xeon Silver 4509Y 2.60GHz octa-core processor
- 32GB TruDDR5 ECC registered memory (expandable to 8TB across 32 slots)
- 10 hot-swappable 2.5" drive bays for flexible storage configurations
- Serial ATA/600 controller with RAID 0, 1, 5, 10, and JBOD support
- XClarity Controller for comprehensive remote management capabilities
- 750W hot-swappable power supply with 120/230V auto-sensing input
- Support for Windows Server and multiple Linux distributions
- 1.70" height fits dense data center racks with tool-less slide rails included
- TPM 2.0 security module and platform firmware resiliency features
- ENERGY STAR 4.0 and EPEAT Bronze certified for energy efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7D73A05KNA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR630 V3 |
| Product Model | 7D73A05KNA |
| Product Name | ThinkSystem SR630 V3 7D73A05KNA Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Silver |
| Processor Generation | 5th Gen |
| Processor Model | 4509Y |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 2.60 GHz |
| Cache | 22.50 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 8 TB |
| Memory Technology | TruDDR5 |
| Memory Clock Speed | 4.40 GHz |
| Total Number of Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | No |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10, JBOD |
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Number of Internal 2.5" Bays | 10 |
| Number of SFF Bays | 10 |
| Hot Swappable Bays | Yes |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller (XCC) Standard |
| Operating System | |
| Operating System Supported | Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 8.6,Red Hat Enterprise Linux 8.7,Red Hat Enterprise Linux 8.8,Red Hat Enterprise Linux 8.9,Red Hat Enterprise Linux 8.10,Red Hat Enterprise Linux 9.0,Red Hat Enterprise Linux 9.1,Red Hat Enterprise Linux 9.2,Red Hat Enterprise Linux 9.3,Red Hat Enterprise Linux 9.4,SUSE Linux Enterprise Server 15 SP4,SUSE Linux Enterprise Server 15 SP5,Ubuntu 22.04 LTS x64 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 750 W |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ThinkSystem SR630 V3 7D73A05KNA Server Toolless Slide Rail Kit |
| Security Features | Chassis intrusion switch Power-on password Administrator's password Root of Trust module supporting TPM 2.0 Platform Firmware Resiliency (PFR) |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental Labeling Program (CELP),Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze),GREENGUARD |
| Energy Efficiency Certification | China Energy Conservation Program (CECP),ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 30.40" (772.16 mm) |
| Weight (Approximate) | 45.86 lb (20800 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
User Manual
FAQ
What processor is installed in this Lenovo SR630 V3 server?
This server comes with one Intel Xeon Silver 4509Y processor installed. This is a 5th Generation Xeon Scalable processor with eight cores running at a base frequency of 2.60GHz, featuring 22.50MB of cache for efficient data processing in enterprise workloads.
How much memory does this server support and what type is installed?
The SR630 V3 supports up to 8TB of memory across 32 DIMM slots. This configuration includes 32GB of TruDDR5 ECC registered memory installed in one slot, operating at 4.40GHz. The ECC (Error-Correcting Code) and registered buffering ensure data integrity for mission-critical applications.
What storage configuration options does this server offer?
This server provides 10 internal 2.5" small form factor drive bays, all supporting hot-swap functionality for maintenance without downtime. The integrated Serial ATA/600 controller supports RAID levels 0, 1, 5, 10, and JBOD for data protection and performance optimization across multiple drives.
What remote management capabilities are included?
The SR630 V3 includes the XClarity Controller (XCC) Standard for comprehensive out-of-band management. This allows administrators to monitor server health, perform remote diagnostics, update firmware, and access KVM functionality without requiring physical access to the data center.
What power supply configuration does this server use?
This configuration includes one 750W hot-swappable power supply installed, with support for a second unit for redundant power. The power supply automatically senses 120V or 230V input and uses a standard C13 connector. Hot-swappable design allows replacement without shutting down the server.
What operating systems are supported by this server?
The SR630 V3 supports multiple enterprise operating systems including Windows Server 2019 and 2022, Red Hat Enterprise Linux versions 8.6 through 9.4, SUSE Linux Enterprise Server 15 SP4 and SP5, and Ubuntu 22.04 LTS x64. This broad compatibility allows deployment in diverse IT environments.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.60 GHz processor for everyday performance and multitasking.
