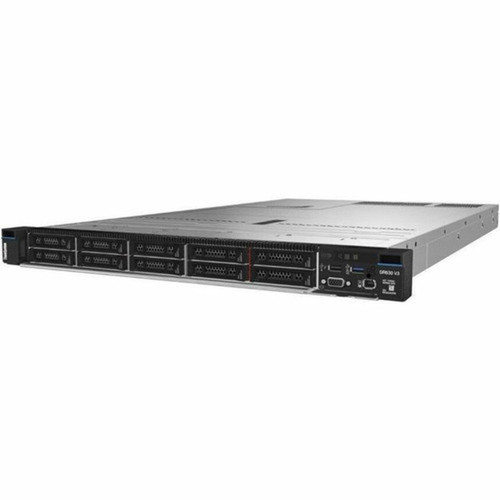

Lenovo 7D73A05QNA ThinkSystem SR630 V3 1U Rack Server - 1x Xeon Silver 4514Y 2 GHz 16-Core - 32 GB TruDDR5 - 8 x 2. 5" Hot-Swap Bays - 12Gb/s SAS RAID
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on the Intel C741 chipset, the SR630 V3 supports up to two Intel Xeon Silver processors, though this configuration ships with one installed. The 16-core Xeon Silver 4514Y operates at 2 GHz with 30 MB of cache, providing substantial parallel processing capability for multi-threaded workloads. Memory architecture includes 32 slots supporting up to 8 TB of TruDDR5 ECC registered memory, with one 32 GB module pre-installed running at 4.80 GHz.
Storage flexibility is central to this server, with eight 2.5" small form factor bays that are hot-swappable for easy maintenance. The integrated 12Gb/s SAS controller (940-8i 4GB) supports RAID configurations for data redundancy. Expansion includes two low-profile PCIe Gen5 slots for adding networking, storage, or acceleration cards. Power is delivered by a single 750W hot-swap power supply, with support for a second unit for redundancy.
Key Product Advantages
The SR630 V3 excels in delivering high-density compute and storage in a compact 1U footprint, making it ideal for data centers where rack space is at a premium. Its combination of a 16-core Xeon processor, fast TruDDR5 memory, and eight hot-swap drive bays provides a balanced platform for a wide range of enterprise applications.
Enterprise-Grade Reliability
Features like ECC memory, hot-swap drive bays, hot-swap power supplies, and RAID support ensure continuous operation and easy maintenance, minimizing downtime in critical environments.
Simplified Management
Lenovo XClarity Controller offers comprehensive remote management capabilities, allowing administrators to monitor health, deploy updates, and troubleshoot issues without physical access to the server.
Future-Ready Expansion
With two PCIe Gen5 slots and support for a second processor, the SR630 V3 can be scaled to meet evolving performance and connectivity demands as workloads grow.
Deployment / Use Cases
The ThinkSystem SR630 V3 is well-suited for medium-duty enterprise roles where a balance of compute, memory, and storage is required within a space-constrained rack. Its single-socket configuration and eight drive bays make it a cost-effective choice for organizations needing reliable server infrastructure without the overhead of dual-processor systems.
Common deployments include virtualization hosts for consolidating multiple virtual machines, database servers for transactional or analytical workloads, and web servers for hosting dynamic sites and applications. The hot-swap drive bays and RAID support also make it a good fit for file or backup servers where data availability is paramount. In edge computing scenarios, its 1U size and robust build allow it to operate reliably in distributed locations.
Virtualization Host
Leverage the 16-core processor and large memory capacity to run multiple virtual machines, improving resource utilization and simplifying IT management.
Database Server
Handle transactional databases or data warehouses with the combination of fast TruDDR5 memory, multiple drive bays for storage tiering, and RAID for data protection.
Physical Profile
The SR630 V3 adopts a standard 1U rack-mount form factor, measuring 1.70 inches (43.18 mm) in height, 17.30 inches (439.42 mm) in width, and 30.40 inches (772.16 mm) in depth. This compact design allows for high-density deployment in standard 19-inch racks, maximizing floor space efficiency in data centers.
Weighing approximately 45.86 pounds (20.8 kg), the server is manageable for installation and maintenance. The included toolless slide rail kit simplifies mounting into racks, reducing deployment time and effort. The chassis features a robust build with security switches and ventilation optimized for reliable operation in rack environments.
- Width
- 17.30" (439.42 mm)
- Depth
- 30.40" (772.16 mm)
- Height
- 1U
- Weight
- 45.86 lb (20800 g)
What's in the Box
The server ships with all necessary components for immediate rack deployment and operation.
Highlights
- 1U rack server with Intel Xeon Silver 4514Y 2 GHz 16-core processor
- 32 GB TruDDR5 ECC registered memory installed, expandable to 8 TB
- 8 hot-swap 2.5" drive bays for flexible storage configurations
- 12Gb/s SAS RAID controller (940-8i 4GB) for data protection
- 2 PCIe Gen5 low-profile expansion slots
- 750W hot-swap power supply with support for redundancy
- Comprehensive remote management via Lenovo XClarity Controller
- Supports Windows Server, Red Hat Linux, SUSE Linux, and Ubuntu
- Dual-voltage input (120V/230V AC) for global deployment
- 3-year onsite warranty with next-business-day service
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7D73A05QNA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR630 V3 |
| Product Model | 7D73A05QNA |
| Product Name | ThinkSystem SR630 V3 7D73A05QNA Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Silver |
| Processor Generation | 5th Gen |
| Processor Model | 4514Y |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 2 GHz |
| Cache | 30 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 8 TB |
| Memory Technology | TruDDR5 |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | No |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Controller Model | 940-8i 4GB |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | 2x LP Gen5 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller (XCC) Standard |
| Operating System | |
| Operating System Supported | Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 8.6,Red Hat Enterprise Linux 8.7,Red Hat Enterprise Linux 8.8,Red Hat Enterprise Linux 8.9,Red Hat Enterprise Linux 8.10,Red Hat Enterprise Linux 9.0,Red Hat Enterprise Linux 9.1,Red Hat Enterprise Linux 9.2,Red Hat Enterprise Linux 9.3,Red Hat Enterprise Linux 9.4,SUSE Linux Enterprise Server 15 SP4,SUSE Linux Enterprise Server 15 SP5,Ubuntu 22.04 LTS x64 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 750 W |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ThinkSystem SR630 V3 7D73A05QNA Server Toolless Slide Rail Kit |
| Security Features | Chassis intrusion switch Power-on password Administrator's password Root of Trust module supporting TPM 2.0 Platform Firmware Resiliency (PFR) |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental Labeling Program (CELP),GREENGUARD,Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP),ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 30.40" (772.16 mm) |
| Weight (Approximate) | 45.86 lb (20800 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
User Manual
FAQ
What processor is installed in this Lenovo SR630 V3 server?
This server comes with one Intel Xeon Silver 4514Y processor installed. It is a 16-core (hexadeca-core) CPU running at a base clock speed of 2 GHz, with 30 MB of cache. The system supports up to two processors, allowing for future expansion to dual-socket configuration if higher compute performance is needed.
How much memory does the server have, and can it be expanded?
The server is equipped with 32 GB of TruDDR5 ECC registered (buffered) memory. It has a total of 32 memory slots, with one slot occupied in this configuration. Memory can be expanded up to a maximum of 8 TB, providing substantial headroom for memory-intensive applications like virtualization, databases, or in-memory analytics.
What type of storage bays are available?
There are eight 2.5" small form factor (SFF) drive bays, all of which are hot-swappable. This allows for easy drive replacement or upgrades without powering down the server, minimizing downtime. The bays support SAS or SATA drives, and with the included 12Gb/s SAS RAID controller, you can configure RAID for data redundancy and performance.
Does this server support RAID?
Yes, the server includes a 12Gb/s SAS controller (model 940-8i 4GB) that supports RAID configurations. This enables you to set up RAID levels such as 0, 1, 5, or 6 for data protection, improved performance, or a combination of both, depending on your storage requirements and drive setup.
What remote management features are included?
The server features the Lenovo XClarity Controller (XCC) Standard for comprehensive remote management. This allows administrators to monitor system health, configure hardware, update firmware, and troubleshoot issues remotely via a web interface. It supports features like virtual media, remote console, and power control, simplifying server administration.
What is the power supply configuration?
The server includes one 750W hot-swap power supply installed. It supports up to two power supplies for redundancy, so you can add a second unit to create a failover configuration. The power supply accepts dual-voltage input (120V or 230V AC) and uses a standard C13 connector, making it suitable for various power infrastructures.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2 GHz processor for everyday performance and multitasking.
