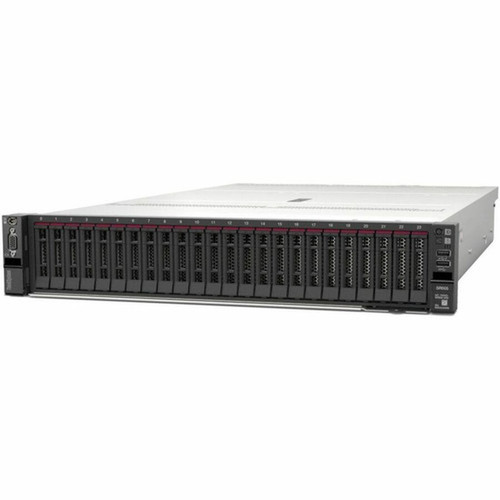

Lenovo 7D2V1005NA ThinkSystem SR665 2U Rack Server - AMD EPYC 7763 64-Core 2. 45 GHz - 32 GB RAM - 1. 92 TB SSD - 16 Hot-Swap Bays - RAID Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the SR665 is the 3rd Gen AMD EPYC 7763 processor, operating at 2.45 GHz with 64 cores and 256 MB of L3 cache. This server supports up to two processors, allowing for future CPU expansion to double the core count. The memory subsystem features 32 DIMM slots capable of supporting up to 8 TB of TruDDR4 memory running at 3.20 GHz, with ECC and registered buffering for data integrity and stability.
Storage connectivity is handled by the 930-16i controller, which provides 12Gb/s SAS and SATA interfaces. This controller supports RAID levels 0, 1, 5, 6, 10, 50, 60, and JBOD, giving administrators flexible options for performance, capacity, and data protection. The server includes three PCIe Gen4 expansion slots (x16, x8, x8) for adding network, storage, or accelerator cards.
Key Product Advantages
The ThinkSystem SR665 combines exceptional compute density with robust storage expansion in a standard 2U rack form factor. Its dual-processor capability and massive memory support make it suitable for scaling from current needs to future requirements without chassis changes.
High-Density Compute
The 64-core EPYC 7763 processor delivers substantial parallel processing power for virtualization, analytics, and technical computing workloads, while support for a second processor allows for compute scaling.
- 64 cores at 2.45 GHz
- 256 MB L3 cache
- Dual processor support
Flexible Storage Architecture
With 16 hot-swap 2.5" bays and a capable RAID controller, the SR665 supports mixed SSD and HDD configurations with enterprise data protection features.
- 16 hot-swap SFF bays
- 930-16i RAID controller
- Multiple RAID level support
Enterprise Reliability
Dual hot-swap redundant power supplies, ECC memory, comprehensive remote management via XCC Enterprise, and hardware security features ensure continuous operation in business-critical environments.
- Dual 1.10 kW PSUs
- XCC Enterprise management
- TPM 2.0 security
Deployment / Use Cases
The ThinkSystem SR665 is well-suited for data center environments requiring balanced compute and storage resources in a rack-optimized design. Its configuration supports a range of enterprise applications where performance, expandability, and reliability are paramount.
Common deployment scenarios include virtualized infrastructure hosting multiple virtual machines, mid-tier database servers requiring consistent I/O performance, and private cloud platforms needing scalable compute resources. The server's compatibility with major Windows Server and Linux distributions makes it adaptable to diverse IT environments.
Virtualization Host
With 64 cores and support for up to 8 TB of memory, this server can host numerous virtual machines for server consolidation projects or VDI deployments.
Database & Analytics
The combination of high core count, fast storage connectivity, and RAID protection makes the SR665 effective for transactional databases, data warehouses, and business intelligence applications.
Physical Profile
The server occupies 2U of standard 19-inch rack space with dimensions of 3.40" (86.36 mm) in height, 17.50" (444.50 mm) in width, and 30.10" (764.54 mm) in depth. Weighing approximately 85.54 lb (38.8 kg), it includes integrated slide rails for secure rack mounting. The compact 2U design maximizes compute and storage density per rack unit while maintaining serviceability through front-accessible drive bays and hot-swap components.
- Width
- 17.50" (444.50 mm)
- Depth
- 30.10" (764.54 mm)
- Height
- 2U
- Weight
- 85.54 lb (38800 g)
What's in the Box
The package includes the ThinkSystem SR665 7D2VA04HEA server unit and a slide rail kit for standard 19-inch rack installation.
Package contents include ThinkSystem SR665 7D2VA04HEA Server Slide Rail Kit, ThinkSystem SR665 7D2VA04HEA Server. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- AMD EPYC 7763 64-core processor at 2.45 GHz for high-density computing
- 32 GB of TruDDR4 ECC registered memory with support for up to 8 TB total
- 1.92 TB SATA SSD provides fast primary storage for operating system and applications
- 16 hot-swap 2.5" drive bays offer substantial storage expansion capacity
- 930-16i RAID controller supports multiple RAID levels for data protection
- Dual 1.10 kW hot-swap redundant power supplies ensure continuous operation
- 2U rack form factor optimizes data center space efficiency
- XCC Enterprise remote management enables comprehensive out-of-band control
- Compatible with Windows Server and major Linux distributions
- Includes slide rail kit for straightforward rack mounting
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7D2V1005NA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR665 |
| Product Model | 7D2V1005NA |
| Product Name | ThinkSystem SR665 7D2V1005NA Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | EPYC |
| Processor Generation | 3rd Gen |
| Processor Model | 7763 |
| Processor Core | Tetrahexaconta-core (64 Core) |
| Processor Speed | 2.45 GHz |
| Cache | 256 MB |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 8 TB |
| Memory Technology | TruDDR4 |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Storage | |
| Number of Solid State Drives | 1 |
| Total Solid State Drive Capacity | 1.92 TB |
| Solid State Drive Interface | Serial ATA/600 |
| Controllers | |
| Controller Type | Serial ATA,12Gb/s SAS |
| Controller Model | 930-16i |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| I/O Expansions | |
| Number of Total Expansion Bays | 16 |
| Number of Internal 2.5" Bays | 16 |
| Number of SFF Bays | 16 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 3 |
| PCI Express Details | 3 (x16, x8, x8) Gen4 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.1 Type-A Ports | 5 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | XCC Enterprise |
| Operating System | |
| Operating System Supported | Windows Server 2016,Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 7.6,Red Hat Enterprise Linux 7.7,Red Hat Enterprise Linux 7.8,Red Hat Enterprise Linux 7.9,Red Hat Enterprise Linux 8.1,Red Hat Enterprise Linux 8.2,Red Hat Enterprise Linux 8.3,Red Hat Enterprise Linux 8.4,Red Hat Enterprise Linux 8.5,SUSE Linux Enterprise Server 12 SP5,SUSE Linux Enterprise Server 15 SP1,SUSE Linux Enterprise Server 15 SP2,SUSE Linux Enterprise Server 15 SP3 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 1.10 kW |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ThinkSystem SR665 7D2VA04HEA Server Slide Rail Kit |
| Security Features | Secure Boot function of the AMD EPYC processor Firmware signature processes compliant with FIPS and NIST requirements Administrator and power-on password Integrated Trusted Platform Module (TPM) supporting TPM 2.0 |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 30.10" (764.54 mm) |
| Weight (Approximate) | 85.54 lb (38800 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
User Manual
FAQ
What processor does this Lenovo ThinkSystem SR665 server use?
This server is equipped with an AMD EPYC 7763 processor from the 3rd Gen EPYC family. It features 64 cores operating at a base frequency of 2.45 GHz with 256 MB of L3 cache. The server supports up to two processors, allowing for future expansion to 128 cores total.
How much memory is installed and what is the maximum supported?
This configuration includes 32 GB of TruDDR4 ECC registered memory installed in one of the 32 available DIMM slots. The server supports a maximum of 8 TB of memory across all slots, providing substantial headroom for memory-intensive applications and virtualization workloads.
What storage configuration does this server include?
The server comes with a single 1.92 TB SATA SSD installed. It features 16 hot-swap 2.5" drive bays, allowing for significant storage expansion using either SSDs or hard drives. The included 930-16i RAID controller supports various RAID levels for data protection and performance optimization.
What RAID levels does the controller support?
The 930-16i RAID controller supports RAID levels 0, 1, 5, 6, 10, 50, 60, and JBOD. This range provides options for striping, mirroring, parity-based protection, and nested configurations to balance performance, capacity, and data redundancy according to specific application requirements.
What power supply configuration does this server have?
The server includes two 1.10 kW power supply units configured for redundancy. Both power supplies are hot-swappable, allowing for replacement without shutting down the server. This redundant design ensures continuous operation in the event of a single power supply failure.
What operating systems are compatible with this ThinkSystem SR665?
This server is compatible with Windows Server 2016, 2019, and 2022, along with multiple versions of Red Hat Enterprise Linux (7.6 through 8.5) and SUSE Linux Enterprise Server (12 SP5 through 15 SP3). This broad OS support enables deployment in diverse enterprise environments running either Windows or Linux-based infrastructure.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.45 GHz processor for everyday performance and multitasking.
