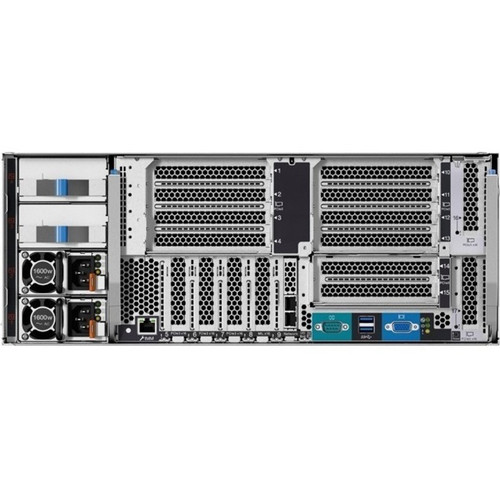

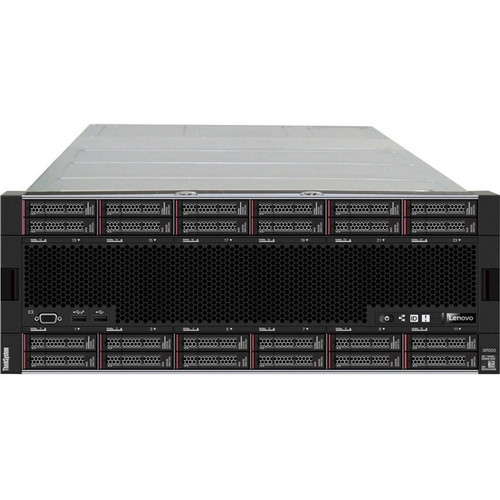

Lenovo 7X12A02XNA ThinkSystem SR950 4U Rack Server - 8x Xeon Platinum 8260 2. 40GHz 24-Core - 256GB TruDDR4 - 24 x 2. 5" Hot-Swap Bays - 10GbE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the SR950 leverages the Intel C624 chipset to manage eight second-generation Xeon Platinum 8260 processors. Each processor provides 24 cores and 35.75MB of cache, delivering a total of 192 cores for parallel processing. The memory subsystem uses TruDDR4 technology with error-correcting code (ECC) to maintain data integrity under heavy loads.
Storage is handled by two 930-16i controllers that support both 12Gb/s SAS and Serial ATA/600 drives. The RAID controller offers levels 0, 1, 5, 6, 10, 50, and 60 for flexible data protection and performance. Expansion is facilitated through 17 slots, accommodating additional networking, storage, or accelerator cards as needed.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SR950 excels in environments requiring maximum uptime and computational density. Its eight-processor design provides redundancy and performance headroom, while the 4U form factor optimizes rack space without sacrificing expandability. The server's architecture supports intensive workloads with minimal latency, thanks to high-speed interconnects and efficient memory management.
High Availability
Redundant 1.6kW power supplies and hot-swappable drive bays allow for maintenance without downtime, critical for 24/7 operations.
- 4x power supplies
- Hot-swap drive bays
- RAID data protection
Enterprise Management
The integrated XClarity Controller enables remote monitoring and management, simplifying administration across distributed data centers.
- Remote management
- System health monitoring
- Firmware updates
Scalable Storage
With 24 drive bays and support for multiple RAID levels, the SR950 can be configured for capacity, performance, or a balance of both.
- 24x 2.5" bays
- RAID 0-60 support
- 12Gb/s SAS/SATA
Deployment / Use Cases
This server is tailored for large-scale enterprise and data center deployments where compute density and reliability are paramount. Its multi-processor design and extensive memory support make it suitable for virtualized environments, allowing consolidation of numerous virtual machines onto a single physical host.
In database applications, the SR950's high core count and fast storage controllers accelerate transaction processing and analytics. It also serves well in high-performance computing clusters, scientific simulations, and financial modeling, where parallel processing capabilities reduce time-to-results.
Virtualization Host
Support for major hypervisors and high memory capacity enables efficient VM consolidation, reducing physical server footprint and management overhead.
Database Server
The combination of multiple processors, large cache, and RAID-protected storage ensures fast query performance and data integrity for critical databases.
Physical Profile
Designed for standard 19-inch racks, the SR950 occupies 4U of vertical space with dimensions of 6.90" height, 17.60" width, and 33.50" depth. Its weight of approximately 129.41 pounds reflects the robust construction and high component density. The rack-mount form factor includes integrated rails for secure installation, and the front-accessible drive bays simplify maintenance in crowded data center environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4U, 17.60" (447.04 mm), 33.50" (850.90 mm), 129.41 lb (58700 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.60" (447.04 mm)
- Depth
- 33.50" (850.90 mm)
- Height
- 4U
- Weight
- 129.41 lb (58700 g)
What's in the Box
The package includes all necessary components for immediate deployment. Each unit is shipped with the server chassis, a rail kit for rack mounting, documentation, and power cords to connect to standard outlets.
Highlights
- Eight Intel Xeon Platinum 8260 24-core 2.40GHz processors for extreme parallel processing
- 256GB of TruDDR4 ECC memory installed, expandable via 96 total DIMM slots
- 24 hot-swappable 2.5" drive bays for flexible storage configurations
- Dual 12Gb/s SAS/SATA controllers with RAID 0, 1, 5, 6, 10, 50, 60 support
- 10 Gigabit Ethernet networking for high-speed data transfer
- Four 1.60kW redundant power supplies ensure continuous operation
- 4U rack-mount form factor optimizes data center space
- Remote management via XClarity Controller (XCC) for easy monitoring
- Compatible with Windows Server and multiple Linux distributions
- ENERGY STAR 2.1 certified and RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7X12A02XNA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR950 |
| Product Model | 7X12A02XNA |
| Product Name | ThinkSystem SR950 7X12A02XNA Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 8 |
| Number of Processors Installed | 8 |
| Processor Type | Xeon Platinum |
| Processor Generation | 2nd Gen |
| Processor Model | 8260 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Speed | 2.40 GHz |
| Cache | 35.75 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
| Memory | |
| Standard Memory | 256 GB |
| Memory Technology | TruDDR4 |
| Total Number of Memory Slots | 96 |
| Number of Occupied Memory Slots | 8 |
| Error Checking | ECC |
| Controllers | |
| Controller Type | 12Gb/s SAS,Serial ATA/600 |
| Controller Model | 2x 930-16i |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Number of Internal 2.5" Bays | 24 |
| Number of SFF Bays | 24 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 17 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller (XCC) |
| Operating System | |
| Operating System Supported | Windows Server 2016,Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 7.6,Red Hat Enterprise Linux 7.7,Red Hat Enterprise Linux 7.8,Red Hat Enterprise Linux 7.9,Red Hat Enterprise Linux 8,Red Hat Enterprise Linux 8.1,Red Hat Enterprise Linux 8.2,Red Hat Enterprise Linux 8.3,Red Hat Enterprise Linux 8.4,Red Hat Enterprise Linux 8.5,SUSE Linux Enterprise Server 12 SP4,SUSE Linux Enterprise Server 12 SP5,SuSE Linux Enterprise Server 15,SUSE Linux Enterprise Server 15 SP1,SUSE Linux Enterprise Server 15 SP2,SUSE Linux Enterprise Server 15 SP3 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 4 |
| Number of Power Supplies Installed | 4 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 1.60 kW |
| Redundant Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ThinkSystem SR950 7X12A02XNA Server Rail kit Documentation flyer 2.8m C13-C14 10A Power Cords |
| Security Features | Administrator and power-on password Trusted Platform Module (TPM) supporting both TPM 1.2 and TPM 2.0 Optional Trusted Cryptographic Module (TCM) or Nationz TPM, available only in China Self-encrypting drives with support for IBM Security Key Lifecycle Manager |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.1 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 4U |
| Height | 6.90" (175.26 mm) |
| Width | 17.60" (447.04 mm) |
| Depth | 33.50" (850.90 mm) |
| Weight (Approximate) | 129.41 lb (58700 g) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many processors does this server support and have installed?
The Lenovo ThinkSystem SR950 supports and comes with eight Intel Xeon Platinum 8260 processors installed. Each processor is a 24-core model running at 2.40GHz, providing a total of 192 cores for handling demanding enterprise workloads.
What is the memory configuration and expandability?
This server includes 256GB of TruDDR4 ECC memory across eight occupied slots. It has 96 total memory slots, allowing for significant expansion up to several terabytes depending on DIMM capacity, making it suitable for memory-intensive applications.
How many drive bays are available and what type are they?
There are 24 drive bays, all of which are 2.5" small form factor (SFF) and hot-swappable. This design allows for easy drive replacement and upgrades without powering down the server, supporting both SAS and SATA drives.
What RAID levels are supported by the storage controllers?
The dual 930-16i controllers support RAID levels 0, 1, 5, 6, 10, 50, and 60. This range offers options for performance, data protection, or a combination, such as RAID 10 for speed and redundancy or RAID 6 for dual-disk fault tolerance.
What networking capabilities does this server have?
It features 10 Gigabit Ethernet technology with one RJ-45 port, providing high-speed network connectivity for data-intensive tasks. This is complemented by four USB ports (two USB 2.0 and two USB 3.0) for peripheral connections.
What power supply configuration is included?
The server comes with four 1.60kW power supplies installed, which are redundant and use C13/C14 connectors. This redundancy ensures continuous operation even if one power supply fails, and the high wattage supports the system under full load.
What processor or CPU is listed for this server or storage platform?
This product uses the 8 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.40 GHz processor for everyday performance and multitasking.
