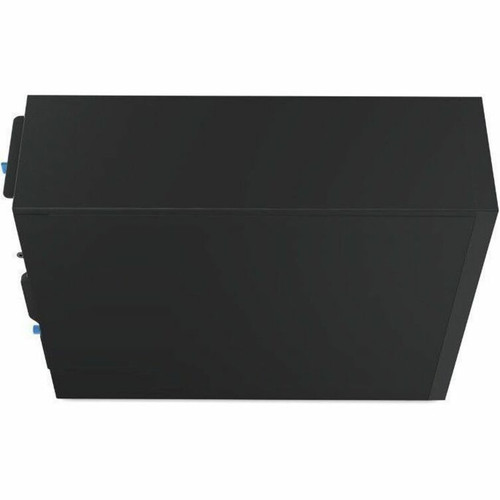

Lenovo 7DCEA01UNA ThinkSystem ST250 V3 Tower Server - 1x Xeon E-2488 3. 2GHz 8-Core - 16GB TruDDR5 ECC RAM - 12Gb/s SAS RAID - 6 Drive Bays - 800W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkSystem ST250 V3 is an Intel Xeon E-2488 processor, featuring eight cores and a 3.20 GHz clock speed with 16 MB of cache. This CPU is paired with the Intel C266 chipset, ensuring reliable data flow and system stability. Memory configuration includes 16 GB of TruDDR5 technology operating at 4.80 GHz, with ECC error checking for data integrity. The server supports up to 128 GB across multiple slots, allowing for significant future upgrades.
Storage capabilities are anchored by a 12Gb/s SAS controller (model 5350-8i) that supports RAID levels 0, 1, 5, 10, and JBOD. The chassis includes six drive bays: four hot-swappable 3.5" LFF bays and two external 5.25" bays, providing ample room for HDDs, SSDs, or optical drives. Expansion is facilitated through four PCIe slots (x4, x16, x4, x4), enabling additions like network cards, GPUs, or storage adapters.
Key Product Advantages
The ThinkSystem ST250 V3 excels in delivering high performance and expandability for cost-conscious enterprise environments. Its tower design reduces initial infrastructure costs while offering extensive configuration options. The inclusion of a 12Gb/s SAS RAID controller ensures data protection and performance optimization for critical storage workloads.
Enterprise-Grade Reliability
With ECC memory, hot-swappable drive bays, and a redundant power supply option, this server minimizes downtime and maintains data integrity under continuous operation.
- ECC memory for error correction
- Hot-swappable components for easy maintenance
- RAID support for fault tolerance
Simplified Management
The integrated XClarity Controller provides remote management capabilities, allowing administrators to monitor system health, deploy updates, and troubleshoot issues without physical access.
- Remote management via XClarity
- VGA output for local console
- Security features like TPM 2.0
Deployment / Use Cases
The ST250 V3 is well-suited for small to medium-sized businesses, remote offices, and departmental servers where rack space is limited or unnecessary. Its balance of performance and affordability makes it ideal for roles such as file and print serving, virtualization hosts, and application servers.
Common deployments include hosting virtual machines with hypervisors like VMware or Hyper-V, running database applications such as SQL Server, and serving as a network-attached storage (NAS) solution. The server's support for both Windows Server and multiple Linux distributions ensures compatibility with a wide range of software environments.
Virtualization Host
With eight CPU cores and support for up to 128 GB of RAM, this server can efficiently run multiple virtual machines, consolidating workloads and reducing hardware footprint.
Branch Office Server
The tower form factor and manageable size make it easy to deploy in office closets or under desks, providing local compute and storage resources without requiring a dedicated server room.
Physical Profile
The ThinkSystem ST250 V3 features a compact tower chassis measuring 17.5 inches in height, 6.9 inches in width, and 22.8 inches in depth, with a weight of approximately 34.86 pounds. Its design prioritizes accessibility, with tool-less entry points for easy component upgrades and maintenance.
The chassis includes security features such as a padlock loop and Kensington cable slot for physical theft deterrence, along with a chassis intrusion switch to alert administrators of unauthorized access. The tower form factor allows for placement on desktops, shelves, or under desks, making it versatile for various office environments.
- Width
- 6.90" (175.26 mm)
- Depth
- 22.80" (579.12 mm)
- Height
- 17.50" (444.50 mm)
- Weight
- 34.86 lb (15810 g)
What's in the Box
The package includes the ThinkSystem ST250 V3 server unit, essential documentation, a power cord, and a flyer with setup instructions. This ensures you have everything needed for initial deployment and basic configuration.
Highlights
- Intel Xeon E-2488 8-core processor at 3.20 GHz for high-performance computing
- 16 GB TruDDR5 ECC memory with support for up to 128 GB expansion
- 12Gb/s SAS RAID controller supporting RAID 0,1,5,10, and JBOD
- Six drive bays (4x hot-swappable 3.5" LFF, 2x external 5.25") for flexible storage
- Four PCIe expansion slots for adding network, storage, or graphics cards
- Dual Gigabit Ethernet ports and seven USB ports for connectivity
- 800W hot-swappable power supply with support for a second unit
- Remote management via XClarity Controller for easy administration
- Support for Windows Server and multiple Linux operating systems
- Tower form factor with compact dimensions for space-constrained deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7DCEA01UNA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | ST250 V3 |
| Product Model | 7DCEA01UNA |
| Product Name | ThinkSystem ST250 V3 7DCEA01UNA Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | E-2488 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 3.20 GHz |
| Cache | 16 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | TruDDR5 |
| Memory Clock Speed | 4.80 GHz |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
| Signal Processing | Unregistered (Unbuffered) |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Controller Model | 5350-8i |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10, JBOD |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Number of External 5.25" Bays | 2 |
| Number of 3.5" Bays | 4 |
| Number of LFF Bays | 4 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 4 |
| PCI Express Details | 4x PCIe slots (x4, x16, x4, x4) |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller |
| Operating System | |
| Operating System Supported | Windows Server 2022,Red Hat Enterprise Linux 8.8,Red Hat Enterprise Linux 9.2,Red Hat Enterprise Linux 8.9,Red Hat Enterprise Linux 9.3,SUSE Linux Enterprise Server 15 SP5,Ubuntu 22.04 LTS x64,Red Hat Enterprise Linux 8.10,Red Hat Enterprise Linux 9.4,SUSE Linux Enterprise Server 15 SP6,Ubuntu 24.04 LTS x64 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 800 W |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ThinkSystem ST250 V3 7DCEA01UNA Server Documentation Flyer Power Cord |
| Security Features | Power-on password Administrator's Password Trusted Platform Module, supporting TPM 2.0. Padlock loop and Kensington Cable Slot Chassis Intrusion Switch |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD,China Environmental Labeling Program (CELP),Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP),ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.50" (444.50 mm) |
| Width | 6.90" (175.26 mm) |
| Depth | 22.80" (579.12 mm) |
| Weight (Approximate) | 34.86 lb (15810 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) |
User Manual
FAQ
What processor does the Lenovo ThinkSystem ST250 V3 server use?
This server is equipped with one Intel Xeon E-2488 processor, which features eight cores and operates at a base clock speed of 3.20 GHz. It includes 16 MB of cache and is built on Intel's enterprise-grade architecture, providing reliable performance for demanding workloads like virtualization and database applications.
How much memory is installed, and what is the maximum supported?
The server comes with 16 GB of TruDDR5 ECC memory installed in one slot. It supports a maximum memory capacity of 128 GB, allowing for significant upgrades as your needs grow. The memory operates at 4.80 GHz and uses error-correcting code (ECC) to ensure data integrity.
What storage options are available with this server?
The ST250 V3 includes six drive bays: four hot-swappable 3.5-inch LFF bays and two external 5.25-inch bays. It features a 12Gb/s SAS controller (model 5350-8i) that supports RAID levels 0, 1, 5, 10, and JBOD, enabling data protection and performance optimization for your storage configuration.
Can this server be used for virtualization?
Yes, with its eight-core processor, support for up to 128 GB of RAM, and multiple expansion slots, the ST250 V3 is well-suited for virtualization. It can efficiently run hypervisors like VMware ESXi or Microsoft Hyper-V, making it ideal for consolidating multiple virtual machines in small business or branch office environments.
What remote management features are included?
The server includes the XClarity Controller for remote management, allowing administrators to monitor system health, update firmware, and troubleshoot issues without physical access. It also has a VGA port for local console connections and supports security features like TPM 2.0 for enhanced protection.
What operating systems are supported by this server?
The ST250 V3 supports a range of operating systems, including Windows Server 2022 and various Linux distributions such as Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and Ubuntu LTS editions. This compatibility ensures you can deploy the OS that best fits your application requirements and IT infrastructure.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 3.20 GHz processor for everyday performance and multitasking.
