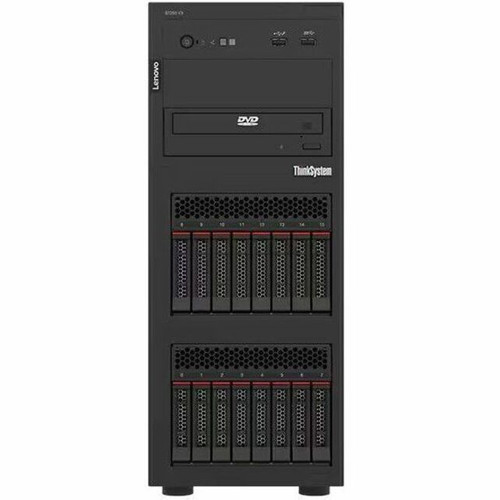

Lenovo 7DCEA02GNA ThinkSystem ST250 V3 Tower Server - Intel Xeon E-2456 Hexa-core 3. 30 GHz - 16 GB TruDDR5 ECC RAM - 6 Drive Bays - 300W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on the Intel C266 chipset, the ST250 V3 integrates a Hexa-core Intel Xeon E-2456 processor with 18 MB of cache, providing strong single-threaded and multi-threaded performance for virtualization, database applications, and file serving. The memory subsystem features four TruDDR5 slots supporting up to 128 GB of ECC unbuffered RAM, with 16 GB pre-installed at 4.80 GHz clock speed for enhanced data integrity and system responsiveness.
Storage flexibility is a key strength, with six total expansion bays including four 3.5" LFF hot-swappable bays and two external 5.25" bays, managed by an Intel VROC Serial ATA/600 controller. Expansion capabilities include four PCIe slots (x4, x16, x4, x4) for adding network cards, RAID controllers, or GPUs, while connectivity covers two Gigabit Ethernet ports, seven USB ports, and VGA output.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Manufacturer, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ST250 V3 stands out with its balanced combination of performance, expandability, and manageability in a tower server package. Its hot-swappable drive bays and power supply enable easy maintenance without downtime, while the XClarity Controller2 offers comprehensive remote management for monitoring, updates, and troubleshooting from any location.
Enterprise Reliability
Features ECC memory, TPM 2.0 security, and a 300W hot-swappable PSU with dual support for redundancy, ensuring stable operation in business-critical environments.
- ECC memory for error correction
- TPM 2.0 hardware security
- Hot-swappable components
Scalable Storage
Six drive bays support high-capacity 3.5" LFF drives for cost-effective storage expansion, with hot-swappability for easy upgrades and replacements.
- 4x 3.5" LFF hot-swappable bays
- 2x 5.25" external bays
- Intel VROC SATA/600 controller
Deployment / Use Cases
Ideal for small businesses and branch offices, the ST250 V3 serves as a reliable foundation for file and print servers, virtualization hosts, and lightweight database applications. Its tower form factor and moderate power consumption make it suitable for environments without dedicated server rooms, while the expandable storage and memory support growth as business needs evolve.
Common deployments include acting as a primary server for small IT networks, a backup server for data protection, or a development/test server for software teams. Support for multiple Linux distributions and Windows Server ensures compatibility with diverse software stacks, from web hosting to business applications.
Small Business Server
Provides essential services like file sharing, user authentication, and backup in a compact, affordable tower design.
Virtualization Host
With 6 cores and up to 128 GB RAM, it can run multiple virtual machines for consolidated IT infrastructure.

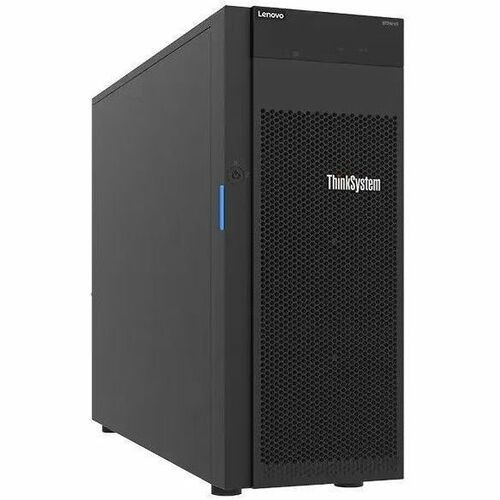

Physical Profile
The tower chassis measures 17.50" (444.50 mm) in height, 6.90" (175.26 mm) in width, and 22.80" (579.12 mm) in depth, with an approximate weight of 52.80 lb (23950 g). Its compact footprint fits easily under desks or in standard office cabinets, while the design includes security features like a padlock loop, Kensington cable slot, and chassis intrusion switch for physical protection.
- Width
- 6.90" (175.26 mm)
- Depth
- 22.80" (579.12 mm)
- Height
- 17.50" (444.50 mm)
- Weight
- 52.80 lb (23950 g)
What's in the Box
The package includes the ThinkSystem ST250 V3 7DCEA02GNA Server, documentation flyer, and power cord for immediate deployment out of the box.
Package contents include ThinkSystem ST250 V3 7DCEA02GNA Server Documentation Flyer Power Cord, ThinkSystem ST250 V3 7DCEA02GNA Server. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon E-2456 Hexa-core 3.30 GHz processor for enterprise performance
- 16 GB TruDDR5 ECC unbuffered RAM with 128 GB maximum support
- 6 drive bays (4x 3.5" LFF hot-swappable, 2x 5.25") for scalable storage
- 300W hot-swappable power supply with dual support for redundancy
- 4 PCIe expansion slots (x4, x16, x4, x4) for added functionality
- 2 Gigabit Ethernet ports and 7 USB ports for connectivity
- XClarity Controller2 for remote management and monitoring
- Supports Windows Server, Red Hat Linux, SUSE Linux, and Ubuntu
- 3-year onsite limited warranty with 9x5 next business day service
- ENERGY STAR 4.0 and EPEAT Bronze certified for energy efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7DCEA02GNA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | ST250 V3 |
| Product Model | 7DCEA02GNA |
| Product Name | ThinkSystem ST250 V3 7DCEA02GNA Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon |
| Processor Model | E-2456 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 3.30 GHz |
| Cache | 18 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | TruDDR5 |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 4 |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
| Signal Processing | Unregistered (Unbuffered) |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Model | Intel VROC |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Number of External 5.25" Bays | 2 |
| Number of 3.5" Bays | 4 |
| Number of LFF Bays | 4 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 4 |
| PCI Express Details | 4x PCIe slots (x4, x16, x4, x4) |
| Display & Graphics | |
| Graphics Controller Manufacturer | Matrox |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller2 (XCC2) Standard |
| Operating System | |
| Operating System Supported | Windows Server 2022,Red Hat Enterprise Linux 8.8,Red Hat Enterprise Linux 9.2,Red Hat Enterprise Linux 8.9,Red Hat Enterprise Linux 9.3,SUSE Linux Enterprise Server 15 SP5,Ubuntu 22.04 LTS x64,Red Hat Enterprise Linux 8.10,Red Hat Enterprise Linux 9.4,SUSE Linux Enterprise Server 15 SP6,Ubuntu 24.04 LTS x64,Windows Server 2025,Red Hat Enterprise Linux 9.5,Red Hat Enterprise Linux 9.6,Red Hat Enterprise Linux 10 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 300 W |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ThinkSystem ST250 V3 7DCEA02GNA Server Documentation Flyer Power Cord |
| Security Features | Power-on password Administrator's Password Trusted Platform Module, supporting TPM 2.0. Padlock loop and Kensington Cable Slot Chassis Intrusion Switch |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD,China Environmental Labeling Program (CELP),Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP),ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.50" (444.50 mm) |
| Width | 6.90" (175.26 mm) |
| Depth | 22.80" (579.12 mm) |
| Weight (Approximate) | 52.80 lb (23950 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) |
User Manual
FAQ
What processor does this Lenovo server use?
This server features an Intel Xeon E-2456 Hexa-core processor with six cores running at a base speed of 3.30 GHz and 18 MB of cache. It is built on the Intel C266 chipset, providing strong performance for business applications, virtualization, and file serving tasks.
How much memory is installed and what is the maximum supported?
The server comes with 16 GB of TruDDR5 ECC unbuffered memory pre-installed, operating at 4.80 GHz. It has four memory slots supporting a maximum of 128 GB, allowing for significant expansion as workload demands increase.
What storage options are available with this tower server?
It includes six total drive bays: four 3.5" LFF hot-swappable bays and two external 5.25" bays. The hot-swappable bays allow easy drive replacement without powering down the server, managed by an Intel VROC Serial ATA/600 controller for reliable storage performance.
Does this server support remote management?
Yes, it includes Lenovo's XClarity Controller2 (XCC2) Standard for comprehensive remote management. This enables IT administrators to monitor system health, perform updates, and troubleshoot issues from a remote location, reducing onsite maintenance needs.
What operating systems are compatible with this server?
The server supports a wide range of operating systems, including Windows Server 2022 and 2025, multiple versions of Red Hat Enterprise Linux (8.8 to 10), SUSE Linux Enterprise Server 15 SP5 and SP6, and Ubuntu 22.04 and 24.04 LTS. This ensures flexibility for various IT environments.
What is the warranty and power supply configuration?
It comes with a 3-year customer-replaceable unit and onsite limited warranty, including 9x5 next business day service. The power supply is a 300W hot-swappable unit with one installed and support for a second for redundancy, ensuring reliable power delivery in server environments.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 3.30 GHz processor for everyday performance and multitasking.
