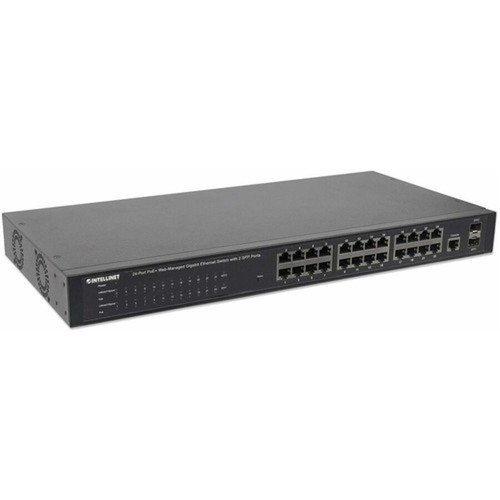

Manhattan 560559 24-Port Gigabit PoE+ Web-Managed Switch - 2 SFP Slots - Layer 2 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 switch operates at Gigabit Ethernet speeds across all 24 ports, supporting 10/100/1000Base-T network technology for backward compatibility with existing infrastructure. The PoE+ ports deliver up to 25.5W per port, sufficient for powering most PoE+ compliant devices without separate power adapters.
The switch includes a comprehensive set of management features accessible via a web interface, providing control over network configuration, monitoring, and security. Key protocols include IGMP snooping for efficient multicast traffic handling, port mirroring for network analysis, and spanning tree for loop prevention.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Manhattan 560559 switch delivers significant advantages for network deployments requiring both connectivity and power distribution. Its combination of high port density, PoE+ support, and management capabilities makes it a cost-effective solution for growing networks.
Simplified Power Delivery
Eliminate the need for separate power supplies at remote device locations by delivering both data and power through standard Ethernet cables.
- 25.5W per PoE+ port
- Single-cable solution for powered devices
- Reduces installation complexity
Network Expansion Ready
The dual SFP slots provide future-proofing for network growth, allowing fiber connections for longer distances or higher bandwidth requirements.
- Fiber uplink capability
- Mixed media support
- Distance extension options
Enterprise-Grade Management
Web-based management interface offers granular control over network configuration without requiring advanced CLI knowledge.
- IGMP snooping
- Port mirroring
- Spanning tree protocol
Deployment / Use Cases
This switch is ideal for environments where both network connectivity and device power need to be distributed efficiently. Its 24-port configuration with PoE+ support makes it particularly suitable for deployments with multiple powered devices.
Common deployment scenarios include office networks with VoIP phone systems, retail environments with IP surveillance cameras, educational facilities with wireless access points, and small business networks requiring both desktop connectivity and device power.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
IP Surveillance Systems
Power and connect multiple IP cameras from a central location, reducing cable clutter and installation costs while maintaining network performance.
Business VoIP Deployments
Support VoIP phone systems by providing both network connectivity and power through a single cable to each desk, simplifying office infrastructure.
Physical Profile
The switch features a compact 1U rack-mountable design with dimensions of 1.73" height, 17.32" width, and 8.19" depth, making it suitable for standard 19-inch server racks. The black finish provides a professional appearance that blends with most rack environments. At approximately 6.83 pounds, the switch offers a solid build quality while remaining manageable for installation in various locations.
- Width
- 17.32" (440 mm)
- Height
- 1.73" (44 mm)
- Weight
- 6.83 lb (3100 g)
- Length
- 8.19" (208 mm)
Highlights
- 24 Gigabit Ethernet ports with PoE+ support for simultaneous data and power delivery
- Dual SFP expansion slots for fiber uplinks or extended distance connections
- Layer 2 switching with IGMP snooping, port mirroring, and spanning tree protocol
- Web-based management interface for easy configuration and monitoring
- 260W power budget supporting PoE+ devices across all ports
- Redundant power supply support for increased reliability
- Rack-mountable 1U form factor with desktop mounting option
- 10/100/1000Base-T auto-negotiation on all copper ports
- Twisted pair media support for cost-effective cabling up to 100 meters
- Black finish suitable for professional rack installations
Specifications
| Specifications | |
|---|---|
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 560559 |
| Brand Name | Manhattan |
| Product Model | 560559 |
| Product Name | 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 260 W |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack-mountable,Desktop |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Length | 8.19" (208 mm) |
| Weight (Approximate) | 6.83 lb (3100 g) |
User Manual
FAQ
How many devices can this switch power simultaneously with PoE+?
The Manhattan 560559 switch features 24 PoE+ ports, each capable of delivering up to 25.5W of power. With a total power budget of 260W, you can power multiple PoE+ devices simultaneously, though the exact number depends on the power requirements of each connected device. The switch intelligently manages power allocation to ensure stable operation across all ports.
What types of SFP modules are compatible with this switch?
This switch includes two dedicated SFP expansion slots that support standard SFP transceiver modules for fiber optic connections. You can use various SFP modules for different fiber types and distances, including multi-mode or single-mode fiber options. The slots are not shared with copper ports, providing dedicated expansion capability for fiber uplinks or longer-distance connections.
Can this switch be used in a rack-mounted configuration?
Yes, the Manhattan 560559 is designed for rack mounting with a standard 1U form factor that fits 19-inch server racks. The switch includes appropriate mounting hardware and has dimensions optimized for rack installation. It can also be used as a desktop switch if rack mounting isn't required, providing deployment flexibility for different environments.
What management features does this web-managed switch include?
This Layer 2 web-managed switch provides comprehensive management capabilities through its web interface, including VLAN configuration, QoS settings, port management, and security features. It supports IGMP snooping for efficient multicast traffic handling, port mirroring for network monitoring and troubleshooting, and spanning tree protocol for loop prevention in redundant network topologies.
What is the maximum cable distance supported by this switch?
The switch supports standard twisted pair Ethernet cabling with a maximum distance of 100 meters (328 feet) per segment when using Cat5e or higher category cables. For fiber connections through the SFP slots, distances vary based on the specific SFP module used, with some modules supporting distances up to several kilometers depending on fiber type and transceiver specifications.
Does this switch support redundant power supplies?
Yes, the Manhattan 560559 switch supports redundant power supply configurations for increased reliability. This feature allows you to connect a secondary power supply that automatically takes over if the primary supply fails, minimizing network downtime. The switch's 260W power consumption rating applies to its operational requirements when powering connected devices.
