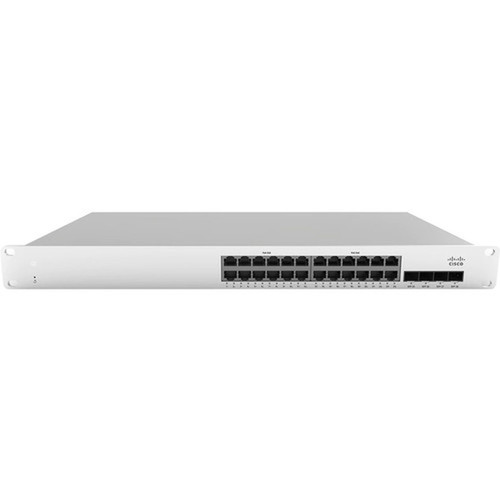

Meraki MS210-24P-HW 24-Port Gigabit Ethernet Switch - 4 SFP Slots - Layer 3 Managed - 448W Power - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The MS210-24P-HW operates as a fully manageable Gigabit Ethernet switch with Layer 3 routing capabilities, supporting network technologies including 1000Base-T and 1000Base-X. It features 24 Gigabit Ethernet network ports and 4 Gigabit Ethernet uplink ports, with 4 dedicated SFP slots for fiber expansion. The switch is designed for high-performance data transfer, accommodating both cost-efficient twisted pair cables and optical fiber connections.
Power management is handled by a single power supply with a consumption rating of 448 watts, ensuring efficient operation without redundant power support. The switch's manageable nature provides administrators with comprehensive control over network configuration, traffic prioritization, and security settings through a centralized dashboard.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Meraki MS210-24P-HW offers distinct advantages for network deployment, combining high port density with advanced management features. Its 24 Gigabit Ethernet ports provide ample connectivity for workstations, servers, and networked devices, while the 4 SFP slots enable fiber uplinks for long-distance or high-bandwidth connections.
Scalable Design
With Layer 3 support and stack port functionality, this switch supports scalable network growth, allowing for complex routing and easy expansion without compromising performance.
- Supports up to 100-meter cable runs
- Modular architecture for future upgrades
Centralized Management
The fully manageable interface gives IT teams precise control over network setup, monitoring, and configuration, reducing administrative overhead and enhancing security.
- Real-time traffic monitoring
- Customizable VLAN configurations
Deployment / Use Cases
The MS210-24P-HW is well-suited for medium to large business environments requiring reliable wired networking. Its high port count and uplink capabilities make it ideal for connecting multiple devices in office settings, educational institutions, or retail locations where stable and fast network access is critical.
In data center applications, the switch's 1U rack-mount design and Gigabit Ethernet performance support server connectivity and backbone networking. The SFP slots allow for fiber optic connections to other switches or network segments, enabling extended reach and reduced latency in distributed networks.
Office Network Core
Deploy as the central switch in an office to connect desktops, printers, and IP phones, with uplinks to routers or other switches for internet and inter-office communication.
Data Center Aggregation
Use in server racks to aggregate traffic from multiple servers, leveraging Layer 3 routing for efficient data flow and SFP slots for high-speed uplinks to core switches.
Physical Profile
The switch measures 1.72 inches in height, 19.08 inches in width, and 9.84 inches in depth, with an approximate weight of 8.18 pounds. Its compact 1U form factor ensures it occupies minimal rack space while providing full functionality. The rack-mountable design includes standard mounting hardware compatibility, facilitating easy installation in existing rack systems without additional modifications.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.72" (43.69 mm), 19.08" (484.63 mm), 9.84" (249.94 mm), 8.18 lb (3710.39 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 19.08" (484.63 mm)
- Depth
- 9.84" (249.94 mm)
- Height
- 1.72" (43.69 mm)
- Weight
- 8.18 lb (3710.39 g)
Highlights
- 24 Gigabit Ethernet ports for high-density connectivity
- 4 SFP slots for fiber optic expansion and uplinks
- Layer 3 routing support for scalable network design
- Fully manageable with centralized control and monitoring
- 1U rack-mountable form factor for space-efficient deployment
- 448W power consumption for efficient operation
- Supports twisted pair and optical fiber media types
- Stack port enabled for easy network expansion
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | MS210-24P-HW |
| Brand Name | Meraki |
| Product Series | MS210 |
| Product Model | MS210-24P |
| Product Name | MS210-24P Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x Gigabit Ethernet Uplink |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Power Consumption | 448 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.69 mm) |
| Width | 19.08" (484.63 mm) |
| Depth | 9.84" (249.94 mm) |
| Weight (Approximate) | 8.18 lb (3710.39 g) |
FAQ
How many ports does the Meraki MS210-24P-HW switch have?
The Meraki MS210-24P-HW features 24 Gigabit Ethernet network ports and 4 dedicated Gigabit Ethernet uplink ports, providing a total of 28 ports for connectivity. This includes 4 SFP slots for fiber optic expansion, allowing flexible network design and high-speed uplinks.
What is the power consumption of this switch?
The switch has a power consumption of 448 watts. It operates on a single power supply without redundant power support, making it suitable for environments where basic power reliability is sufficient and energy efficiency is a consideration.
Does this switch support Layer 3 routing?
Yes, the MS210-24P-HW supports Layer 3 routing, enabling advanced network functions such as inter-VLAN routing and scalable network design. This allows for more complex topologies and improved traffic management compared to basic Layer 2 switches.
Can I use fiber optic connections with this switch?
Yes, the switch supports optical fiber connections through its 4 dedicated SFP slots. These slots accommodate SFP modules for fiber optic uplinks, providing options for long-distance or high-bandwidth network segments alongside the standard twisted pair Ethernet ports.
Is the Meraki MS210-24P-HW rack-mountable?
Yes, the switch is designed with a 1U rack-mountable form factor, compatible with standard 19-inch racks. Its dimensions of 1.72 inches in height, 19.08 inches in width, and 9.84 inches in depth ensure it fits neatly into rack environments without occupying excessive space.
What management capabilities does this switch offer?
The MS210-24P-HW is fully manageable, providing centralized control over network setup, configuration, and monitoring. This includes features like VLAN configuration, traffic prioritization, and security settings, accessible through a dashboard for efficient network administration.
