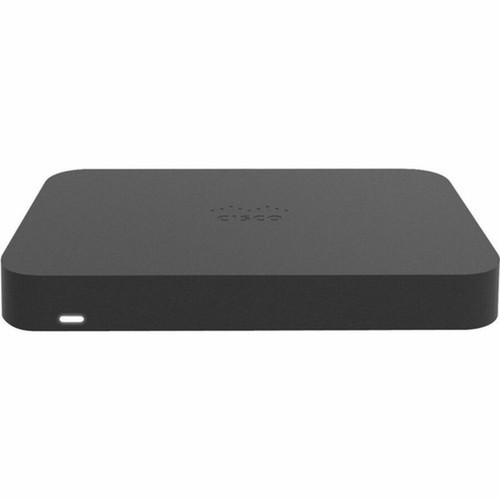

Meraki Z4-HW Network Security Firewall Appliance - 5-Port Gigabit Ethernet - 500 Mbit/s Throughput - Desktop/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Z4-HW features five Gigabit Ethernet ports that operate on the 10/100/1000Base-T standard, providing flexible connectivity for LAN and WAN configurations. One of these ports supports Power over Ethernet (PoE), allowing you to power compatible devices like IP phones or access points over a single cable, simplifying installations in locations without direct power access.
Integrated wireless LAN supports the IEEE 802.11 a/b/g/n/ac/ax standard, enabling secure Wi-Fi connectivity for remote workers and mobile devices. The appliance is fully manageable through the Meraki cloud dashboard, offering centralized control and monitoring for streamlined network administration.
Relevant factors for this section include Firewall Protection Supported, Firewall Throughput, Total Number of Ports, PoE (RJ-45) Port. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Meraki Z4-HW delivers a balanced combination of security, performance, and deployment flexibility, making it an ideal choice for organizations needing reliable edge protection without complex infrastructure.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Speed Security, Versatile Connectivity.
High-Speed Security
With 500 Mbit/s firewall throughput and advanced protection features, this appliance ensures secure data flow without compromising network performance, suitable for bandwidth-intensive applications.
- Dynamic stateful firewall
- Traffic shaping capabilities
- IPv6 attack protection
Versatile Connectivity
Five Gigabit Ethernet ports and integrated Wi-Fi provide multiple connectivity options, supporting both wired and wireless network setups in diverse deployment scenarios.
- PoE port for powered devices
- Dual-band Wi-Fi support
- Easy LAN/WAN configuration
Deployment / Use Cases
The Z4-HW is engineered for branch office networks, small business environments, and remote work setups where secure, manageable connectivity is critical. Its compact size and flexible mounting options allow it to fit seamlessly into various physical spaces, from desktop installations to wall-mounted configurations.
Common use cases include securing branch office internet connections, providing VPN access for remote employees, and serving as a primary firewall for small to medium-sized networks. The PoE port enables direct powering of devices like VoIP phones or security cameras, reducing cable clutter and installation complexity.
Branch Office Security
Deploy as the primary firewall at remote sites to protect local networks while maintaining secure connectivity to headquarters via VPN tunnels.
Remote Work Enablement
Provide employees with secure, high-speed internet access and VPN capabilities from home offices or temporary locations, supported by cloud-based management.
Physical Profile
The Z4-HW features a slim, compact design measuring 7.25" in height, 1.10" in width, and 4.84" in depth, with an approximate weight of 13.76 oz. Its desktop and wall-mountable form factor offers installation flexibility, allowing placement on shelves, desks, or mounted vertically to save space in network closets or office environments.
- Width
- 1.10" (28 mm)
- Depth
- 4.84" (123 mm)
- Height
- 7.25" (184.20 mm)
- Weight
- 13.76 oz (390.09 g)
Highlights
- Five Gigabit Ethernet ports with PoE support on one port
- 500 Mbit/s firewall throughput for high-performance security
- Integrated wireless LAN with IEEE 802.11 a/b/g/n/ac/ax support
- Dynamic stateful firewall, traffic shaping, and IPv6 attack protection
- 31.25 MB/s VPN throughput for secure remote access
- Cloud-managed via Meraki dashboard for centralized control
- Desktop or wall-mountable form factor for flexible installation
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | Z4-HW |
| Brand Name | Cisco Meraki |
| Product Model | Z4 |
| Product Name | Z4 Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Dynamic Stateful Firewall,Traffic Shaping,IPv6 Attack |
| Firewall Throughput | 500 Mbit/s |
| Interfaces/Ports | |
| Total Number of Ports | 5 |
| PoE (RJ-45) Port | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Media & Performance | |
| VPN Throughput | 31.25 MB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T |
| Wireless Specifications | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Consumption | 42 W |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable |
| Height | 7.25" (184.20 mm) |
| Width | 1.10" (28 mm) |
| Depth | 4.84" (123 mm) |
| Weight (Approximate) | 13.76 oz (390.09 g) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the firewall throughput of the Meraki Z4-HW?
The Meraki Z4-HW delivers 500 Mbit/s firewall throughput, providing robust security performance for branch office and small business networks. This throughput supports dynamic stateful firewall, traffic shaping, and IPv6 attack protection, ensuring efficient handling of network traffic while maintaining secure data transfer across your infrastructure.
How many Ethernet ports does this appliance have?
This appliance features five Gigabit Ethernet ports that operate on the 10/100/1000Base-T standard. One of these ports supports Power over Ethernet (PoE), allowing you to power compatible devices like IP phones or access points directly through the network cable, simplifying installations in locations without convenient power outlets.
Does the Z4-HW include wireless connectivity?
Yes, the Z4-HW includes integrated wireless LAN that supports the IEEE 802.11 a/b/g/n/ac/ax standard. This provides dual-band Wi-Fi connectivity for secure access by remote workers and mobile devices, complementing the wired Ethernet ports to offer flexible network deployment options in various environments.
What are the physical dimensions and mounting options?
The appliance measures 7.25 inches in height, 1.10 inches in width, and 4.84 inches in depth, with an approximate weight of 13.76 ounces. It supports both desktop placement and wall mounting, offering installation flexibility for space-constrained environments like network closets, office desks, or mounted configurations in branch locations.
How is the Z4-HW managed and configured?
The Z4-HW is fully manageable through the Meraki cloud dashboard, providing centralized control and monitoring capabilities. This cloud-based management simplifies configuration, updates, and troubleshooting, allowing network administrators to maintain security policies and monitor performance remotely without requiring on-site technical visits.
What warranty coverage does this product include?
The Meraki Z4-HW comes with a lifetime limited warranty, offering long-term reliability assurance for your network investment. This warranty coverage supports the appliance's durability in continuous operation environments, providing peace of mind for deployments in branch offices, small businesses, and remote work setups.
