Product Features
Technical Overview
Engineered for stability and efficiency, the B550M PRO-VDH WIFI features a 4+2+1 power phase design that ensures reliable power delivery to the CPU, supporting overclocking headroom for unlocked Ryzen processors. The memory subsystem supports up to 128GB of DDR4 RAM across four DIMM slots, with speeds ranging from 1866 MHz to 4400 MHz, allowing users to optimize for performance or cost.
Storage management is handled by a Serial ATA/600 controller with RAID 0, 1, and 10 support, enabling data redundancy or performance striping across connected drives. The onboard audio delivers 7.1-channel surround sound through dedicated audio capacitors and isolation, while the rear I/O panel includes HDMI, DisplayPort, and VGA outputs for display connectivity dependent on the installed CPU's integrated graphics.
Relevant factors for this section include Chipset Manufacturer, Chipset Model, Total Processor Supported, Number of Memory Slots. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This motherboard stands out with its balanced feature set that caters to both mainstream users and enthusiasts. The inclusion of Wi-Fi and Bluetooth simplifies network and peripheral connections, reducing cable clutter and installation steps. The robust VRM cooling and expanded heatsink design maintain component temperatures under load, supporting sustained performance during gaming or content creation tasks.
Enhanced Connectivity
With six USB ports on the rear panel and seven onboard headers, the board supports a wide array of peripherals, from keyboards and mice to external storage and VR devices.
- 2 x USB 2.0 ports for legacy devices
- 4 x USB 3.2 ports for high-speed transfers
- Onboard headers for front-panel USB expansion
Future-Proof Expansion
The PCIe 4.0 x16 slot and dual M.2 interfaces ensure compatibility with next-generation graphics cards and NVMe SSDs, offering significantly higher bandwidth than previous standards.
- Supports PCIe 4.0 graphics cards
- M.2 slots for NVMe or SATA SSDs
- Backward compatible with PCIe 3.0 devices
Deployment / Use Cases
Ideal for compact desktop builds, the Micro ATX form factor fits into smaller cases without sacrificing essential features, making it a top choice for home offices, gaming rigs, and general-purpose workstations. The board's support for Ryzen PRO processors and RAID configurations also positions it well for small business environments where data integrity and system reliability are priorities.
Gamers will appreciate the PCIe 4.0 support for high-frame-rate gaming and fast storage loading times, while content creators can leverage the dual M.2 slots for rapid project file access. The integrated Wi-Fi and Bluetooth enable clean setups in living rooms or shared spaces, and the 7.1-channel audio provides an immersive experience for multimedia consumption.
Compact Gaming PC
Pair this motherboard with a Ryzen 5 or Ryzen 7 processor, a mid-range graphics card, and fast DDR4 memory to build a powerful gaming system that fits in a Micro ATX case.
Small Business Workstation
Utilize Ryzen PRO processors and RAID 1 mirroring for a dependable office PC that handles daily productivity tasks with enhanced data protection.
Physical Profile

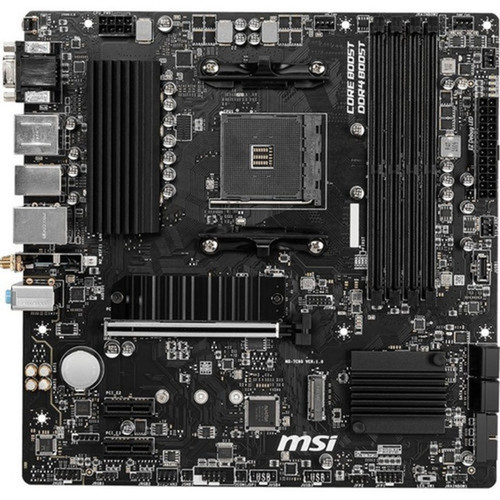

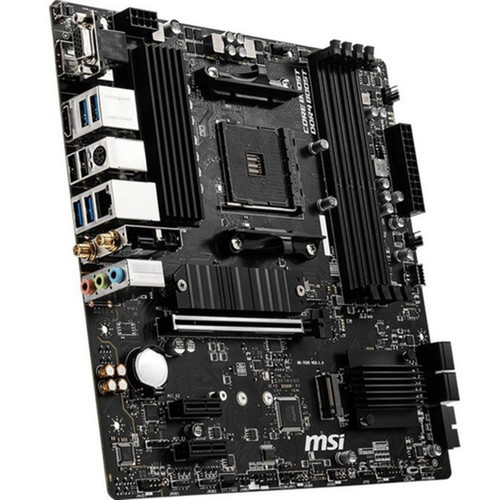

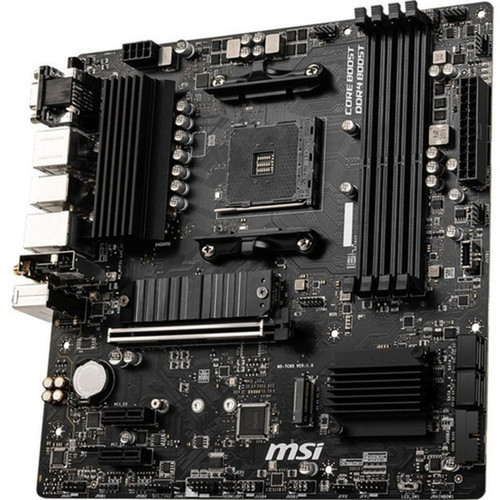

The board measures 9.60 inches square, adhering to the Micro ATX standard for compatibility with a wide range of case sizes. The layout places the CPU socket centrally, with DIMM slots to the right and expansion slots below, optimizing airflow and cable management. The rear I/O shield is pre-installed, simplifying installation, and the overall design uses dark PCB coloring with contrasting slots for clear component identification.
- Width
- 9.60" (243.84 mm)
- Depth
- 9.60" (243.84 mm)
Highlights
- Supports AMD Ryzen processors (Ryzen 3/5/7/9/PRO) via Socket AM4
- Micro ATX form factor for compact desktop builds
- DDR4 memory support up to 128GB across four DIMM slots
- Integrated Wi-Fi 802.11ac and Bluetooth 4.2 for wireless connectivity
- PCI Express 4.0 support on the primary x16 slot for high-speed expansion
- Dual M.2 interfaces and four SATA ports for flexible storage options
- 7.1-channel HD audio with dedicated audio capacitors
- Gigabit Ethernet port for wired network connections
- RAID 0, 1, and 10 support for data redundancy or performance
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | MSI |
| Manufacturer Part Number | B550MPVDHWIFI |
| Brand Name | MSI |
| Product Series | PRO |
| Product Model | B550M PRO-VDH WIFI |
| Product Name | B550M PRO-VDH WIFI Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3,Ryzen 5,Ryzen 7,Ryzen 9,Ryzen 7 PRO,Ryzen 5 Pro |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 1866 MHz,2133 MHz,2400 MHz,2667 MHz,2800 MHz,2933 MHz,3000 MHz,3066 MHz,3200 MHz,3466 MHz,3600 MHz,3733 MHz,3866 MHz,4000 MHz,4133 MHz,4266 MHz,4400 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,10,1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 4.2 |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 4.0,PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 4 |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of Onboard USB 3.2 Ports | 3 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this motherboard?
The MSI B550M PRO-VDH WIFI supports AMD Ryzen processors using the Socket AM4 interface. This includes Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, and Ryzen PRO series CPUs. Compatibility spans from entry-level models to high-performance chips, allowing for flexible system configurations based on your performance needs and budget.
How much RAM can this motherboard support?
This motherboard supports up to 128GB of DDR4 memory across its four DIMM slots. It accommodates standard UDIMM modules and supports speeds from 1866 MHz up to 4400 MHz, depending on the installed CPU and memory kit. This capacity is sufficient for demanding applications like video editing, gaming, and virtualization.
Does this motherboard have built-in Wi-Fi and Bluetooth?
Yes, the B550M PRO-VDH WIFI includes integrated Wi-Fi 802.11ac and Bluetooth 4.2. The Wi-Fi supports dual-band connectivity for reliable wireless networking, while Bluetooth enables connections to peripherals like headphones, keyboards, and mice without additional adapters, simplifying your setup.
What storage options are available on this board?
The motherboard provides two M.2 interfaces for NVMe or SATA SSDs and four SATA 6Gb/s ports for traditional hard drives or SSDs. The M.2 slots support PCIe 4.0 on the primary slot for maximum speed, and the SATA controller supports RAID 0, 1, and 10 configurations for data redundancy or performance improvements.
What expansion slots does this Micro ATX motherboard include?
It features three PCI Express slots: one PCIe 4.0 x16 slot for graphics cards and two PCIe 3.0 x1 slots for additional expansion cards like sound cards or network adapters. This layout allows for a dedicated GPU while leaving room for other peripherals, making it versatile for various build types.
What is the warranty period for this motherboard?
MSI provides a 3-year limited warranty for the B550M PRO-VDH WIFI motherboard. This warranty covers manufacturing defects and ensures reliable support for your investment, aligning with typical industry standards for desktop components and offering peace of mind for long-term use.
