MSI CUBI512M030 Cubi 5 12M-030US Mini PC - Intel Core i3-1215U 12th Gen - 8GB DDR4 - 256GB NVMe SSD - Windows 11 Home
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Cubi 5 12M-030US is the Intel Core i3-1215U, a 12th Gen processor with 10 cores (2 Performance-cores and 8 Efficient-cores) and a maximum turbo frequency of 4.40 GHz. This CPU architecture provides a balance of single-threaded speed and multi-threaded efficiency, supported by Intel's integrated Iris Xe Graphics for everyday graphical workloads.
System memory is configured as a single 8GB DDR4 SDRAM module, offering a straightforward path for future upgrades. Storage is handled by a 256GB PCI Express NVMe SSD in the M.2 form factor, delivering significantly faster data access than traditional hard drives. The system draws power from a 65W external adapter, contributing to its energy-efficient operation.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Cubi 5 12M-030US excels in delivering desktop-level performance in an exceptionally small footprint. Its combination of modern Intel processing, fast storage, and comprehensive connectivity makes it a versatile solution for a wide range of business and personal computing needs.
Space-Saving Design
With dimensions of just 4.88" x 4.88" x 2.11" and weighing only 1.21 pounds, this Mini PC can be mounted behind a monitor or tucked away discreetly, freeing up valuable desk space.
- VESA mount compatible
- Minimal footprint
- Lightweight construction
Modern Connectivity Suite
Equipped with both 2.5 Gigabit and Gigabit Ethernet ports, Wi-Fi 6 wireless, Bluetooth, four USB 3.2 Gen 2 ports, and a Thunderbolt 4 port for high-speed data transfer and display connectivity.
- Thunderbolt 4 for fast data transfer
- Dual Ethernet for network flexibility
- Multiple high-speed USB ports
Deployment / Use Cases
This Mini PC is well-suited for environments where physical space is at a premium but reliable computing performance is still required. Its compact size and capable specifications make it an excellent choice for digital signage, kiosk systems, or as a dedicated workstation in crowded office layouts.
For home users, it serves as a discreet media center PC or a compact desktop for everyday tasks like web browsing, document editing, and video streaming. Businesses can deploy it in reception areas, conference rooms, or retail settings where a full-sized tower would be impractical.
Office & Business Environments
Ideal for general office productivity, point-of-sale systems, or as a thin client in virtual desktop infrastructure (VDI) deployments, thanks to its small size and standard Windows 11 environment.
Home & Entertainment Setup
Functions well as a compact home theater PC (HTPC) or a space-saving desktop for family computing needs, with enough power for everyday applications and media consumption.
Localization and Operating System
The MSI Cubi 5 12M-030US ships with Microsoft Windows 11 Home pre-installed, providing a modern and intuitive operating system that supports productivity, creativity, and everyday computing tasks right out of the box. Windows 11 Home includes features like the redesigned Start Menu, Snap Layouts for efficient window management, and integrated Microsoft Teams, making it suitable for both personal and light business use.
This Mini PC is configured for general English-language markets, with the operating system and default software set to English. The keyboard layout and input methods are optimized for standard US English usage, ensuring compatibility with common peripherals and software applications. The pre-loaded Windows 11 environment eliminates the need for separate OS installation, allowing for immediate deployment in home offices, educational settings, or small business environments where quick setup is essential.
Physical Profile

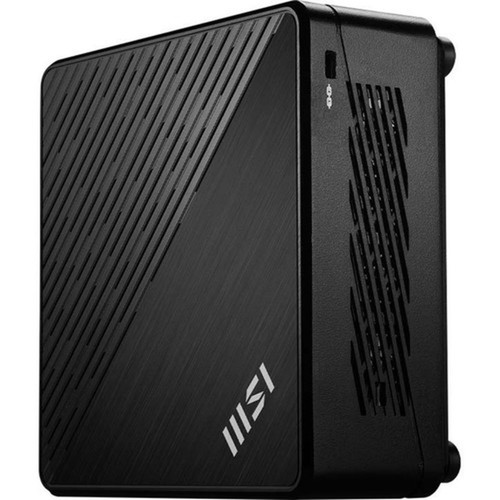

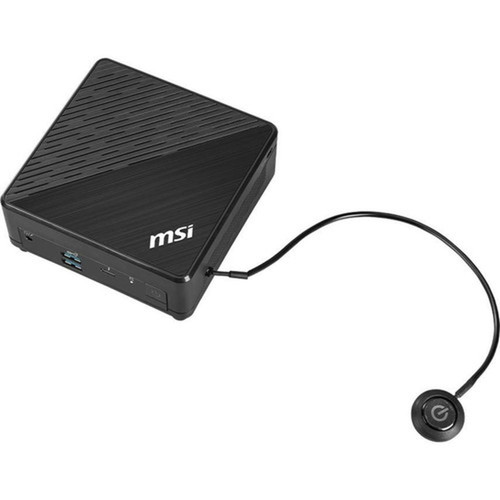

The Cubi 5 12M-030US adopts a minimalist cubic design measuring 4.88 inches in width and depth, and 2.11 inches in height. Weighing approximately 1.21 pounds, it's exceptionally portable and can be easily mounted using standard VESA brackets. The chassis includes a security slot for theft prevention in public or shared environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.11" (53.59 mm), 4.88" (123.95 mm), 4.88" (123.95 mm), 1.21 lb (548.85 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.88" (123.95 mm)
- Depth
- 4.88" (123.95 mm)
- Height
- 2.11" (53.59 mm)
- Weight
- 1.21 lb (548.85 g)
What's in the Box
The package includes all essential components to get started immediately.
Package contents include Cubi 5 12M-030US Mini PC Power Adapter, Cubi 5 12M-030US Mini PC. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i3-1215U 12th Gen processor with 10 cores and up to 4.40 GHz turbo speed
- 8GB DDR4 SDRAM memory for smooth multitasking and application performance
- 256GB PCI Express NVMe SSD for fast boot times and responsive application loading
- Intel Iris Xe Graphics for everyday visual tasks and multimedia playback
- Windows 11 Home operating system pre-installed for immediate productivity
- Compact Mini PC form factor (4.88" x 4.88" x 2.11") ideal for space-constrained environments
- Comprehensive connectivity including 2.5 Gigabit Ethernet, Wi-Fi 6, Bluetooth, and Thunderbolt 4
- Includes power adapter and is ready for VESA mounting behind displays
Specifications
| Specifications | |
|---|---|
| Manufacturer | MSI |
| Manufacturer Part Number | CUBI512M030 |
| Brand Name | MSI |
| Product Line | Cubi 5 |
| Product Model | Cubi 5 12M-030US |
| Product Name | Cubi 5 12M-030US Mini PC |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i3 |
| Processor Generation | 12th Gen |
| Processor Model | i3-1215U |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 3.30 GHz |
| Maximum Turbo Speed | 4.40 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Configuration | 1 x 8GB |
| Storage | |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe |
| SSD Form Factor | M.2 |
| Optical Drive Type | No |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | RTL8125BG-CG,RTL8111H |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Number of Thunderbolt 4 Ports | 1 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Home |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 2.11" (53.59 mm) |
| Width | 4.88" (123.95 mm) |
| Depth | 4.88" (123.95 mm) |
| Weight (Approximate) | 1.21 lb (548.85 g) |
| Miscellaneous | |
| Package Contents | Cubi 5 12M-030US Mini PC Power Adapter |
| Features | Security Slot |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What processor does this product use?
This product uses the Core i3 processor for everyday performance and multitasking.
How much memory is installed?
It includes 8 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 256 GB of storage for applications, files, and everyday business data.
What graphics or display support is listed?
It features a display specification of Intel, giving you clear visuals for work and media use.
What connectivity options are available?
Connectivity options include 2.5 Gigabit Ethernet,Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
