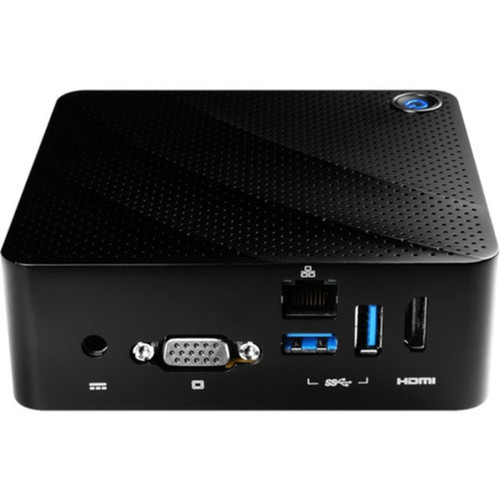

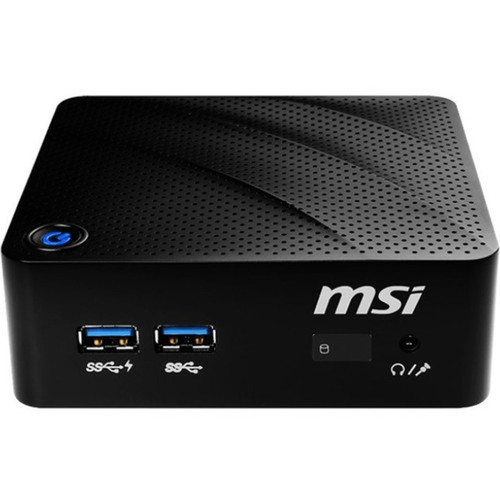

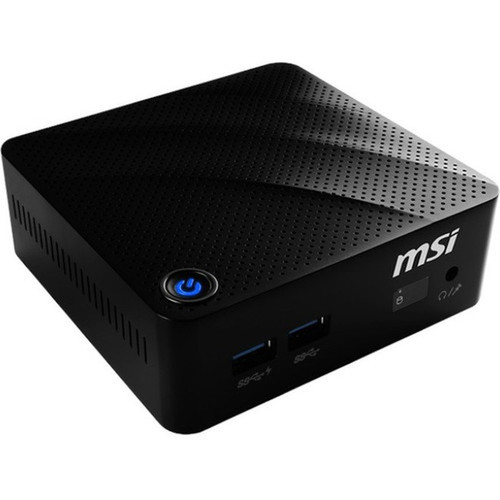

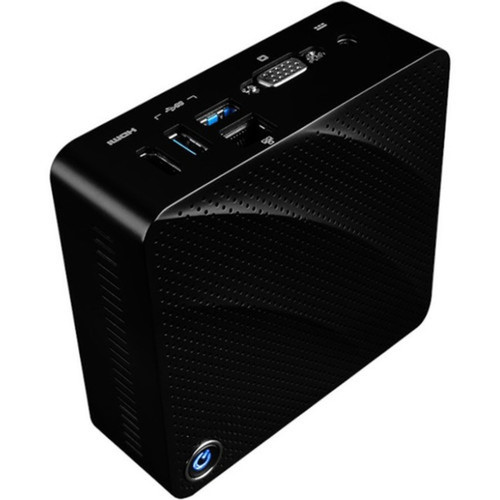

MSI CUBINADL020B Cubi N ADL Barebone System - Intel N100 Quad-Core - 64GB DDR4 - WiFi - Gigabit Ethernet - Windows 10 Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Cubi N ADL system is the Intel N100 processor, a quad-core chip with a maximum turbo frequency of 3.40 GHz. This processor utilizes the BGA-1264 socket and features Intel UHD Graphics for display output. The platform supports up to 64 GB of DDR4 memory across two available slots, providing flexibility for memory configuration.
Storage options include both traditional SATA connectivity and an M.2 interface for modern NVMe drives. The system includes one expansion bay for additional storage devices. Power delivery is handled by a 65W external adapter, with the processor itself operating at a thermal design power of just 6W for energy-efficient operation.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Cubi N ADL system combines compact dimensions with versatile connectivity, making it adaptable to various deployment scenarios. Its small form factor doesn't compromise on essential features, providing comprehensive I/O options in a minimal footprint.
Comprehensive Connectivity
Dual Gigabit Ethernet ports ensure reliable wired networking, while IEEE 802.11ac wireless support provides flexible connectivity options. The system includes five USB ports with modern USB 3.2 Gen 2 Type-C support alongside traditional USB 3.2 Gen 1 ports.
- 2x Gigabit Ethernet ports
- IEEE 802.11ac WiFi
- USB 3.2 Gen 2 Type-C port
Display Flexibility
Both HDMI and DisplayPort outputs are available, supporting multiple monitor configurations for productivity workflows. The integrated Intel UHD Graphics handles everyday display tasks efficiently.
- HDMI output
- DisplayPort output
- Dual monitor support
Deployment / Use Cases
The MSI Cubi N ADL barebone system excels in environments where space is at a premium but full computing functionality is required. Its compact dimensions and versatile connectivity make it suitable for various professional and personal applications.
In office settings, this system can serve as a space-efficient workstation for general productivity tasks, document processing, and web-based applications. The dual Ethernet ports make it suitable for network-attached deployments where wired reliability is preferred. For home use, the system works well as a media center component, home office computer, or educational workstation where its small footprint and quiet operation are advantageous.
Office Workstation
Ideal for general office productivity with Windows 10 support, multiple USB ports for peripherals, and compact design that fits in tight spaces.
- Space-efficient design
- Windows 10 compatible
- Multiple peripheral support
Digital Signage & Kiosk
The small form factor and comprehensive video outputs make this system suitable for digital signage applications, information kiosks, or point-of-sale terminals.
- Compact chassis
- HDMI & DisplayPort outputs
- Low power consumption
Physical Profile
Measuring just 2.11" in height with a 4.88" square footprint, the Cubi N ADL system occupies minimal desk or shelf space. The black finish provides a professional appearance that blends into various environments. At approximately 1 pound, the system is easily portable between locations when needed. The compact dimensions make it suitable for mounting behind displays or in confined spaces where traditional desktop systems wouldn't fit.
- Width
- 4.88" (124 mm)
- Depth
- 4.88" (124 mm)
- Height
- 2.11" (53.70 mm)
- Weight
- 1 lb (453.59 g)
What's in the Box
This barebone system package includes all essential components to begin your build, requiring only memory and storage to complete a functional computer.
Highlights
- Intel N100 quad-core processor with up to 3.40 GHz turbo frequency
- Supports up to 64 GB DDR4 memory across two available slots
- Compact barebone design measuring just 2.11" × 4.88" × 4.88"
- Dual Gigabit Ethernet ports plus IEEE 802.11ac wireless connectivity
- Five USB ports including USB 3.2 Gen 2 Type-C for modern peripherals
- HDMI and DisplayPort outputs for flexible display configurations
- Windows 10 Home and Pro operating system support
- Energy-efficient design with 6W TDP processor and ErP compliance
- Includes SATA and M.2 storage interfaces for configuration flexibility
- Black finish with professional appearance for office environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | MSI |
| Manufacturer Part Number | CUBINADL020B |
| Brand Name | MSI |
| Product Line | Cubi N ADL |
| Product Model | Cubi N ADL-020BUS |
| Product Name | Cubi N ADL-020BUS Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Socket | Socket BGA-1264 |
| Processor Type | N-series |
| Processor Model | N100 |
| Processor Core | Quad-core (4 Core) |
| Maximum Turbo Speed | 3.40 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 1 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Number of SATA Interfaces | 1 |
| Operating System | |
| Operating System Supported | Windows 10 Home,Windows 10 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Thermal Design Power | 6 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 2.11" (53.70 mm) |
| Width | 4.88" (124 mm) |
| Depth | 4.88" (124 mm) |
| Weight (Approximate) | 1 lb (453.59 g) |
| Miscellaneous | |
| Package Contents | Cubi N ADL-020BUS Barebone System AC Adapter |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What components do I need to add to make this barebone system operational?
To complete this barebone system, you'll need to add DDR4 memory (up to 64GB across two slots) and storage (either SATA or M.2 format). The system includes the chassis, motherboard, power supply, and cooling solution, so memory and storage are the primary components required for a functional computer. You may also need to install your preferred operating system, though the system supports Windows 10 Home and Pro editions.
What processor is included in the MSI Cubi N ADL system?
This system includes the Intel N100 processor, a quad-core chip with a base frequency that can turbo up to 3.40 GHz. The processor utilizes the BGA-1264 socket and features Intel UHD Graphics for display output. This efficient processor is designed for everyday computing tasks with a thermal design power of just 6W, making it suitable for compact, fanless, or low-noise deployments.
What networking options does this system provide?
The Cubi N ADL offers both wired and wireless networking capabilities. For wired connections, it includes two Gigabit Ethernet ports, allowing for network teaming or separate network segment connections. Wireless connectivity is provided through IEEE 802.11ac WiFi, supporting fast wireless networking for environments where Ethernet cabling isn't practical. This dual approach ensures reliable connectivity in various deployment scenarios.
What display outputs are available on this barebone system?
The system provides both HDMI and DisplayPort outputs, giving you flexibility in monitor selection and configuration. These outputs are driven by the integrated Intel UHD Graphics, which supports everyday display tasks and can handle multiple monitors. This makes the system suitable for productivity setups requiring extended desktop space or for digital signage applications where specific video outputs are needed.
What storage expansion options does this system support?
Storage expansion is supported through both traditional and modern interfaces. The system includes one SATA interface for 2.5" or 3.5" drives and one M.2 interface that can accommodate NVMe or SATA M.2 drives. Additionally, there's one expansion bay that can be used for additional storage devices. This combination allows for flexible storage configurations based on performance requirements and capacity needs.
Is this system suitable for office deployment environments?
Yes, the Cubi N ADL is well-suited for office environments due to its compact size, professional black finish, and comprehensive connectivity. The system supports Windows 10, includes multiple USB ports for peripherals, offers both wired and wireless networking, and operates quietly with efficient power consumption. Its small footprint makes it ideal for space-constrained offices, reception areas, or workstations where desk space is limited.
