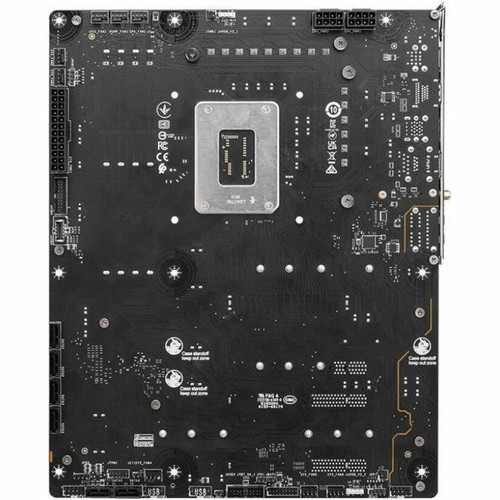

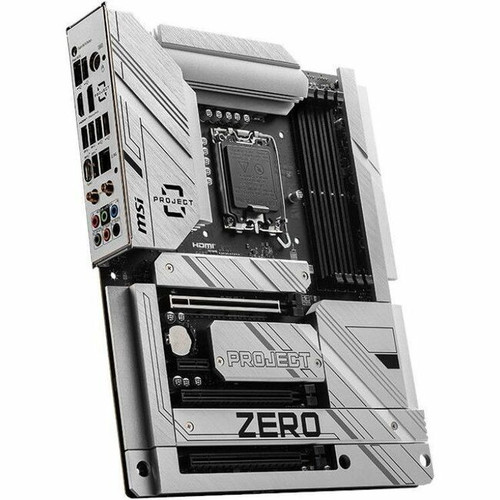

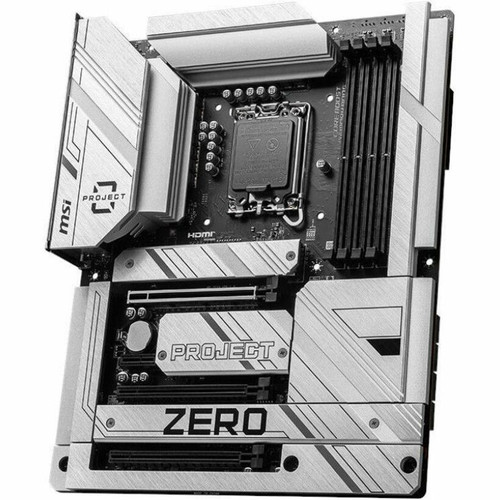

MSI PROJECT ZERO ATX Desktop Motherboard Intel Chipset Socket LGA1700 Supports Pentium Gold Celeron And Core Processors 192 Z790PROJECTZERO
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Chipset Manufacturer: Intel
Chipset Model: Z790
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 14th Gen,13th Gen,12th Gen
Processor Supported: Pentium Gold,Celeron,Core
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 192 GB
Memory Speed Supported: 7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 3
PCI Express Standard: PCI Express 5.0,PCI Express 4.0,PCI Express 3.0
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 1
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
- Compatible Pentium Gold processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- Enjoy the freedom of Wi-Fi and connect devices faster
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 4 USB 2.0 ports, transfer several documents without error
[custom-specifications]
| Specifications | |
| Manufacturer | MSI |
| Manufacturer Part Number | Z790 PROJECT ZERO |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Model | Z790 PROJECT ZERO |
| Product Name | Z790 PROJECT ZERO Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 14th Gen,13th Gen,12th Gen |
| Processor Supported | Pentium Gold,Celeron,Core |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported | 7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| I/O Expansions | |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 5.0,PCI Express 4.0,PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
[/custom-specifications]
