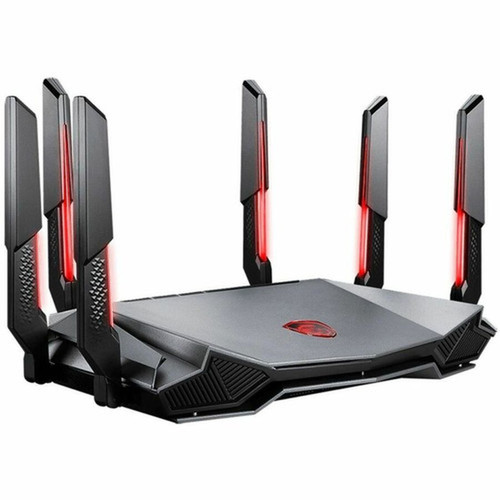

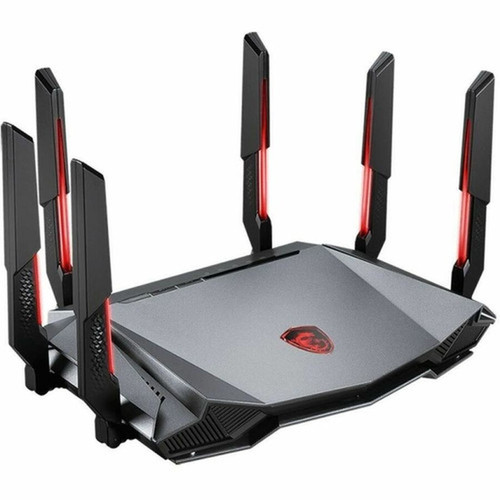

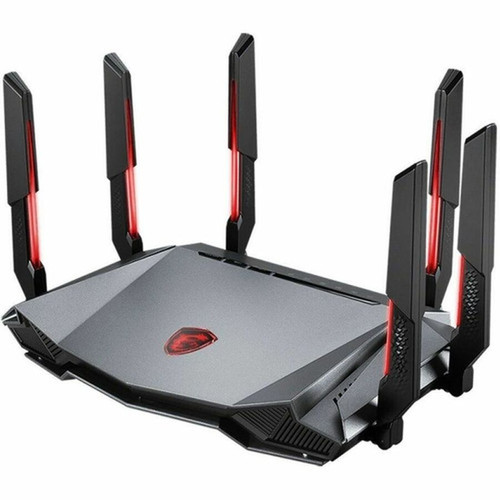

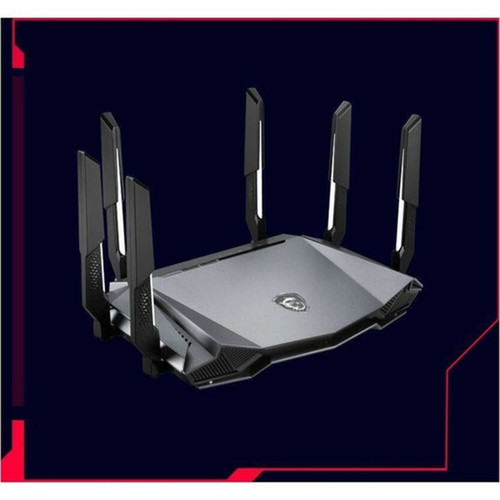

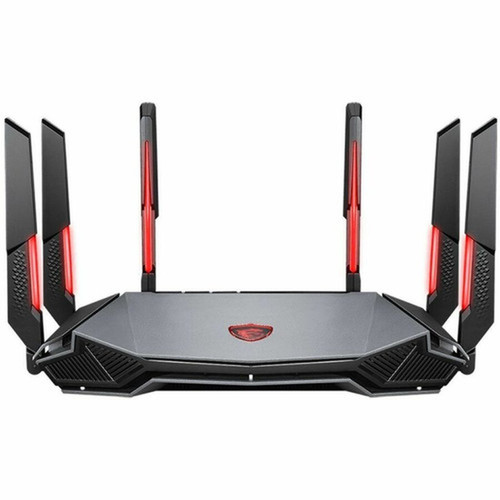

MSI RADIX AXE6600 Wi-Fi 6E Tri-Band Wireless Router - 6 GHz Support - 10GbE - Quad-Core 1. 8 GHz
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This router's technical architecture is built around the IEEE 802.11ax (Wi-Fi 6E) standard, which introduces OFDMA and MU-MIMO technologies for improved efficiency in multi-device environments. The tri-band design segregates traffic across three independent radios: one 2.4 GHz band (ISM, up to 2.40 GHz), one 5 GHz band, and one 6 GHz band (UNII, up to 6 GHz), significantly reducing congestion and interference.
The 10 Gigabit Ethernet backbone ensures that wired connections do not become a bottleneck, making it suitable for connecting to high-speed internet services or acting as a central switch in a mixed wired/wireless network. The inclusion of both ISM and UNII band support allows the router to connect a wide range of legacy and modern Wi-Fi devices, from computers and printers to game consoles and IoT equipment, ensuring comprehensive compatibility.
Key Product Advantages
The RADIX AXE6600 distinguishes itself with a combination of cutting-edge wireless technology and robust hardware design. Its six external antennas are strategically positioned to provide optimal omnidirectional coverage, which is essential for eliminating dead zones in office spaces or larger homes. The built-in USB port adds functionality by allowing network-attached storage or printers to be shared seamlessly across all connected devices, enhancing productivity and resource utilization.
Future-Ready 6 GHz Band
Access the uncongested 6 GHz spectrum for ultra-low latency and high-bandwidth applications, providing a clear path for next-generation Wi-Fi devices and reducing interference from older networks.
High-Speed Wired Backbone
10 Gigabit Ethernet technology future-proofs your network infrastructure, allowing the router to handle multi-gigabit internet plans and facilitate fast data transfers between wired devices without performance degradation.
Enhanced Processing Power
The dedicated quad-core 1.8 GHz CPU efficiently manages Quality of Service (QoS), security protocols, and traffic routing for numerous connected devices, maintaining stable performance under heavy load.
Deployment / Use Cases
This router is ideally suited for small to medium-sized businesses requiring a reliable, high-throughput network to support VoIP systems, video conferencing, and cloud-based applications simultaneously. Its tri-band capability effectively segments guest traffic, IoT devices, and critical business operations onto separate bands, ensuring priority traffic remains unaffected by less important network activity.
In advanced home office or prosumer environments, the RADIX AXE6600 supports intensive use cases such as 4K/8K media streaming, competitive online gaming, and large file transfers. The 6 GHz band is particularly valuable in densely populated areas or multi-dwelling units where traditional bands are saturated, offering a clean channel for high-performance devices. Its physical footprint and standard design allow for flexible placement on a desk, shelf, or in a network rack setup.
Business Office Network
Serve as the central wireless hub for an office, providing stable connectivity for dozens of employees, networked printers, and VoIP phones while maintaining a secure guest network.
High-Density Residential
Eliminate Wi-Fi congestion in apartments or townhouses by utilizing the 6 GHz band for primary devices, ensuring smooth streaming, gaming, and video calls even in crowded RF environments.
Physical Profile
The router features a substantial, functional chassis measuring 13.30 inches in width, 8.80 inches in depth, and 7.80 inches in height, providing ample internal space for heat dissipation and component layout. Weighing approximately 2.50 pounds, it has a stable base suitable for desktop placement. The design accommodates six adjustable external antennas, allowing for fine-tuning of signal direction to optimize coverage based on the installation environment. Its form factor is standard for performance-grade routers, fitting well in most network setups without requiring specialized mounting hardware.
- Width
- 13.30" (337.82 mm)
- Depth
- 8.80" (223.52 mm)
- Height
- 7.80" (198.12 mm)
- Weight
- 2.50 lb (1133.98 g)
Highlights
- Wi-Fi 6E tri-band router with support for the 6 GHz frequency band.
- Powered by a quad-core 1.8 GHz processor for efficient network management.
- Features 10 Gigabit Ethernet technology for high-speed wired connections.
- Equipped with six external antennas for extended wireless coverage.
- Includes seven total network ports (4x LAN, 3x WAN) for flexible connectivity.
- Built-in USB port for sharing storage or printers across the network.
- Supports IEEE 802.11 a/b/g/n/ac/ax standards for broad device compatibility.
- Backed by a 36-month limited warranty for long-term reliability.
Specifications
| Specifications | |
|---|---|
| Manufacturer | MSI |
| Manufacturer Part Number | RADIX AXE6600 |
| Brand Name | MSI |
| Product Model | RADIX AXE6600 |
| Product Name | RADIX AXE6600 Wireless Router |
| Product Type | Wireless Router |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 6E |
| Network Band | Tri Band |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 1.80 GHz |
| Wireless Specifications | |
| Broadband Transmission Technology | Ethernet |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 6 GHz |
| Total Number of Antennas | 6 |
| Number of External Antennas | 6 |
| Total Wireless Transmission Speed | 822.38 MB/s |
| Interfaces/Ports | |
| Total Number of Network Ports | 7 |
| Number of Network (RJ-45) Ports | 4 |
| USB | Yes |
| Number of Broadband (RJ-45) Ports | 3 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 7.80" (198.12 mm) |
| Width | 13.30" (337.82 mm) |
| Depth | 8.80" (223.52 mm) |
| Weight (Approximate) | 2.50 lb (1133.98 g) |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is Wi-Fi 6E and how does it benefit my network?
Wi-Fi 6E is an extension of the Wi-Fi 6 (802.11ax) standard that adds operation in the 6 GHz frequency band. This provides a wider, less congested channel for high-bandwidth devices, resulting in lower latency, faster speeds, and reduced interference compared to the crowded 2.4 GHz and 5 GHz bands. It's ideal for applications like 4K/8K streaming, VR, and competitive gaming.
How many devices can this router support effectively?
Thanks to its quad-core processor, tri-band design, and Wi-Fi 6E technologies like OFDMA and MU-MIMO, the RADIX AXE6600 can efficiently manage dozens of connected devices simultaneously. The tri-band setup allows you to segregate devices (e.g., IoT on 2.4 GHz, guests on one 5 GHz band, priority devices on 6 GHz), preventing network congestion and maintaining performance for critical tasks.
Does this router support Power over Ethernet (PoE)?
No, the MSI RADIX AXE6600 does not support Power over Ethernet. It requires a standard AC power connection. The Ethernet ports are for data transmission only, using 10 Gigabit Ethernet technology for high-speed wired network backbone connections.
What are the wired connectivity options on this router?
The router provides seven network ports in total: four Gigabit Ethernet LAN ports for connecting wired devices like computers, printers, or switches, and three Gigabit Ethernet WAN ports for connecting to modems or internet sources. All ports support 10 Gigabit Ethernet technology. Additionally, it includes one USB port for connecting external storage or a network printer.
Is the 6 GHz band compatible with all my existing Wi-Fi devices?
No, only devices that specifically support Wi-Fi 6E can connect to the new 6 GHz band. Most older smartphones, laptops, and IoT devices use 2.4 GHz or 5 GHz. However, this router is fully backward compatible with all previous Wi-Fi standards (802.11a/b/g/n/ac), so all your existing devices will continue to work on the 2.4 GHz and 5 GHz bands without issue.
What is the warranty period for the MSI RADIX AXE6600 router?
The MSI RADIX AXE6600 comes with a 36-month (3-year) limited warranty. This extensive coverage period provides long-term assurance for business and prosumer investments, protecting against manufacturing defects and ensuring reliable performance throughout its service life.
