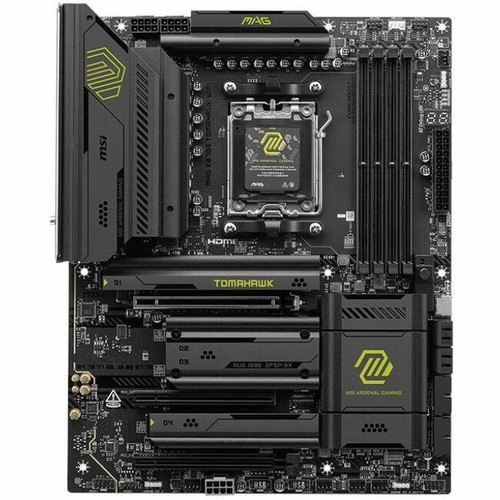

MSI X870ETMAHAWKWIFI MAG X870E TOMAHAWK WIFI Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - ATX - DDR5 8400MHz - 4x M. 2 - Wi-Fi 7
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This motherboard supports AMD Ryzen 9 and Ryzen 7 processors on the Socket AM5 platform, providing a modern foundation for high-core-count CPUs. The memory subsystem features four DDR5 DIMM slots capable of supporting up to 256 GB of RAM at speeds up to 8400 MHz, delivering exceptional bandwidth for memory-intensive applications.
Storage flexibility is a key strength, with four M.2 interfaces for NVMe SSDs and four SATA 6 Gb/s ports for additional drives. RAID 0, 1, and 10 configurations are supported for data redundancy and performance optimization. The expansion layout includes two PCIe x16 slots and one PCIe x1 slot, with PCIe 5.0, 4.0, and 3.0 standards supported across different lanes.
Relevant factors for this section include AI-powered, Chipset Manufacturer, Chipset Model, Total Processor Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MAG X870E TOMAHAWK WIFI combines premium connectivity with robust expansion capabilities in a single ATX platform. Its support for the latest wireless standards, high-speed storage interfaces, and advanced memory technologies makes it an ideal foundation for both gaming systems and professional workstations.
Advanced Wireless Connectivity
Integrated Wi-Fi 7 delivers multi-gigabit wireless speeds with reduced latency, while Bluetooth 5.4 provides improved range and connectivity for peripherals. The included EZ Wi-Fi antenna ensures optimal signal reception.
- Wi-Fi 7 (802.11be) support
- Bluetooth 5.4 with extended range
- Dual-band connectivity
Comprehensive Storage Options
Four M.2 interfaces support the latest NVMe SSDs with PCIe 5.0 speeds, while four SATA ports accommodate additional storage drives. The EZ M.2 Clip II simplifies SSD installation without tools.
- Four M.2 slots for NVMe SSDs
- PCIe 5.0 support on primary M.2
- Tool-free installation with EZ M.2 Clip
Deployment / Use Cases
This motherboard is engineered for high-performance desktop systems where expansion capabilities and connectivity are paramount. Its robust feature set makes it suitable for gaming rigs, content creation workstations, and enthusiast builds that demand both performance and future-proofing.
Gamers will appreciate the PCIe 5.0 support for next-generation graphics cards, high-speed memory compatibility, and low-latency wireless connectivity. Content creators benefit from the multiple M.2 interfaces for fast project storage, ample USB connectivity for peripherals, and reliable RAID configurations for data protection.
High-Performance Gaming Systems
With support for Ryzen 9 processors, DDR5 memory up to 8400 MHz, and multiple PCIe 5.0 slots, this motherboard provides the foundation for competitive gaming systems that can handle the latest titles at maximum settings.
Content Creation Workstations
The combination of four M.2 interfaces, RAID support, and high-bandwidth memory makes this platform ideal for video editing, 3D rendering, and other creative workloads that benefit from fast storage and ample system memory.
Physical Profile
The ATX form factor measures 12" × 9.6" (304.8 mm × 243.84 mm), providing standard mounting compatibility with most mid-tower and full-tower cases. This size accommodates the comprehensive expansion layout while maintaining standard screw hole placement for easy installation. The board's design includes reinforced PCIe slots and strategically placed heatsinks to ensure stable operation under heavy loads.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 12" (304.80 mm), 9.60" (243.84 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 12" (304.80 mm)
- Depth
- 9.60" (243.84 mm)
What's in the Box
The package includes all essential components for motherboard installation and setup:
Highlights
- AMD X870E chipset with Socket AM5 support for Ryzen 9 and Ryzen 7 processors
- Four DDR5 memory slots supporting up to 256 GB at speeds up to 8400 MHz
- Four M.2 interfaces for high-speed NVMe storage with PCIe 5.0 support
- Integrated Wi-Fi 7 (802.11be) and Bluetooth 5.4 for advanced wireless connectivity
- Two PCIe x16 slots with PCIe 5.0 support for next-generation graphics cards
- 7.1 channel audio with S/PDIF output for high-quality sound
- Twelve USB ports including four USB 2.0 ports for peripheral connectivity
- ATX form factor with standard 12" × 9.6" dimensions for case compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | MSI |
| Manufacturer Part Number | X870ETMAHAWKWIFI |
| Brand Name | MSI |
| Product Line | MAG |
| Product Model | X870E TOMAHAWK WIFI |
| Product Name | MAG X870E TOMAHAWK WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | X870E |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 9,Ryzen 7 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 256 GB |
| Memory Speed Supported | 8400 MHz,6400 MHz,5600 MHz,4800 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 4.0,PCI Express 3.0,PCI Express 5.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 4 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Package Contents | MPG X870E EDGE TI WIFI Gaming Desktop Motherboard Quick Installation Guide European Union Regulatory Notice Shout out flyer 2 x SATA Cable EZ M.2 Clip II Remover M.2 Plate Screw USB Drive Cable Sticker EZ Wi-Fi Antenna 1 to 3 EZ Conn-Cable [V2] EZ Front Panel Cable |
User Manual
FAQ
What processors are compatible with this motherboard?
The MSI MAG X870E TOMAHAWK WIFI supports AMD Ryzen 9 and Ryzen 7 processors on the Socket AM5 platform. This includes the latest Zen 4 and Zen 5 architecture CPUs, providing compatibility with high-core-count processors for gaming, content creation, and productivity workloads.
What memory speeds does this motherboard support?
This motherboard supports DDR5 memory at speeds up to 8400 MHz, with additional supported speeds including 6400 MHz, 5600 MHz, and 4800 MHz. The four DIMM slots can accommodate up to 256 GB of DDR5 SDRAM, providing ample capacity for memory-intensive applications and multitasking scenarios.
How many M.2 slots does this motherboard have?
The MAG X870E TOMAHAWK WIFI features four M.2 interfaces for NVMe solid-state drives. These slots support PCIe 5.0 on the primary interface and PCIe 4.0 on the remaining slots, enabling extremely fast storage performance for operating systems, applications, and game libraries.
What wireless connectivity is included?
This motherboard includes integrated Wi-Fi 7 (IEEE 802.11 a/b/g/n/ac/ax/be) supporting the latest wireless standard with multi-gigabit speeds and reduced latency. It also features Bluetooth 5.4 for connecting wireless peripherals with improved range and stability compared to previous Bluetooth versions.
What expansion slots are available on this motherboard?
The expansion layout includes three PCIe slots: two PCIe x16 slots and one PCIe x1 slot. The primary PCIe x16 slot supports PCIe 5.0 for next-generation graphics cards, while the secondary x16 slot operates at PCIe 4.0. The x1 slot is suitable for additional expansion cards like sound cards or capture devices.
What RAID configurations are supported?
The motherboard supports RAID 0, 1, and 10 configurations through its Serial ATA/600 controller. RAID 0 provides striping for improved performance, RAID 1 offers mirroring for data redundancy, and RAID 10 combines both striping and mirroring for both performance and fault tolerance across multiple drives.
