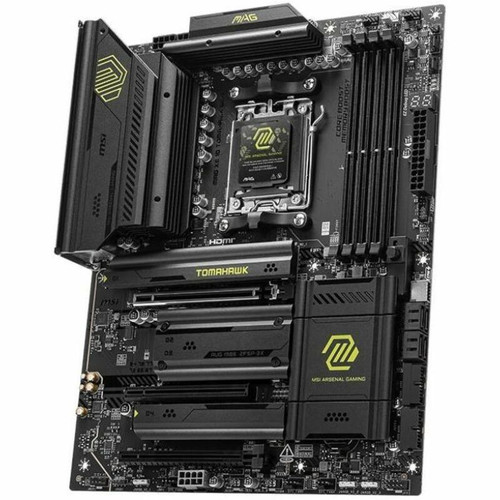

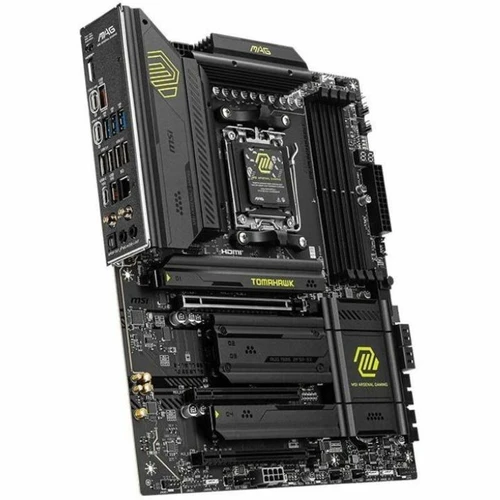

MSI X870TMAHAWKWIFI MAG X870 TOMAHAWK WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - ATX - DDR5 8400+ MHz - Wi-Fi 7 - PCIe 5.0
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The MAG X870 TOMAHAWK WIFI supports cutting-edge DDR5 memory with four DIMM slots capable of handling up to 256 GB. It officially supports speeds up to 8400+ MHz (OC) in dual-channel configuration, providing the bandwidth needed for high-frame-rate gaming and demanding applications. Memory Boost technology further optimizes signal integrity for stable overclocking.
Expansion is handled by a PCIe 5.0 x16 slot for the latest graphics cards, alongside PCIe 4.0 and 3.0 compatibility. Storage flexibility is exceptional with four Lightning Gen 5 x4 M.2 interfaces for NVMe SSDs and four SATA 6 Gb/s ports. The board includes RAID 0, 1, and 10 support for data redundancy or performance configurations.
Relevant factors for this section include AI-powered, Chipset Manufacturer, Chipset Model, Total Processor Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This motherboard integrates MSI's latest technologies to enhance user experience, performance, and connectivity. The Frozr Guard cooling system combines extended heatsinks, MOSFET thermal pads rated at 7W/mK, and additional choke pads to dissipate heat efficiently, ensuring consistent performance during extended gaming sessions or heavy computational tasks.
Ultra Connect Suite
Features the latest Wi-Fi 7 solution for ultra-fast, low-latency wireless networking alongside Bluetooth 5.4. Wired connectivity includes a 5G LAN port and USB4 support, providing high-speed data transfer and network stability for professional and multimedia applications.
- Wi-Fi 7 (802.11be) for multi-gigabit speeds
- 5G LAN for high-bandwidth wired connections
- USB4 for 40 Gbps data transfer
EZ DIY Features
Designed for easy installation and upgrades with tools like the EZ M.2 Clip II for tool-free M.2 SSD installation, EZ PCIe Release for safe graphics card removal, and the EZ Antenna for quick Wi-Fi antenna setup. These features reduce build time and complexity.
- EZ M.2 Clip II for SSD installation
- EZ PCIe Release for GPU removal
- EZ Antenna for wireless setup
Deployment / Use Cases
The MSI MAG X870 TOMAHAWK WIFI is ideal for building high-end gaming PCs, content creation workstations, and streaming setups. Its support for the latest Ryzen processors, fast DDR5 memory, and PCIe 5.0 graphics ensures it can handle modern AAA games at high settings, video editing, 3D rendering, and live streaming without bottlenecks.
For enthusiasts and overclockers, the robust power delivery and advanced cooling allow for pushing CPU and memory frequencies beyond stock settings. The board's comprehensive connectivity, including Wi-Fi 7 and 5G LAN, makes it suitable for environments requiring fast network access, such as competitive gaming or large file transfers in creative studios.
Physical Profile
The motherboard uses the standard ATX form factor, measuring 12 inches wide by 9.6 inches deep (304.80 mm x 243.84 mm), ensuring compatibility with most mid-tower and full-tower PC cases. It weighs approximately 5 pounds (2267.96 grams), reflecting its substantial build quality and cooling components. The layout provides clear spacing for components like large CPU coolers and graphics cards.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 12" (304.80 mm), 9.60" (243.84 mm), 5 lb (2267.96 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 12" (304.80 mm)
- Depth
- 9.60" (243.84 mm)
- Weight
- 5 lb (2267.96 g)
What's in the Box
The package includes all necessary items for installation and setup, ensuring a complete out-of-the-box experience.
Highlights
- Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on Socket AM5.
- Four DDR5 memory slots support up to 256 GB and speeds up to 8400+ MHz (OC).
- 14+2+1 Duet Rail Power System with dual 8-pin CPU connectors for stable overclocking.
- Frozr Guard cooling with extended heatsinks and 7W/mK thermal pads for high-performance systems.
- Includes EZ DIY features: EZ M.2 Clip II, EZ PCIe Release, and EZ Antenna for easy installation.
- PCIe 5.0 x16 slot and four Lightning Gen 5 x4 M.2 interfaces for ultra-fast storage and graphics.
- Ultra Connect with Wi-Fi 7, Bluetooth 5.4, 5G LAN, and USB4 for high-speed networking.
- Audio Boost 5 delivers studio-grade 7.1 surround sound for immersive gaming experiences.
Specifications
| Specifications | |
|---|---|
| Manufacturer | MSI |
| Manufacturer Part Number | X870TMAHAWKWIFI |
| Brand Name | MSI |
| Product Line | MAG |
| Product Model | X870 TOMAHAWK WIFI |
| Product Name | MAG X870 TOMAHAWK WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | X870 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 9,Ryzen 7 |
| Multi GPU Supported | CrossFireX |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 256 GB |
| Memory Speed Supported | 8000 MHz,7800 MHz,7600 MHz,7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5600 MHz,5200 MHz,4800 MHz,5800 MHz,5400 MHz,5000 MHz,8400 MHz,8200 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 3.0,PCI Express 4.0,PCI Express 5.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 4 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Weight (Approximate) | 5 lb (2267.96 g) |
| Miscellaneous | |
| Package Contents | MAG X870 TOMAHAWK WIFI Gaming Desktop Motherboard Quick Installation Guide European Union Regulatory Notice Shout-out flyer 2 x SATA Cables EZ M.2 Clip II EZ M.2 Clip II Remover M.2 Plate Screw USB Drive Cable Sticker EZ WI-FI Antenna 1 to 3 EZ Conn-Cable(V2) EZ Front Panel Cable |
User Manual
FAQ
What AMD processors are compatible with this motherboard?
The MSI MAG X870 TOMAHAWK WIFI supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors, specifically including Ryzen 9 and Ryzen 7 models. It uses the Socket AM5 platform, ensuring compatibility with the latest AMD CPUs for high-performance gaming and computing tasks.
What type of memory does this motherboard support and at what speeds?
This motherboard supports DDR5 SDRAM across four DIMM slots, with a maximum capacity of 256 GB. It officially supports memory speeds up to 8400+ MHz (overclocked) in dual-channel mode, providing high bandwidth for gaming and intensive applications. Supported speeds include a wide range from 4800 MHz to 8400 MHz.
How many M.2 and SATA ports are available for storage?
The board includes four Lightning Gen 5 x4 M.2 interfaces for NVMe SSDs, supporting the latest PCIe 5.0 speeds for ultra-fast storage. Additionally, it has four SATA 6 Gb/s ports for traditional hard drives or SSDs, with RAID 0, 1, and 10 support for data redundancy or performance configurations.
What wireless and networking features does this motherboard include?
It features Wi-Fi 7 (IEEE 802.11 a/b/g/n/ac/ax/be) for multi-gigabit wireless speeds and low latency, along with Bluetooth 5.4 for peripheral connectivity. Wired networking includes a 5G LAN port for high-bandwidth Ethernet connections, ensuring fast and stable network performance for gaming or professional use.
What cooling solutions are integrated into this motherboard?
The Frozr Guard cooling system includes extended heatsinks, MOSFET thermal pads rated at 7W/mK, additional choke thermal pads, and the EZ M.2 Shield Frozr II. These components work together to dissipate heat efficiently from the power delivery and storage areas, maintaining stable performance during extended high-load usage.
What form factor is this motherboard and what are its dimensions?
This motherboard uses the standard ATX form factor, measuring 12 inches in width and 9.6 inches in depth (304.80 mm x 243.84 mm). It weighs approximately 5 pounds (2267.96 grams). This size ensures compatibility with most mid-tower and full-tower PC cases, providing ample space for components and cooling.
