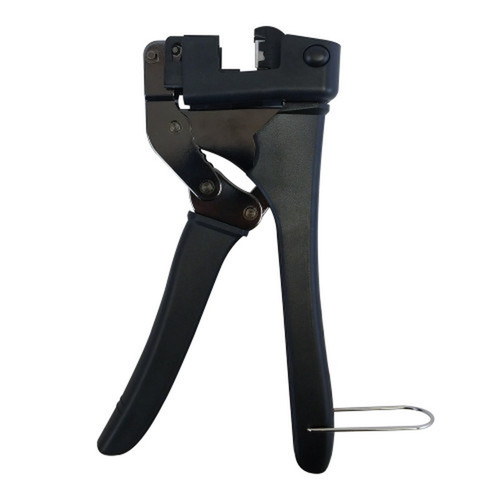

Multipair 110 Style Punch-Down Tool For 180 Degree Jacks Network Fleet FN-TL-PUM-180
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Overview
This punch-down tool is used to terminate 180 degree 110 style jacks. It allows for faster and more accurate jack termination with one simple motion. It also features built-in blades which cut off excess wire after termination. The tool is designed with a durable steel body with an ergonomically friendly handle.
 |
Reduces installation timeThis punch-down tool saves time and increases accuracy by seating and terminating all wires at once with a simple squeeze of the handle, it allows you to terminate jacks eight times faster. Easy-to-use with efficiencyThe built-in blades cut off the excess wires after termination which makes terminating jacks a simple one-handed operation. The ergonomically designed handle reduces hand fatigue which speeds up the termination process. |
Specifications
|
Physical Characteristics
| |
|---|---|
| Color | Black |
| Material | Polycarbonate, UL 94V-2 SPCC, 2.0mm thickness with 5~8um nickelage |
| Operating Function | For Keystone Jacks |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -20°C to +80°C |
| Ratchet | No |
|
Connectors
| |
| Terminal Block Type | 110 |
|
Compatible Jacks
| |
| JK-C6PB1-WH JK-C6PB1-BK JK-C6PB1-BL JK-C6A-WH JK-C6A-BK JK-C6A-BL |
RJ45 Cat6 Slim Profile 180 Degree Jack, 110 Punch-Down or Tool-Less - White RJ45 Cat6 Slim Profile 180 Degree Jack, 110 Punch-Down or Tool-Less - Black RJ45 Cat6 Slim Profile 180 Degree Jack, 110 Punch-Down or Tool-Less - Blue RJ45 CAT6A Slim Profile 180 Degree Jack, 110 Punch-Down Style or Tool-Less - White RJ45 CAT6A Slim Profile 180 Degree Jack, 110 Punch-Down Style or Tool-Less - Black RJ45 CAT6A Slim Profile 180 Degree Jack, 110 Punch-Down Style or Tool-Less - Blue |
|
Packaging Information
| |
| Packaging Quantity | 1 |
| Product Weight | 1.14 lbs [0.52 kg] |
