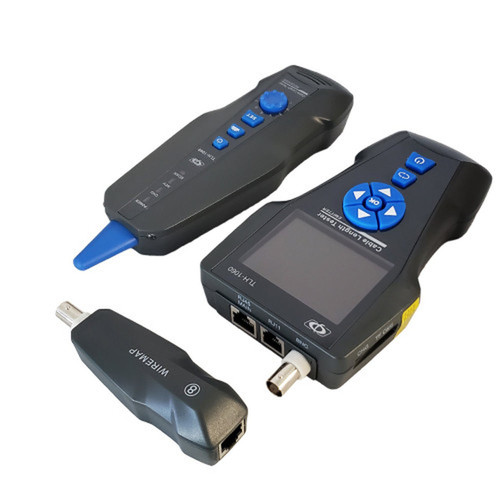

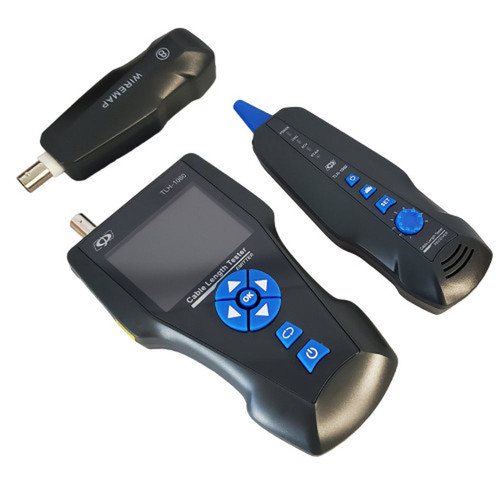

Network Cable Tester And Wire Tracer For BNC RJ11 RJ12 RJ45 With Eight Remote Identifiers Remotes FN-TLH-1060
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Overview
This network cable tester tests the pin assignments accurately of unshielded and shielded RJ45 cables as well as telephone cables (RJ11 and RJ12) and BNC cables. It allows you to determine if the cable is pinned correctly or if it is mis-wired, shorted or has open circuits. It also measures length, does tone and probe, measures PoE and port flashing. It has a colour LCD screen, ability to save and export test results, cross-talk indication, rechargeable batteries and comes with 8 remotes for multiple location testing.
Note: For 22-24AWG cable runs (Not for use with 28AWG or smaller)
Features
- Test cable continuity for open, shorts, cross-wires and breaks
- Tracer RJ45, RJ12, RJ11 and BNC cables
- Measure cable lengths and locate point of failure location
- Detect AC voltage from 90V to 1000V
- Locate network port on switches and routers
- Identify and measure pin power on PoE devices
- Ping testing to measure network performance
- Save and export test data
 | Inexpensive - Lightweight - ConvenientThis cable tester is reliable, inexpensive and simple to use. Comes in a compact, lightweight design. Quick and Easy OperationThis tester is a quick and easy way to check the pin assignment of your cables. It allows you to determine if the cable is pinned straight through, mis-wired, shorted or has open circuits. Works with a Variety of ConnectionsDesigned to work with RJ45 Ethernet cables, telephone cables (RJ11, RJ12), as well as BNC cables. |
Specifications
| Physical Characteristics | |
|---|---|
| Color | Grey/Blue |
| Dimensions (L x W x D) | Transmitter: 173x92x34mm Receiver: 183x58x35mm Remote: 106x32x30mm |
| Cable Types | Transmitter: CAT5E, CAT6, CAT6A, CAT7, CAT8, Coax, Phone Receiver: >= 2 cores |
| Connector Types | Remote: BNC, RJ11, RJ12, RJ45 |
| Tracing Cables Max Distance | 1000m |
| Wire Mapping Max Distance | 2000m |
| Cable Length Measurement Max Distance | 2000m |
| Accuracy | 98% (after calibration) |
| Calibration Minimum Distance | 10m |
| Cable Map Indication | LCD (Pin1-Pin8 & G) |
| Working Temperature | 10 deg C ~ 60 deg C |
| Working Humidity | 0 deg C ~ 70 deg C |
| Battery Type | Transmitter: 3.7V Lithium Battery 1800mAh Receiver: 3.7V Lithium Battery 1800mAh |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 2.04 lbs |
| Contents | |
| Included in Package | 1 - Transmitter 1 - Receiver 8 - Remote 1 - RJ11 Cable Adapter 1 - RJ45 Cable Adapter 1 - Alligator Clip 1 - Carry Bag 1 - Gift Box 1 - Charging Adapter 1 - User Manual |
