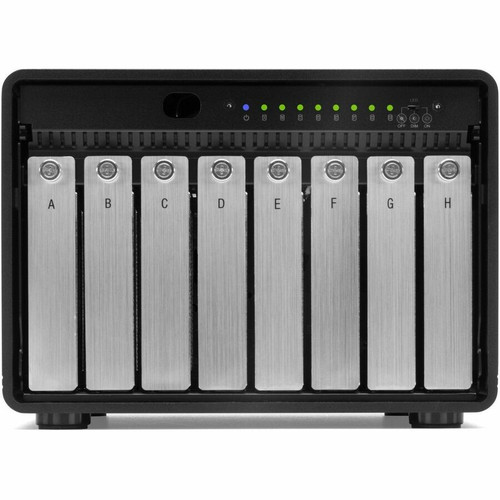

OWC ThunderBay 8 External Storage Enclosure - 8 x HDD Supported - 0 x HDD Installed - 8 x SSD Supported - 0 x SSD Installed - 8 x Bays (OWCTB38JBKIT0)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- ThunderBay 8 External Storage Enclosure
- 1 x 0.7M (29") Thunderbolt Cable
- 1 x US Power Cable
- 2 x Security Keys for Front Panel Lock
- 1 x Quick Start Guide for ThunderBay 8
- 1 x Assembly Manual & User Guide for OWC ThunderBay 8
- 1 Year OWC Limited Warranty
Number of Hard Drives Supported: 8
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 8
Number of Solid State Drive Installed: 0
Maximum Data Transfer Rate: 40 Gbit/s
Wireless LAN: No
Number of Total Expansion Bays: 8
Number of 2.5"/3.5" Bays: 8
Non-RAID Mode: JBOD
Software RAID Supported: Yes
Drive Interface: SATA/600
Host Interface: Thunderbolt 3
Number of Thunderbolt 3 Ports: 2
Operating System Supported: Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.x Big Sur,Mac OS X 12.x Monterey,Mac OS X 13.x Ventura,Mac OS X 14.x Sonoma,macOS Sequoia 15.x,Windows 10 x64,Windows 11,Windows Server 2022
Cooling Fan: Yes
Height: 7.09" (180 mm)
Width: 10.24" (260 mm)
Depth: 9.45" (240 mm)
Form Factor: Desktop
Weight (Approximate): 16.09 lb (7300 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 1 Year
Additional Warranty Information:
1 Year OWC Limited Warranty
- Pro-grade transfer speeds:
- up to 2465MB/s HDD peak performance and 2586MB/s SDD peak performance (RAID 0)
- Eight hot-swappable universal drive bays:
- mix or match 2.5-inch (no adapter needed) and 3.5-inch HDDs and SSDs
- See your work:
- DisplayPort 1.2 for connecting up to a 4K display
- Daisy-chain expansion:
- second Thunderbolt 3 port for adding up to five additional Thunderbolt devices
- Quick drive swaps:
- thumb screw release trays
- Plug-and-play ready:
- no drivers needed and includes Thunderbolt cable
- Thunderbolt certified:
- for Mac and Windows
- OWC ClingOn ready:
- cable stabilizer prevents work session interruption and possible data loss
- 1 Year OWC Limited Warranty
[custom-specifications]
| Specifications | |
| Manufacturer | Other World Computing |
| Manufacturer Part Number | OWCTB38JBKIT0 |
| Manufacturer Website Address | https://www.owc.com/ |
| Brand Name | OWC |
| Product Line | ThunderBay 8 |
| Product Name | ThunderBay 8 External Storage Enclosure |
| Packaged Quantity | 1 |
| Product Type | DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 8 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 8 |
| Number of Solid State Drive Installed | 0 |
| Maximum Data Transfer Rate | 40 Gbit/s |
| Network & Communication | |
| Wireless LAN | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 2.5"/3.5" Bays | 8 |
| Controllers | |
| Non-RAID Mode | JBOD |
| Software RAID Supported | Yes |
| Interfaces/Ports | |
| Drive Interface | SATA/600 |
| Host Interface | Thunderbolt 3 |
| Number of Thunderbolt 3 Ports | 2 |
| Software | |
| Operating System Supported | Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.x Big Sur,Mac OS X 12.x Monterey,Mac OS X 13.x Ventura,Mac OS X 14.x Sonoma,macOS Sequoia 15.x,Windows 10 x64,Windows 11,Windows Server 2022 |
| Physical Characteristics | |
| Cooling Fan | Yes |
| Height | 7.09" (180 mm) |
| Width | 10.24" (260 mm) |
| Depth | 9.45" (240 mm) |
| Form Factor | Desktop |
| Weight (Approximate) | 16.09 lb (7300 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 Year OWC Limited Warranty |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
