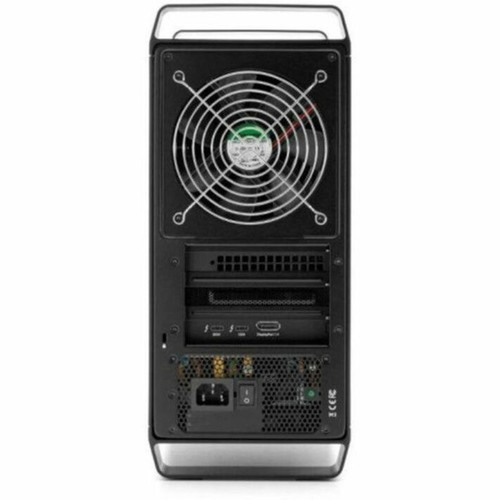

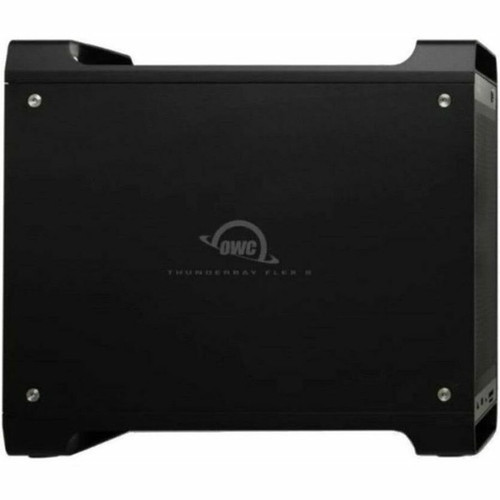

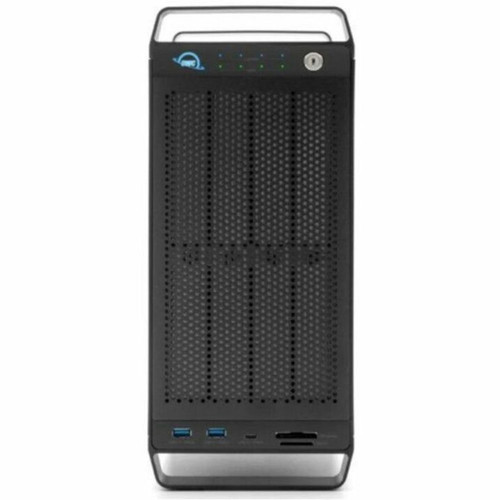

OWC ThunderBay Flex 8 External Storage Solution Supporting Eight Bays With Seven Installed Drives And High Capacity Expansion OWCTB3F81N116
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Number of Hard Drives Supported: 8
Number of Hard Drives Installed: 7
Total Hard Drive Capacity Installed: 112 TB
Hard Drive Interface: Serial ATA
Hard Drive Configuration: 7 x 16TB
Number of Solid State Drive Installed: 1
Total Solid State Drive Capacity Installed: 4 TB
Solid State Drive Configuration: 1 x 4TB
Maximum Data Transfer Rate: 40 Gbit/s
Number of Total Expansion Bays: 8
Number of 2.5"/3.5" Bays: 8
Total Number of Expansion Slots: 1
Expansion Slot Type: PCI Express 3.0 x16
Controller Type: Serial ATA/600
RAID Supported: Yes
Drive Interface: U.2,Serial ATA
Host Interface: Thunderbolt 3,USB 3.2 (Gen 2) Type C,USB 3.2 (Gen 2) Type A
Total Number of USB Ports: 3
Number of USB 3.2 Gen 2 Ports: 3
Number of Thunderbolt 3 Ports: 2
Maximum Power Supply Wattage: 450 W
Height: 13.70" (347.98 mm)
Width: 5.90" (149.86 mm)
Depth: 15.40" (391.16 mm)
Form Factor: Desktop
Weight (Approximate): 20.26 lb (9189.78 g)
[custom-specifications]
| Specifications | |
| Manufacturer | Other World Computing |
| Manufacturer Part Number | OWCTB3F81N116 |
| Manufacturer Website Address | https://www.owc.com/ |
| Brand Name | OWC |
| Product Line | ThunderBay Flex 8 |
| Product Name | ThunderBay Flex 8 External Storage Solution |
| Packaged Quantity | 1 |
| Product Type | DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 8 |
| Number of Hard Drives Installed | 7 |
| Total Hard Drive Capacity Installed | 112 TB |
| Hard Drive Interface | Serial ATA |
| Hard Drive Configuration | 7 x 16TB |
| Number of Solid State Drive Installed | 1 |
| Total Solid State Drive Capacity Installed | 4 TB |
| Solid State Drive Configuration | 1 x 4TB |
| Maximum Data Transfer Rate | 40 Gbit/s |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 2.5"/3.5" Bays | 8 |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express 3.0 x16 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Interfaces/Ports | |
| Drive Interface | U.2,Serial ATA |
| Host Interface | Thunderbolt 3,USB 3.2 (Gen 2) Type C,USB 3.2 (Gen 2) Type A |
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number of Thunderbolt 3 Ports | 2 |
| Power Description | |
| Maximum Power Supply Wattage | 450 W |
| Physical Characteristics | |
| Height | 13.70" (347.98 mm) |
| Width | 5.90" (149.86 mm) |
| Depth | 15.40" (391.16 mm) |
| Form Factor | Desktop |
| Weight (Approximate) | 20.26 lb (9189.78 g) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
