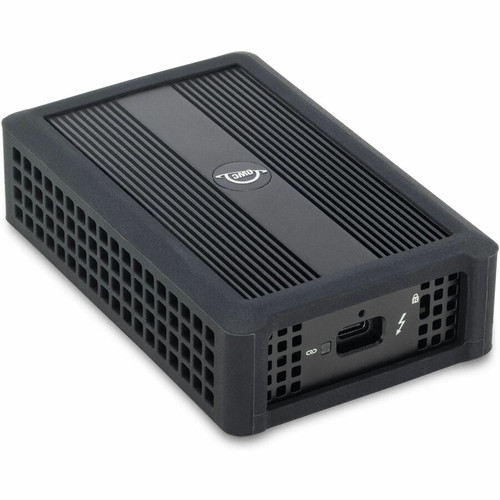

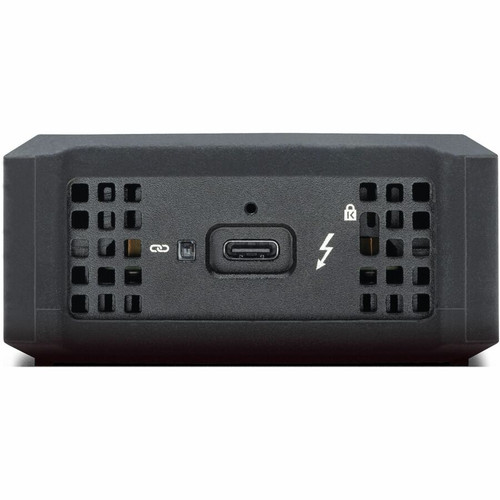

OWC Thunderbolt 4 10G Ethernet Adapter - Thunderbolt 4 (40Gb/s) - Over 900MB/s - 1x 10GBase-T (RJ45) - 10G/5G/2.5G/1G/100Mbps Auto - - (OWCTB4ADP10GBE)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Thunderbolt 4 10G Ethernet Adapter
- 1 x 0.3M (12") Thunderbolt 4 (USB-C) Cable
- 1 x Getting Started Insert for OWC Thunderbolt 10G Ethernet Adapter
- 1 x Support Manual for OWC Thunderbolt 4 10G Ethernet Adapter (Digital)
- 1 x Year OWC Limited Warranty
Chipset Manufacturer: Intel
Chipset Model: JHL9440
Ethernet Controller Manufacturer: Aquantia
Ethernet Controller Model: AQC113
Features: Wake on LAN (WOL),Energy Efficient,IPv4,User Datagram Protocol (UDP),TCP Segmentation Offload (TSO),Large Receive Offload (LRO),Receive Side Scaling (RSS),Jumbo Frames Support
Host Interface: Thunderbolt 4
Total Number of Ports: 1
Number of Network (RJ-45) Ports: 1
Media Type Supported: Twisted Pair
Maximum Data Transfer Rate: 10 Gbit/s
Network Technology: 10GBase-T,5GBase-T,2.5GBase-T,1000Base-T,100Base-T,100Base-TX
Color Family: Black
Product Color: Black
Form Factor: Portable
Height: 1.50" (38 mm)
Width: 3.15" (80 mm)
Weight (Approximate): 15.98 oz (453 g)
Package Contents:
Device Supported: Computer,PC,NAS Storage Device,Workstation,Notebook,Desktop,Router,Switch,Mac
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TAA Compliant: Yes
Limited Warranty: 1 Year
- Blazing-fast
- : Over 900MB/s real-world tested transfer speed for large file transfers, video editing, and live streaming gaming sessions
- Compatible
- : Certified for use with any Thunderbolt 3/4/5 or USB4 Mac or Windows computer
- Capable
- : Up to 100-meter cable distance with Cat6a for 10G, Cat6 for 5G, and Cat5e for 2.5G
- Smart
- : Supports auto-negotiation for 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s Base-T Ethernet standards
- Accessible
- : Wake-on-LAN ready for remote access of home or work computer
- AVB ready
- : Perfect for use in pro audio and video applications where synchronization of data streams is critical2Energy efficient: Supports IEEE 802.3az for low computer bus power
- Cost effective
- : 2.5GBASE-T and 5GBASE-T technology (formerly NBASE-T) provides up to 500% faster performance over existing cabling
- Energy efficient
- : Supports IEEE 802.3az for low computer bus power
[custom-specifications]
| Specifications | |
| Manufacturer | Other World Computing |
| Manufacturer Part Number | OWCTB4ADP10GBE |
| Manufacturer Website Address | https://www.owc.com/ |
| Brand Name | OWC |
| Product Name | Thunderbolt 4 10G Ethernet Adapter |
| Packaged Quantity | 1 |
| Product Type | 10Gigabit Ethernet Adapter |
| Technical Information | |
| Chipset Manufacturer | Intel |
| Chipset Model | JHL9440 |
| Ethernet Controller Manufacturer | Aquantia |
| Ethernet Controller Model | AQC113 |
| Features | Wake on LAN (WOL),Energy Efficient,IPv4,User Datagram Protocol (UDP),TCP Segmentation Offload (TSO),Large Receive Offload (LRO),Receive Side Scaling (RSS),Jumbo Frames Support |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 4 |
| Total Number of Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Network & Communication | |
| Network Technology | 10GBase-T,5GBase-T,2.5GBase-T,1000Base-T,100Base-T,100Base-TX |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Portable |
| Height | 1.50" (38 mm) |
| Width | 3.15" (80 mm) |
| Weight (Approximate) | 15.98 oz (453 g) |
| Miscellaneous | |
| Package Contents |
|
| Device Supported | Computer,PC,NAS Storage Device,Workstation,Notebook,Desktop,Router,Switch,Mac |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
