Lenovo 30HH0085US ThinkStation P8 Workstation - AMD Threadripper™ PRO 9965WX 4. 20GHz - 64GB RAM - 2TB SSD - NVIDIA Graphics - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ThinkStation P8 is the AMD Ryzen Threadripper PRO 9965WX processor, built on the Socket sTR5 platform and paired with the AMD WRX90 chipset. This configuration supports advanced AI acceleration capabilities, enhancing performance in machine learning and data-intensive workflows. The processor's 128 MB of cache and 48 threads enable seamless multitasking and high-throughput computing.
Memory performance is driven by 64 GB of DDR5 SDRAM operating at 6.40 GHz, configured as four 16 GB modules. The ECC (Error-Correcting Code) and registered signal processing ensure data integrity and stability for critical applications. Storage is handled by a 2 TB solid-state drive using the PCI Express 4.0 interface, which delivers high sequential read/write speeds and low latency for large file transfers and database operations.
This section brings together practical product details such as AI-powered, Number of Processors Supported, Number of Processors Installed, Processor Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ThinkStation P8 excels in environments where computational power, memory capacity, and system reliability are non-negotiable. Its Threadripper PRO processor and ample memory allow users to run multiple virtual machines, compile large codebases, or process complex datasets without performance degradation. The inclusion of a dedicated NVIDIA graphics card further extends its capability into visualization, video editing, and CAD/CAM applications.
Enterprise-Grade Memory
With 64 GB of DDR5 ECC registered RAM and support for up to 1 TB, this workstation ensures smooth operation of memory-hungry applications and reduces the risk of data corruption.
- DDR5 technology for higher bandwidth
- ECC for error correction
- Registered design for stability
High-Speed Storage & Expansion
The 2 TB NVMe SSD offers fast boot times and rapid data access, while the system supports RAID 0, 1, 5, and 10 for data redundancy or performance tuning.
- PCIe 4.0 interface
- NVMe and SATA controller support
- RAID-ready configuration
Deployment / Use Cases
This workstation is ideal for engineering firms, research institutions, financial analysts, and creative studios that require uncompromising performance. Its robust hardware suite makes it suitable for running finite element analysis (FEA), computational fluid dynamics (CFD), genomic sequencing, and real-time data analytics platforms.
In media production, the ThinkStation P8 can handle 4K/8K video editing, 3D animation rendering, and visual effects compositing. Software developers will appreciate the ability to compile large projects quickly and run multiple development environments simultaneously. The tower form factor allows for easy upgrades, making it a future-proof investment for growing businesses.
Engineering & Simulation
Leverage the high core count and memory bandwidth for complex simulations and modeling tasks in automotive, aerospace, or architectural design.
Data Science & AI
Utilize the AI acceleration and GPU power for training machine learning models, big data processing, and statistical analysis.
Localization and Operating System
The workstation comes pre-installed with Windows 11 Pro 64-bit in English, providing a familiar and secure operating environment with features like BitLocker encryption, remote desktop, and Hyper-V virtualization. The keyboard is localized for English (US) layouts, ensuring compatibility with standard input methods and shortcuts.
Windows 11 Pro enhances productivity with a modern interface, improved multitasking tools, and robust security protocols. This configuration is ready for integration into enterprise networks, supporting domain join, group policy management, and Microsoft Azure services.
This section brings together practical product details such as AI-powered, Number of Processors Supported, Number of Processors Installed, Processor Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.

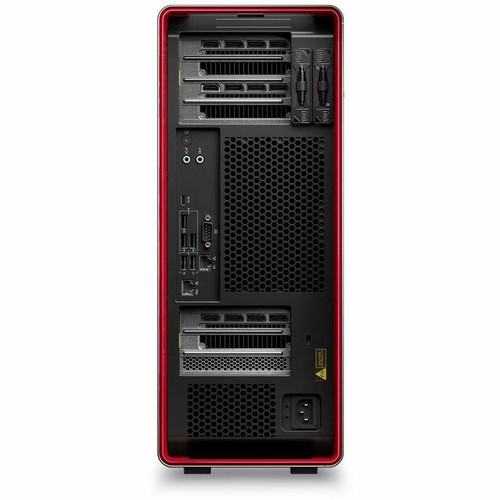

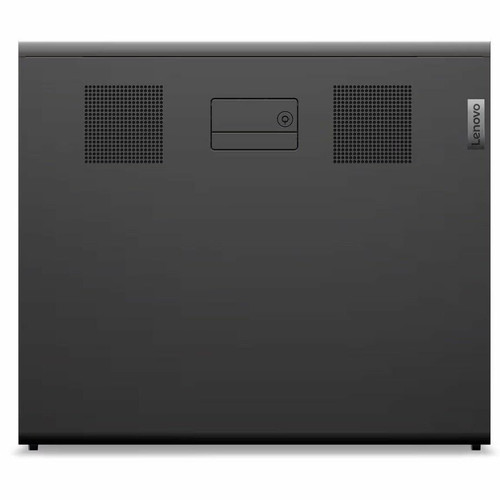

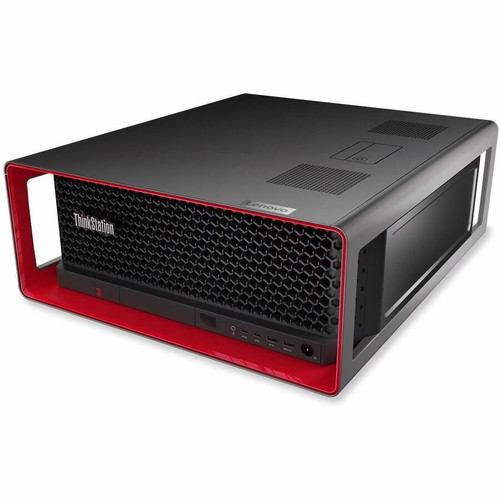

Physical Profile
Housed in a professional black tower chassis, the ThinkStation P8 measures 17.10" (434.40 mm) in height, 6.89" (175 mm) in width, and 20" (508 mm) in depth, with an approximate weight of 50.04 lb (22.7 kg). This form factor offers ample internal space for additional drives, expansion cards, and cooling solutions, making it highly configurable for specific workflow requirements.
The tower design facilitates easy access to components for maintenance and upgrades, while the robust construction ensures durability in office or lab environments. The system includes a 1.40 kW power supply that supports both 120 V and 230 V AC inputs, providing reliable energy delivery for sustained high-performance operation.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation arrives with all necessary components to get started immediately. The package includes the ThinkStation P8 30HH0085US workstation itself, a USB traditional keyboard, a USB Calliope mouse, and a lock kit with a common key for physical security.
Highlights
- AMD Ryzen Threadripper PRO 9965WX processor with 24 cores and 4.20 GHz clock speed
- 64 GB of DDR5 ECC registered memory for stable, high-performance multitasking
- 2 TB PCIe 4.0 NVMe SSD for fast storage and quick system responsiveness
- NVIDIA dedicated graphics with 16 GB memory for visual computing and GPU tasks
- Windows 11 Pro 64-bit English operating system pre-installed
- Dual Ethernet (Gigabit and 10 Gigabit) plus Wi-Fi 6E and Bluetooth connectivity
- Tower form factor in black for easy expansion and upgradeability
- 1.40 kW power supply with 120/230 V AC input support
- 10 USB ports including USB-C with 20 Gbps speeds
- 3-year warranty with on-site service for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH0085US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH0085US |
| Product Name | ThinkStation P8 30HH0085US Workstation |
| Product Type | Workstation |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | AMD |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 9965WX |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 48 |
| Processor Speed | 4.20 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 6.40 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express 4.0 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Wi-Fi Generation | Wi-Fi 6E |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English (US) |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only(rear), 2x USB-C® 3.2 Gen 2(front) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH0085US Workstation USB Traditional Keyboard USB Calliope Mouse Lock Kit with Common Key |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD 3 Year On-site |
User Manual
FAQ
What processor does the Lenovo ThinkStation P8 30HH0085US use?
This workstation features the AMD Ryzen Threadripper PRO 9965WX processor, which has 24 cores (tetracosa-core), 48 threads, and a base clock speed of 4.20 GHz. It includes 128 MB of cache and supports AI acceleration, making it suitable for heavy computational tasks like simulation, rendering, and data analysis.
How much memory is installed, and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed, configured as four 16 GB modules running at 6.40 GHz. The memory uses ECC (Error-Correcting Code) and registered signal processing to ensure data integrity and stability, which is critical for enterprise and professional applications.
What storage capacity and interface does this workstation have?
It includes a 2 TB solid-state drive (SSD) that uses the PCI Express 4.0 interface for high-speed data transfer. The storage controller supports both NVMe and Serial ATA, and the system is RAID-ready with support for levels 0, 1, 5, and 10 for data redundancy or performance optimization.
Does this ThinkStation include a dedicated graphics card?
Yes, it features a dedicated NVIDIA graphics controller with 16 GB of dedicated memory. This provides enhanced performance for graphics-intensive tasks such as 3D modeling, video editing, and GPU-accelerated computing, compared to integrated graphics solutions.
What operating system is pre-installed on this workstation?
The workstation comes with Windows 11 Pro 64-bit in English pre-installed. This version includes professional features like BitLocker encryption, remote desktop capability, and Hyper-V virtualization, making it suitable for business and enterprise environments.
What is the warranty coverage for the ThinkStation P8 30HH0085US?
Lenovo provides a 3-year limited warranty with 3-year Premier Next Business Day (NBD) on-site service. This means a technician will come to your location for repairs if needed, minimizing downtime and ensuring reliable support for critical workstations.
What processor is listed for this desktop or workstation?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 4.20 GHz processor for everyday performance and multitasking.
