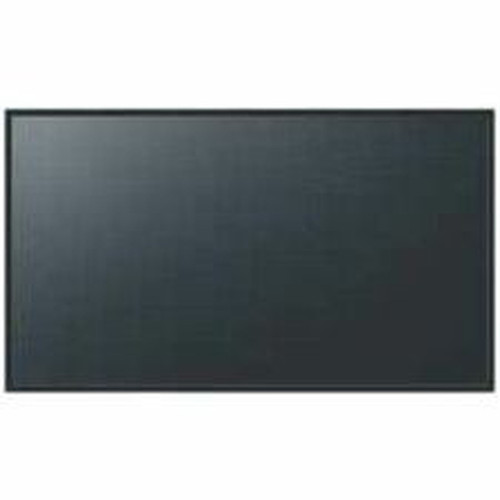

Panasonic 42.5 Inch Advanced Super Dimension Switch 24 7 Digital Signage LCD Display Days ADS Mm X TH-43SQ2HW
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- TH-43SQ2HW Digital Signage Display
- 1 x Remote Control
- 2 x Batteries (AAA size)
- AC Cord (Approx. 2 m (78.7"))
- 1 x Sensor
- 2 x Clamper
- SDM-S Attachment
- Operating Instruction Book
Video Wall Compatible: Yes
Bezel Width (Top): 0.55" (13.90 mm)
Bezel Width (Bottom): 0.55" (13.90 mm)
Bezel Width (Left): 0.55" (13.90 mm)
Bezel Width (Right): 0.55" (13.90 mm)
Panel Technology: Advanced Super Dimension Switch ( ADS )
Operation Hours: 24 Hours/7 Days
Number of Screens: 1
Viewable Screen Size: 42.50" (1079.50 mm)
Display Screen Type: LCD
Response Time: 8 ms
Display Resolution: 3840 x 2160
Orientation: Landscape/Portrait
Backlight Technology: Direct LED
Aspect Ratio: 16:9
Scan Format: 2160p
Native Contrast Ratio: 1,200:1
Dynamic Contrast Ratio: 50,000:1
Brightness: 700 cd/m²
Ethernet: Yes
USB: Yes
HDMI: Yes
Serial: Yes
Number of HDMI Inputs: 3
RS-232C Input: Yes
Number of Audio Line Out: 1
Input Voltage: 120 V AC,230 V AC
Off-Mode Power Consumption: 300 mW
Bezel Color: Black
VESA Mount Standard: 200 x 200
Mount Type: Wall Mountable
Installation Type: Hanging
Height: 22.13" (562 mm)
Width: 38.31" (973 mm)
Depth: 2.56" (65 mm)
Weight (Approximate): 26.24 lb (11900 g)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%
Package Contents:
Application/Usage: School,Conference Room
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- Experience luminescent visual images with LCD display
- 3840x2160 Display - Delivers a breathtaking ultra HD viewing experience with immersive pictures that are dynamic, clear, and as expansive as life
- Features 3840 x 2160 resolution and 2160p scan format for producing sharp and bright images
- Direct LED backlight technology for a consistent picture quality from corner to corner
[custom-specifications]
| Specifications | |
| Manufacturer | Panasonic |
| Manufacturer Part Number | TH43SQ2HW |
| Manufacturer Website Address | http://www.panasonic.com |
| Brand Name | Panasonic |
| Product Series | SQ2H |
| Product Model | TH-43SQ2HW |
| Product Name | TH-43SQ2HW Digital Signage Display |
| Product Type | Digital Signage Display |
| Technical Information | |
| Video Wall Compatible | Yes |
| Bezel Width (Top) | 0.55" (13.90 mm) |
| Bezel Width (Bottom) | 0.55" (13.90 mm) |
| Bezel Width (Left) | 0.55" (13.90 mm) |
| Bezel Width (Right) | 0.55" (13.90 mm) |
| Panel Technology | Advanced Super Dimension Switch ( ADS ) |
| Operation Hours | 24 Hours/7 Days |
| Display & Graphics | |
| Number of Screens | 1 |
| Viewable Screen Size | 42.50" (1079.50 mm) |
| Display Screen Type | LCD |
| Response Time | 8 ms |
| Display Resolution | 3840 x 2160 |
| Orientation | Landscape/Portrait |
| Backlight Technology | Direct LED |
| Aspect Ratio | 16:9 |
| Video | |
| Scan Format | 2160p |
| Native Contrast Ratio | 1,200:1 |
| Dynamic Contrast Ratio | 50,000:1 |
| Brightness | 700 cd/m² |
| Network & Communication | |
| Ethernet | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of HDMI Inputs | 3 |
| RS-232C Input | Yes |
| Number of Audio Line Out | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Off-Mode Power Consumption | 300 mW |
| Physical Characteristics | |
| Bezel Color | Black |
| VESA Mount Standard | 200 x 200 |
| Mount Type | Wall Mountable |
| Installation Type | Hanging |
| Height | 22.13" (562 mm) |
| Width | 38.31" (973 mm) |
| Depth | 2.56" (65 mm) |
| Weight (Approximate) | 26.24 lb (11900 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | School,Conference Room |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
