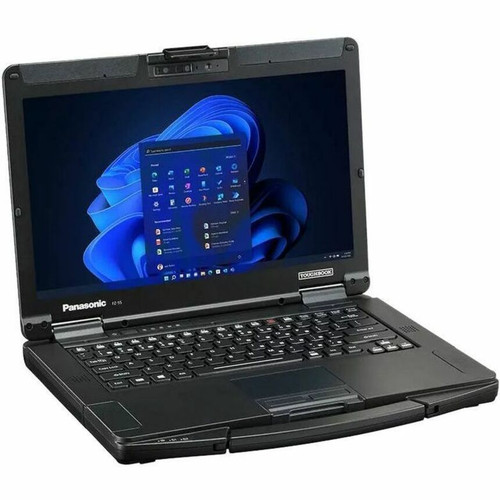

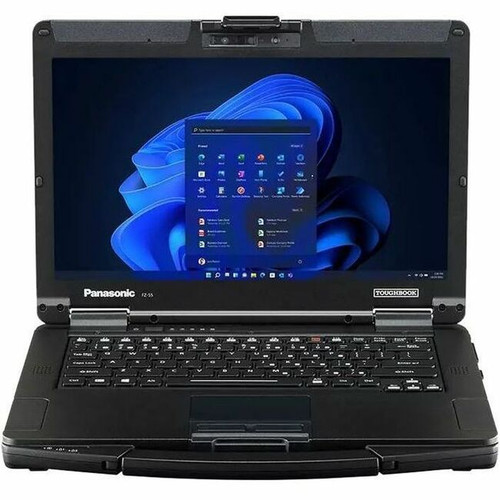

Panasonic FZ55JPK01BM TOUGHBOOK FZ-55 14" Rugged Notebook - Intel Core i5-1345U 10-Core - 32GB RAM - 2TB SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FZ-55 leverages Intel's 13th Gen Core i5-1345U mobile processor, a 10-core design with efficient and performance cores that scales up to 4.70 GHz under turbo boost. The platform supports up to 64 GB of DDR4-3200 memory across two SODIMM slots, with 32 GB pre-installed for immediate productivity.
Storage is handled by a 2 TB M.2 solid-state drive, providing fast boot times, rapid application loading, and ample capacity for field data, maps, and software tools. Graphics are driven by Intel integrated graphics with shared DDR4 memory, sufficient for dual-screen output, video playback, and basic CAD viewing.
This section brings together practical product details such as Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The TOUGHBOOK FZ-55 stands out with its modular xPAK design, allowing users to swap or upgrade components like secondary batteries, serial ports, or smart card readers in the field without tools. This flexibility future-proofs the device and tailors it to specific workflow needs.
All-Day Rugged Mobility
With up to 10 hours of battery life and a built-in carry handle, the FZ-55 is built for full-shift operation away from power outlets. The magnesium alloy construction and sealed ports meet MIL-STD-810H and IP53 standards for shock, vibration, dust, and water resistance.
- MIL-STD-810H certified
- IP53 dust/water resistant
- Built-in handle
- 10-hour battery
Sunlight-Readable Touch Display
The 14-inch IPS touchscreen delivers 1000 cd/m² brightness with anti-glare and anti-reflection treatments, ensuring clear visibility in direct sunlight or bright indoor environments. The capacitive touch layer supports gloved and bare-finger input for versatile field interaction.
- 1000 cd/m² brightness
- Anti-glare coating
- Capacitive touch
- IPS panel for wide viewing
Deployment / Use Cases
The FZ-55 is designed for professionals who work in harsh or unpredictable environments where standard notebooks would fail. Its ruggedness, modularity, and connectivity make it suitable for field service technicians, public safety responders, utility crews, and military personnel.
In vehicle-mounted deployments, the notebook maintains backwards compatibility with previous-generation TOUGHBOOK vehicle docks, protecting existing fleet investments. The built-in barcode scanner support (via optional xPAK) streamlines inventory, asset tracking, and logistics operations directly from the device.
Field Service & Inspection
Technicians can run diagnostic software, access manuals, and capture photos or notes on-site, even in wet, dusty, or high-vibration conditions. The bright touchscreen remains readable outdoors, and the rugged design survives accidental drops from work vehicles or benches.
Public Safety & First Response
Police, fire, and EMS teams rely on the FZ-55 for mobile data terminals, mapping, incident reporting, and communications. The device operates reliably in patrol cars, fire trucks, or emergency scenes where temperature extremes, moisture, and physical shocks are common.
Localization and Operating System
This TOUGHBOOK FZ-55 ships with Windows 11 Pro 64-bit pre-installed, providing a familiar, secure, and manageable environment for business and government users. Windows 11 Pro includes BitLocker encryption, remote desktop hosting, and enhanced security features suitable for sensitive field data.
The keyboard features a standard US layout with backlighting for low-light operation. Windows Hello compatibility allows for quick, secure login via facial recognition or fingerprint (with optional reader), streamlining access while maintaining security in shared-vehicle or mobile scenarios.
This section brings together practical product details such as Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The notebook measures 13.60" wide by 10.70" deep by 1.30" high (345.44 x 271.78 x 33.02 mm) and weighs 4.90 lb (2.22 kg), balancing screen size with portability for carry-on use or vehicle mounting. The magnesium alloy cover and internal frame provide strength without excessive weight, and the sealed port covers protect against dust and moisture ingress.
The design includes a built-in handle for easy carrying, reinforced corners for drop protection, and an optional hot-swappable secondary battery bay for extended runtime without powering down. The overall footprint fits standard vehicle docks and desktop stands, supporting flexible deployment across office and mobile settings.
- Width
- 13.60" (345.44 mm)
- Depth
- 10.70" (271.78 mm)
- Height
- 1.30" (33.02 mm)
- Weight
- 4.90 lb (2222.60 g)
What's in the Box
The package includes the TOUGHBOOK FZ55JPK01BM notebook, a lithium-ion battery, an AC adapter, a stylus pen with holder and tether, and relevant documentation. All essential items are present for immediate deployment out of the box.
Highlights
- 14" Full HD IPS touchscreen with 1000 cd/m² brightness for sunlight readability
- Intel Core i5-1345U 10-core processor (13th Gen) with up to 4.70 GHz turbo speed
- 32 GB DDR4-3200 RAM (expandable to 64 GB) for smooth multitasking
- 2 TB M.2 SSD for fast storage and ample capacity
- MIL-STD-810H and IP53 certified rugged magnesium alloy construction
- Up to 10 hours of battery life for all-day field use
- Windows 11 Pro 64-bit with Windows Hello compatibility
- Modular xPAK design for field-upgradable expansion options
- Includes stylus, backlit keyboard, and Thunderbolt 4/USB/HDMI ports
- 3-year limited warranty covering parts and labor
Specifications
| Specifications | |
|---|---|
| Manufacturer | Panasonic |
| Manufacturer Part Number | FZ55JPK01BM |
| Brand Name | Panasonic |
| Product Line | TOUGHBOOK |
| Product Series | FZ-55 |
| Product Model | FZ55JPK01BM |
| Product Name | TOUGHBOOK FZ55JPK01BM Notebook |
| Product Type | Notebook |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 13th Gen |
| Processor Model | i5-1345U |
| Maximum Turbo Speed | 4.70 GHz |
| Processor Core | Deca-core (10 Core) |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Supported System Memory | 64 GB |
| System Memory Technology | DDR4 SDRAM |
| System Memory Speed | 3200 MHz |
| System Memory Form Factor | SODIMM |
| Installed Slot Memory | 32 GB |
| Total Number of Memory Slots | 2 |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Screen Size | 14" |
| Screen Mode | Full HD |
| Display Screen Type | LCD |
| Display Screen Technology | In-plane Switching (IPS) Technology |
| Screen Resolution | 1920 x 1080 |
| Brightness | 1000 cd/m² |
| Touchscreen | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Ethernet Technology | Gigabit Ethernet |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Input Devices | |
| Keyboard Backlight | Yes |
| Battery Information | |
| Maximum Battery Run Time | 10 Hours |
| Power Description | |
| USB Power Delivery Support | Yes |
| Physical Characteristics | |
| Cover Material | Magnesium Alloy |
| Rugged | Yes |
| Height | 1.30" (33.02 mm) |
| Width | 13.60" (345.44 mm) |
| Depth | 10.70" (271.78 mm) |
| Weight (Approximate) | 4.90 lb (2222.60 g) |
| Miscellaneous | |
| Package Contents | TOUGHBOOK FZ55JPK01BM Notebook Lithium Ion Battery AC Adapter Stylus Pen Stylus Holder Tether |
| Charger Included | Yes |
| Energy Star | Yes |
| Features | Anti-glare Screen,Anti-reflection,Water Resistant,Barcode Scanner |
| Windows Hello Compatible | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year limited warranty, parts and labor |
User Manual
FAQ
What ruggedness certifications does the TOUGHBOOK FZ-55 meet?
The Panasonic TOUGHBOOK FZ-55 is certified to MIL-STD-810H for shock, vibration, and temperature extremes, and IP53 for protection against dust and water spray. This means it can withstand drops, bumps, and exposure to harsh environmental conditions common in field, vehicle, or outdoor use.
How does the modular xPAK system work?
The xPAK system allows users to swap modular bays on the side of the notebook without tools. You can add or replace components like a secondary hot-swappable battery, serial port, smart card reader, or barcode scanner in the field, customizing the device for specific tasks without returning it to a service center.
What is the screen brightness and why is it important?
The 14-inch touchscreen delivers 1000 cd/m² brightness, which is significantly higher than typical consumer notebooks. This high brightness, combined with anti-glare and anti-reflection coatings, ensures the display remains clearly visible in direct sunlight or brightly lit indoor environments, critical for outdoor inspections, vehicle use, or fieldwork.
Can the memory and storage be upgraded after purchase?
Yes, the memory is upgradeable via two accessible SODIMM slots, supporting up to 64 GB of DDR4-3200 RAM. The storage uses an M.2 SSD form factor, which can be replaced or upgraded with compatible drives. These upgrades can be performed by authorized service providers or technically skilled users following proper procedures.
What ports and connectivity options are included?
The FZ-55 includes two USB ports, one Thunderbolt 4 port, HDMI output, Gigabit Ethernet (RJ-45), and a 3.5mm audio jack. Wireless connectivity covers Wi-Fi 6 (802.11ax) and Bluetooth. This selection supports peripherals like external displays, docking stations, scanners, and network connections in various deployment scenarios.
What is included in the warranty coverage?
Panasonic provides a 3-year limited warranty that covers defects in materials and workmanship, including parts and labor. This warranty supports reliable long-term deployment in business and institutional settings, with service options available through authorized TOUGHBOOK repair centers.
What processor is listed for this laptop?
This product uses the Core i5 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 4.70 GHz processor for everyday performance and multitasking.
