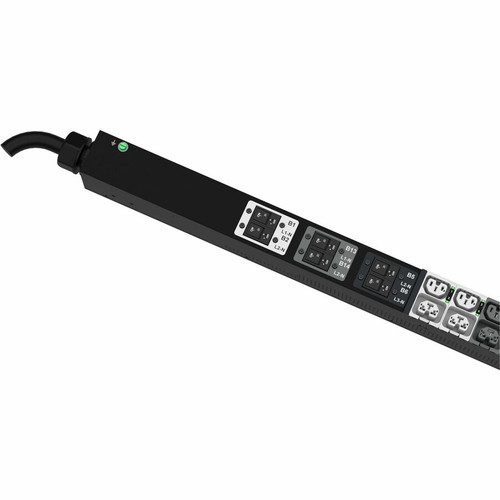

Panduit P48E20G G6 42-Outlet PDU - Monitored - Switched - 17. 3 kW - 230V AC - 0U Rack-Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on a three-phase power system with an IEC 60309 6H 3P+N+E input connector, delivering 208V AC output across its 42 outlets. The unit supports 32A input current at 60 Hz frequency, providing stable power distribution for critical infrastructure. The receptacle configuration includes 21 IEC 60320 C13/C15 outlets and 21 combination outlets that accept C13, C15, C19, and C21 connectors, accommodating diverse equipment power requirements.
Network management is enabled through RJ-45 ports with SNMP support, allowing integration into existing monitoring systems. The PDU maintains reliable operation within a 50°F to 140°F temperature range and features digital sensors for accurate power measurement. Its 0U vertical mounting design and 72" height make it suitable for full-height rack installations without consuming valuable rack unit space.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Panduit G6 PDU combines high outlet density with advanced monitoring capabilities, providing both power distribution and intelligent control in a space-efficient design. Its 42 outlets support mixed equipment types through combination receptacles, while the 17.3 kW capacity ensures adequate power for modern high-density server configurations.
Intelligent Power Management
SNMP management and onboard display enable real-time monitoring of power consumption, outlet status, and environmental conditions. Remote switching capabilities allow for controlled power cycling of individual outlets without physical access to the rack.
- Individual outlet control
- Power usage monitoring
- Network integration via SNMP
High-Density Design
The 0U vertical mounting and slim 2.20" profile maximize rack space utilization while providing 42 outlets. The combination receptacles accommodate various connector types without requiring adapters or special cables.
- 42 outlets in minimal space
- Mixed receptacle types
- No rack unit consumption
Deployment / Use Cases
This PDU is engineered for data center environments where reliable power distribution and monitoring are essential. Its 17.3 kW capacity and three-phase input make it suitable for server racks containing multiple high-power computing devices, storage arrays, and networking equipment that require stable, monitored power.
The vertical 0U mounting design is particularly valuable in full-height server cabinets where every rack unit is allocated to active equipment. Data center operators can deploy these PDUs in server racks, network cabinets, and telecommunications closets to provide both power distribution and monitoring capabilities. The combination outlets support equipment ranging from servers and switches to blade chassis and storage systems with different power connector requirements.
Data Center Server Racks
Provide monitored power to high-density server configurations with mixed equipment types. The 42 outlets and 17.3 kW capacity support multiple servers, storage units, and network devices in a single rack.
Network Equipment Cabinets
Distribute power to switches, routers, and other networking gear while maintaining visibility into power consumption. The SNMP management enables integration with network monitoring systems.
Physical Profile
Constructed from durable metal with a black finish, this PDU features a vertical mounting orientation with a 0U rack height. The unit measures 72" in height, 2.20" in width, and 3" in depth, designed to mount vertically in standard 19" racks without consuming rack units. The 10-foot input cord provides installation flexibility, while the 15-pound weight ensures secure mounting without excessive load on rack rails. Operating temperature ranges from 50°F to 140°F, suitable for typical data center environments.
- Width
- 2.20" (55.88 mm)
- Depth
- 3" (76.20 mm)
- Height
- 0U
- Weight
- 15 lb (6803.89 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes the G6 42-Outlets PDU and all necessary mounting hardware for immediate installation in standard 19" racks.
Package contents include G6 42-Outlets PDU Mounting Hardware, G6 42-Outlets PDU. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 42 outlets with mixed receptacle types (C13/C15/C19/C21)
- 17.3 kW load capacity for high-power equipment
- Monitored and switched outlets with individual control
- 0U vertical rack mounting saves valuable rack space
- SNMP management for network integration
- Three-phase 230V AC input with 208V AC output
- Onboard display for local monitoring
- 32A input current at 60 Hz frequency
- 10-foot input cord for installation flexibility
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P48E20G |
| Brand Name | Panduit |
| Product Series | G6 |
| Product Name | G6 42-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored,Switched |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 6H 3P+N+E |
| Receptacle Type | IEC 60320 C13/C15,IEC 60320 C13/C15/C19/C21 |
| Receptacle Detail | 21 x IEC 60320 C13/C15,21 x IEC 60320 C13/C15/C19/C21 |
| Features | Onboard Display |
| Load Capacity (Watt) | 17.30 kW |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 32 A |
| Input Frequency | 60 Hz |
| Management | |
| Management | SNMP |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Metal |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 72" (1828.80 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 3" (76.20 mm) |
| Weight (Approximate) | 15 lb (6803.89 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 24.8°F (-4°C) |
| Maximum Storage Temperature | 284°F (140°C) |
| Miscellaneous | |
| Package Contents | G6 42-Outlets PDU Mounting Hardware |
| Application/Usage | Data Center |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of equipment connectors does this PDU support?
This PDU supports IEC 60320 C13, C15, C19, and C21 connectors through its combination outlets. It includes 21 standard C13/C15 outlets and 21 combination outlets that accept all four connector types, making it compatible with servers, storage devices, networking equipment, and other IT hardware using these standard power connectors.
How is this PDU mounted in a server rack?
The PDU mounts vertically in standard 19" racks using a 0U mounting design, meaning it doesn't consume any rack units. It installs along the side or rear of the rack with a vertical orientation, measuring 72" in height to accommodate full-height racks. The included mounting hardware supports secure installation without requiring additional brackets or accessories.
What management capabilities does this PDU offer?
This PDU provides SNMP management through its RJ-45 network ports, allowing integration with existing network monitoring systems. It features an onboard display for local status viewing and supports remote monitoring and control of individual outlets. These capabilities enable power usage tracking, outlet status monitoring, and remote power cycling of connected equipment.
What is the power input requirement for this PDU?
The PDU requires a three-phase 230V AC power input with an IEC 60309 6H 3P+N+E connector. It operates at 32A input current and 60 Hz frequency, delivering 208V AC output to connected equipment. The 17.3 kW load capacity supports high-power computing equipment in data center environments.
How many outlets does this PDU provide and how are they configured?
This PDU provides 42 total outlets configured as 21 IEC 60320 C13/C15 outlets and 21 combination outlets that accept C13, C15, C19, and C21 connectors. This mixed configuration supports equipment with different power connector requirements without needing adapters, making it suitable for heterogeneous IT environments.
What warranty coverage does Panduit provide for this PDU?
Panduit provides a 3-year limited warranty for this PDU, covering defects in materials and workmanship. The warranty supports reliable deployment in data center environments, with additional extended warranty options available for organizations requiring longer coverage periods for critical infrastructure components.
What power capacity is listed for this UPS?
The listed power specification is 17.30 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
