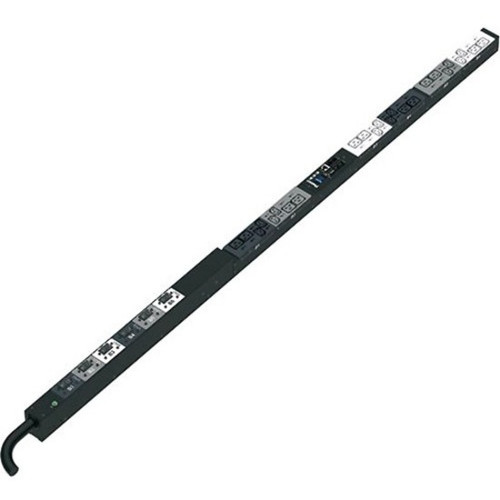

Panduit P24D34M-YL2C SmartZone G5 Intelligent Monitored PDU - 24 Outlets - 12 C13 - 12 C19 - 208V AC - 17. 3 kW - 60A - 0U Rack-Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on a three-phase electrical system with an IEC 60309 3P+E input plug, delivering 208V AC input and output voltage. The power capacity of 17.30 kW (17,300 watts) and 60A input current make it suitable for high-density rack deployments where power demands are substantial.
The receptacle layout includes 12 IEC 60320 C13 outlets and 12 IEC 60320 C19 outlets, providing flexibility for both standard and high-power devices. Network management is enabled through a built-in RJ-45 port, supporting SNMP, HTTP, and other protocols for integration into existing data center management systems.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 PDU combines high power capacity with intelligent monitoring capabilities, offering visibility and control over power usage at the rack level. Its vertical, 0U rack-mount design saves valuable rack space while providing easy access to all outlets.
High-Density Power Distribution
With 24 outlets and a 17.3 kW capacity, this PDU supports dense server and networking configurations without requiring multiple power strips or PDUs.
- 12 C13 outlets for standard equipment
- 12 C19 outlets for high-power devices
- 60A input current for heavy loads
Intelligent Monitoring
The integrated network port allows for remote monitoring of power metrics, outlet-level control, and environmental sensors, enabling proactive power management and capacity planning.
- RJ-45 connectivity for network integration
- Real-time power consumption tracking
- Outlet-level switching capabilities
Deployment / Use Cases
This PDU is designed for data centers, server rooms, and network closets where reliable, monitored power distribution is essential. Its 0U vertical mounting fits seamlessly into standard 19-inch racks, making it ideal for environments where rack space is at a premium.
Common deployments include high-density server racks, network equipment cabinets, and storage arrays that require both C13 and C19 power connections. The three-phase 208V AC input aligns with typical data center power infrastructure, ensuring compatibility with existing electrical systems.
Data Center Racks
Deploy in server racks to power multiple blade servers, switches, and storage units, with monitoring for capacity management and fault detection.
Network Equipment Cabinets
Use in telecom or network cabinets to distribute power to routers, firewalls, and other networking gear, with outlet-level control for remote rebooting.
Physical Profile
The PDU features a vertical, 0U rack-mount design with dimensions of 2.05 inches wide, 2.10 inches deep, and 68.90 inches long. This slim profile allows it to be mounted at the rear or side of a rack without consuming usable rack unit space. The construction is environmentally friendly and RoHS compliant, meeting regulatory standards for hazardous substance restrictions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0U, 2.05" (51.99 mm), 2.10" (53.34 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 24 total outlets: 12 IEC C13 and 12 IEC C19
- 17.30 kW power rating for high-density loads
- Three-phase 208V AC input and output
- 60A input current capacity
- 0U vertical rack-mount design saves space
- Network monitoring via RJ-45 port
- RoHS compliant and environmentally friendly
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P24D34M-YL2C |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MI |
| Product Name | SmartZone G5 Intelligent 24-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 3P+E |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C13,12 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 60 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power rating of this PDU?
The Panduit SmartZone G5 PDU has a power rating of 17.30 kW (17,300 watts). This capacity supports high-density rack deployments with multiple servers, networking equipment, and storage devices, ensuring sufficient power for demanding IT environments.
How many outlets does this PDU have and what types?
This PDU features 24 outlets total, with 12 IEC 60320 C13 outlets and 12 IEC 60320 C19 outlets. The C13 outlets are typical for standard IT equipment, while the C19 outlets handle higher-power devices like servers and UPS units, providing flexibility for mixed deployments.
What input voltage does this PDU require?
The PDU requires a three-phase 208V AC input via an IEC 60309 3P+E plug. This voltage is common in data center and commercial power systems, making it compatible with standard infrastructure without requiring voltage conversion.
How is this PDU mounted in a rack?
This PDU is designed for vertical, 0U rack mounting. It mounts on the rear or side of a standard 19-inch rack without consuming any rack unit space, preserving all usable U-height for servers and other equipment while keeping power distribution accessible.
Does this PDU support remote monitoring?
Yes, it includes an RJ-45 network port for remote monitoring and management. This allows IT staff to track power usage, control outlets individually, and receive alerts via protocols like SNMP or HTTP, integrating with data center management software.
What warranty comes with this PDU?
Panduit provides a 3-year limited warranty for this SmartZone G5 PDU. This coverage supports reliability in critical deployments, backed by the manufacturer's commitment to quality and performance in power distribution products.
What power capacity is listed for this UPS?
The listed power specification is 17.30 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
