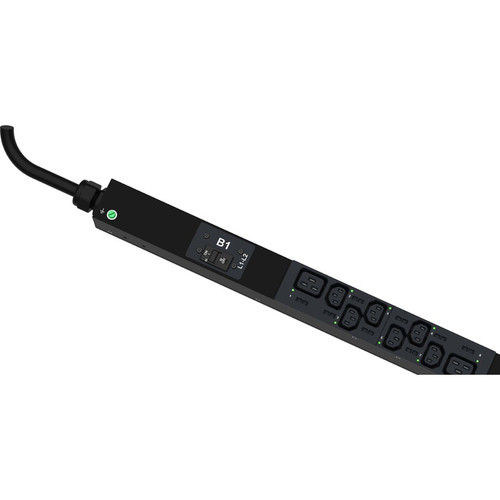

Panduit P24F11M SmartZone G5 Intelligent Monitored PDU - 24 Outlets - 18x C13 - 6x C19 - 17. 3 kW - 415V Input - 208V Output - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This monitored PDU operates on a three-phase power system with an IEC 60309 3P+N+E 6h 30A plug connector rated IP67 for dust and water resistance. The intelligent monitoring system enables detailed power analytics, load balancing, and remote outlet control through standard network protocols.
The vertical rack-mount design optimizes space utilization in standard server racks, while the RoHS-compliant construction meets environmental standards. Network connectivity via RJ-45 allows seamless integration into existing management infrastructures for centralized power monitoring.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 PDU combines high-density power distribution with intelligent monitoring capabilities that transform power management from passive distribution to active infrastructure management. Remote monitoring and control functions enable IT teams to optimize power usage, prevent overloads, and respond to issues without physical access to the rack.
Intelligent Power Monitoring
Real-time monitoring of current, voltage, power factor, and energy consumption provides actionable data for capacity planning and efficiency improvements.
- Remote outlet control
- Load monitoring alerts
- Power quality metrics
High-Density Configuration
With 24 outlets including 6 high-power C19 receptacles, this PDU supports mixed equipment environments from servers and storage to networking gear and power-hungry devices.
- 18 C13 outlets
- 6 C19 outlets
- Three-phase distribution
Rack-Optimized Design
Vertical mounting orientation maximizes rack space utilization while maintaining proper airflow and accessibility for cable management in standard data center racks.
- Vertical mount
- Rack-mountable
- Space-efficient design
Deployment / Use Cases
This monitored PDU is engineered for data centers, server rooms, and network closets where reliable power distribution and monitoring are critical. The three-phase power handling and 17.3 kW capacity make it suitable for high-density server racks, storage arrays, and networking equipment clusters.
The intelligent monitoring capabilities are particularly valuable in environments requiring detailed power usage reporting, remote management, or compliance with energy efficiency standards. IT teams can use the monitoring data for capacity planning, troubleshooting, and optimizing power distribution across their infrastructure.
Data Center Server Racks
Provide monitored power distribution for high-density server deployments with mixed equipment types requiring both standard and high-power outlets.
Network Equipment Closets
Distribute and monitor power for switches, routers, and other networking gear while maintaining visibility into power consumption and load patterns.
Highlights
- Intelligent monitored PDU with remote power control and load monitoring
- 24 total outlets: 18 IEC 60320 C13 and 6 IEC 60320 C19 receptacles
- 17.3 kW power rating for high-density equipment deployments
- Three-phase power with 415V input and 208V output
- IEC 60309 3P+N+E 6h 30A plug connector with IP67 rating
- Network connectivity via RJ-45 for remote management
- Vertical rack-mountable design for space-efficient installation
- RoHS compliant and environmentally friendly construction
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P24F11M |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MPO |
| Product Name | SmartZone G5 Intelligent 24-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 3P+N+E 6h 30A (IP67) |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 18 x IEC 60320 C13,6 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 415 V |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 17.30 kW |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The Panduit SmartZone G5 PDU has a maximum power rating of 17.30 kW (17,300 watts). This three-phase unit accepts 415V input and delivers 208V output, making it suitable for high-density server racks and equipment clusters requiring substantial power distribution capacity.
How many outlets does this PDU have and what types?
This PDU features 24 total outlets with a mixed configuration: 18 IEC 60320 C13 outlets for standard equipment and 6 IEC 60320 C19 outlets for high-power devices. This combination supports diverse equipment types in data center and server room environments.
What does 'monitored' mean for this PDU?
As a monitored PDU, this unit provides intelligent power monitoring capabilities including remote outlet control, load monitoring, and detailed power analytics. The integrated network interface allows IT teams to monitor current, voltage, power factor, and energy consumption in real-time, receiving alerts before critical overloads occur.
What type of power connector does this PDU use?
The PDU uses an IEC 60309 3P+N+E 6h 30A plug connector rated IP67 for protection against dust and water ingress. This industrial-grade connector is designed for three-phase power systems and provides reliable connectivity in various deployment environments.
How is this PDU mounted in a rack?
This PDU is designed for vertical rack mounting, optimizing space utilization in standard server racks. The rack-mountable design ensures secure installation while maintaining proper airflow and accessibility for cable management and monitoring interfaces.
What management capabilities does this intelligent PDU offer?
The SmartZone G5 PDU offers comprehensive management through its network interface, enabling remote power control of individual outlets, real-time load monitoring, power quality analysis, and energy consumption reporting. These capabilities support proactive power management, capacity planning, and troubleshooting without physical access to the rack.
What power capacity is listed for this UPS?
The listed power specification is 17.30 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 415 V, which helps position the unit for the right load level and installation role.
