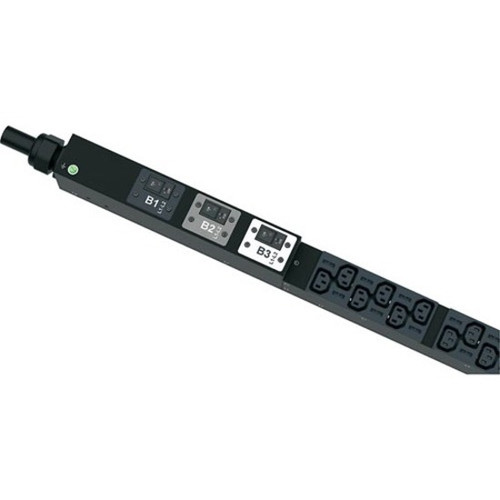

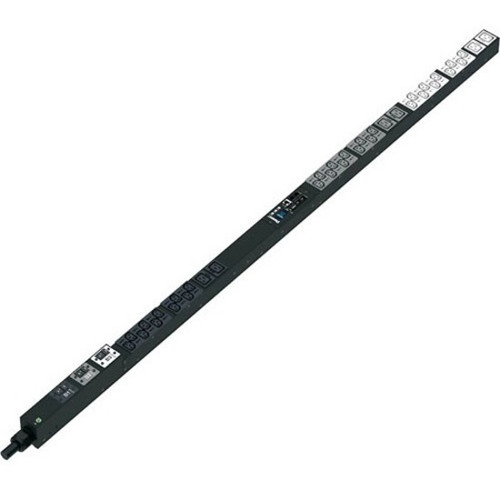

Panduit P36D26M-YL2C SmartZone G5 Intelligent Monitored PDU - 36 Outlets - 30x C13 - 6x C19 - 208V AC - 8. 3 kW - Vertical Rack Mount - 0U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This single-phase monitored PDU operates at 208V AC input and output, with a power rating of 8.30 kW and 30A input current. The receptacle configuration includes 30 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, accommodating a mix of server, network, and storage equipment power cords.
Network connectivity via RJ-45 enables remote monitoring and management, while the vertical mounting orientation and 0U rack height maximize space efficiency in standard 19-inch racks.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 PDU offers intelligent power monitoring that transforms basic power distribution into a managed infrastructure component. Remote voltage monitoring capabilities provide visibility into power conditions without physical access to the rack.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Energy Optimization, Space-Efficient Design.
Energy Optimization
Active metering enables precise tracking of power consumption, helping identify inefficiencies and support capacity planning.
- Real-time power monitoring
- Circuit-level protection
- Historical usage data
Space-Efficient Design
Vertical mounting with 0U rack height preserves valuable rack space for equipment while delivering power where needed.
- Zero rack units occupied
- 2.05" slim profile
- Full-length power distribution
Deployment / Use Cases
This PDU is ideal for data centers, server rooms, and network closets where high-density power distribution with monitoring is required. The 36-outlet configuration supports mixed equipment environments with both C13 and C19 power connections.
The vertical mounting design makes it particularly suitable for full-height server racks where side-mounted PDUs provide cleaner cable management and easier access to outlets. Network monitoring capabilities enable integration with DCIM (Data Center Infrastructure Management) systems for comprehensive infrastructure oversight.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Racks
Deploy in standard 19-inch server racks to power multiple servers, switches, and storage units with monitored power distribution.
Network Equipment Closets
Provide reliable, monitored power for networking gear while maintaining clean cable organization in vertical mounting orientation.
Physical Profile
Designed for vertical rack mounting, this PDU features a slim 2.05" width and 2.10" depth profile that fits neatly alongside equipment. The 68.90" length provides full coverage in standard rack heights, with all 36 outlets distributed along the vertical axis for organized cable routing.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0U, 2.05" (51.99 mm), 2.10" (53.34 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 36 total outlets: 30 x IEC C13 and 6 x IEC C19 receptacles
- 8.30 kW power rating at 208V AC single-phase operation
- Network-enabled for remote monitoring via RJ-45 connection
- Vertical rack-mount design with 0U height requirement
- Active metering for energy optimization and circuit protection
- RoHS compliant and environmentally friendly construction
- CS8265C plug/connector type for secure power connection
- 3-year limited warranty for reliable long-term performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P36D26M-YL2C |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MI |
| Product Name | SmartZone G5 Intelligent 36-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | CS8265C |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13,6 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 8.30 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this PDU?
This Panduit SmartZone G5 PDU has a power rating of 8.30 kW (8,300 watts) at 208V AC. It operates with 30A input current and delivers consistent 208V AC output to all 36 outlets, making it suitable for powering multiple servers and network devices in a rack environment.
How many outlets does this PDU have and what types?
The PDU features 36 total outlets: 30 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets. This mixed configuration accommodates standard server power cords (C13) as well as higher-power equipment requiring C19 connections, providing flexibility for diverse data center equipment.
Can this PDU be monitored remotely?
Yes, this is a monitored PDU with network connectivity via RJ-45. It enables remote monitoring of single-phase voltage and power metrics, allowing IT teams to track energy usage, optimize power distribution, and receive alerts for abnormal conditions without physical access to the rack.
How is this PDU mounted in a rack?
This PDU is designed for vertical rack mounting with a 0U height requirement. It mounts vertically along the side of standard 19-inch racks, occupying no rack units while providing full-length power distribution. The slim 2.05" width profile ensures it fits neatly alongside equipment.
What voltage does this PDU require and deliver?
The PDU operates at 208V AC for both input and output. It requires a 208V AC power source and delivers the same voltage to all connected equipment. This voltage is common in data center environments and compatible with most server and network equipment power supplies.
What environmental certifications does this PDU have?
This PDU is RoHS (Restriction of Hazardous Substances) compliant and marked as environmentally friendly. It meets international standards for reduced hazardous materials, making it suitable for environmentally conscious data center deployments while maintaining reliable performance.
What power capacity is listed for this UPS?
The listed power specification is 8.30 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
