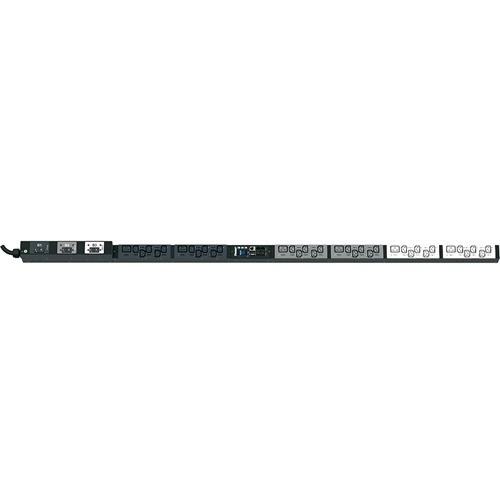

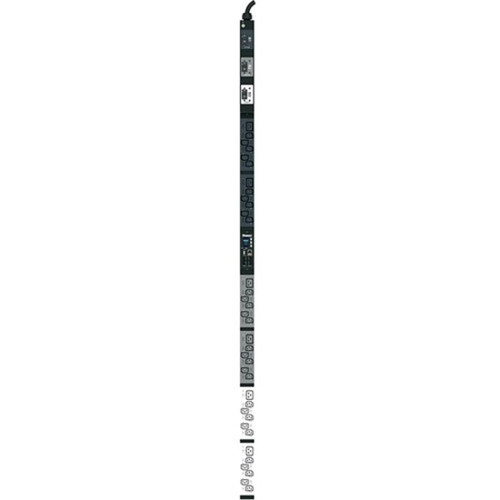

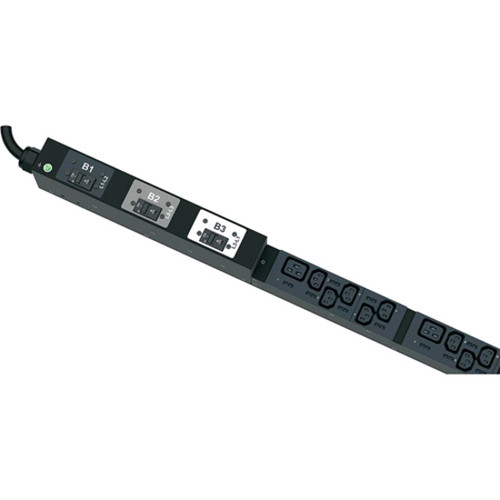

Panduit P36F16M-YL1C SmartZone G5 Intelligent Monitored PDU - 36 Outlets - 30x C13 - 6x C19 - 415V AC Input - 208V AC Output - 8. 6 kW/VA - 0U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SmartZone G5 PDU features a three-phase power architecture with 8.60 kVA/8.60 kW power capacity, delivering reliable power distribution for critical IT equipment. The unit accepts 415V AC input through a NEMA L15-30P connector and outputs 208V AC across its 36 outlets, with 30 IEC C13 and 6 IEC C19 receptacles providing flexibility for different equipment power cords.
Network connectivity via RJ-45 enables remote monitoring and management, allowing administrators to track power metrics without physical access to the rack. The 30A input current rating ensures sufficient capacity for demanding server and networking equipment loads. Environmental compliance with RoHS standards demonstrates Panduit's commitment to sustainable manufacturing practices.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SmartZone G5 Intelligent Monitored PDU combines high-density power distribution with advanced monitoring capabilities, giving IT teams unprecedented visibility into rack-level power consumption. Remote monitoring of single- or three-phase voltage enables proactive power management and helps prevent overload conditions before they impact critical equipment.
Intelligent Monitoring
Network connectivity allows remote monitoring of voltage, current, and power consumption, enabling data-driven capacity planning and troubleshooting.
- Remote voltage monitoring
- Current consumption tracking
- Network-accessible power data
High-Density Design
36 outlets in a 0U vertical form factor maximize power distribution capacity without consuming rack equipment space.
- 30 IEC C13 outlets
- 6 IEC C19 outlets
- Zero rack U-height consumption
Deployment / Use Cases
This PDU is ideally suited for data center environments where high-density server racks require reliable, monitored power distribution. The three-phase 415V input configuration makes it particularly valuable in commercial data centers and enterprise server rooms with three-phase power infrastructure.
Network operations centers benefit from the remote monitoring capabilities, allowing technicians to track power consumption across multiple racks without physical inspection. The vertical 0U mounting preserves valuable rack space for servers, switches, and storage equipment while providing comprehensive power distribution.
Data Center Power Distribution
Deploy in server racks to distribute three-phase power to multiple servers, storage arrays, and networking equipment with monitoring capabilities.
High-Density Equipment Support
Support blade server chassis, network switches, and other equipment with mixed C13 and C19 power requirements in constrained rack spaces.
Physical Profile
The PDU features a vertical 0U rack-mountable design with dimensions of 68.90" length, 2.05" width, and 2.10" depth (1750.01 mm × 51.99 mm × 53.34 mm). This slim profile mounts vertically in standard 19" or 23" racks without consuming equipment U-height, making it ideal for space-constrained environments. The vertical mounting orientation optimizes airflow while providing easy access to all 36 outlets.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 36 total outlets with 30 IEC C13 and 6 IEC C19 receptacles
- Three-phase power with 415V AC input and 208V AC output
- 8.60 kVA/8.60 kW power capacity for demanding equipment loads
- Monitored PDU with network connectivity for remote management
- 0U vertical rack-mountable design saves valuable equipment space
- NEMA L15-30P plug connector for three-phase power sources
- 30A input current rating supports high-power equipment
- RoHS compliant for environmentally responsible deployment
- Three-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P36F16M-YL1C |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MPO |
| Product Name | SmartZone G5 Intelligent 36-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L15-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13,6 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 415 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 8.60 VA |
| Power Rating (Watt) | 8.60 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of power input does this PDU require?
This Panduit SmartZone G5 PDU requires a three-phase 415V AC power input through a NEMA L15-30P connector. It outputs 208V AC across all 36 outlets, making it suitable for data centers and server rooms with three-phase power infrastructure.
How many outlets does this PDU have and what types?
The PDU provides 36 total outlets: 30 IEC 60320 C13 receptacles and 6 IEC 60320 C19 receptacles. This mix supports standard server and networking equipment (C13) along with higher-power devices that require C19 connections.
What does 'monitored PDU' mean for this unit?
As a monitored PDU, this unit includes network connectivity via RJ-45 that allows remote monitoring of power metrics. Administrators can track voltage, current, and power consumption without physical access to the rack, enabling proactive power management and capacity planning.
How is this PDU mounted in a rack?
This PDU uses a vertical 0U rack-mountable design. It mounts vertically along the side or rear of standard 19" or 23" racks without consuming any equipment U-height, preserving valuable rack space for servers, switches, and other critical equipment.
What is the power capacity of this PDU?
The PDU has a power rating of 8.60 kVA (8.60 kW) with a 30A input current. This capacity supports demanding server and networking equipment loads in high-density rack deployments while maintaining reliable power distribution.
What environmental standards does this PDU meet?
This PDU is RoHS (Restriction of Hazardous Substances) compliant, meeting international environmental standards for reduced hazardous materials. It's designed for environmentally responsible deployment in data centers and enterprise environments.
What power capacity is listed for this UPS?
The listed power specification is 8.60 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 415 V AC, which helps position the unit for the right load level and installation role.
