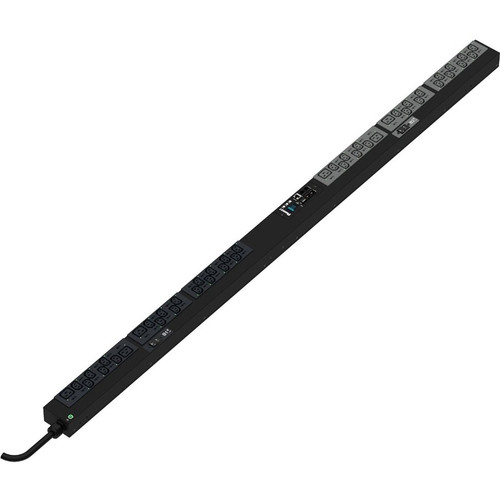

Panduit P48G03M SmartZone G5 Intelligent Monitored Rack PDU - 48 Outlets IEC 60320 C13 - 17. 3 kW - 415 V Input - Three Phase - Vertical Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SmartZone G5 PDU operates with 415 V three-phase input voltage and delivers 208 V AC output to connected equipment. The 48 IEC 60320 C13 outlets are protected by IP67-rated IEC 60309 connectors, ensuring reliable power connections in demanding environments. Network connectivity via RJ-45 enables comprehensive remote monitoring and management of power parameters.
The vertical mounting orientation optimizes rack space utilization while providing clear access to all outlets. With a 17.30 kW power rating, this PDU can support multiple high-density server configurations without compromising performance or safety.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 Intelligent Monitored PDU offers several advantages for data center power management. Remote monitoring capabilities provide real-time visibility into voltage, frequency, and load levels, enabling proactive management of power distribution and preventing potential overload situations before they impact operations.
High-Density Power Distribution
With 48 IEC 60320 C13 outlets, this PDU supports multiple servers and networking equipment in a single rack, reducing the need for additional power distribution units and simplifying cable management.
- 48 outlet capacity
- IEC 60320 C13 standard
- Optimized rack space
Intelligent Monitoring
Network connectivity enables remote monitoring of critical power parameters, allowing IT staff to track power consumption, identify potential issues, and optimize power distribution across the data center.
- Remote voltage monitoring
- Load balancing capabilities
- Network management interface
Robust Construction
Built with IP67-rated connectors and RoHS-compliant materials, this PDU delivers reliable performance in demanding environments while meeting environmental standards.
- IP67 connector rating
- RoHS compliant
- Vertical rack mount design
Deployment / Use Cases
This monitored rack PDU is ideal for data centers, server rooms, and network operations centers where reliable power distribution and remote management are critical. The 48-outlet configuration supports high-density server deployments, including blade servers, storage arrays, and networking equipment that require multiple power connections.
The vertical mounting design makes it particularly suitable for standard 19-inch server racks, where it can be installed alongside other equipment without consuming valuable horizontal space. The three-phase power capability ensures compatibility with commercial power systems commonly found in enterprise environments.
Data Center Server Racks
Provide power to multiple servers, storage devices, and networking equipment in high-density rack configurations while enabling remote monitoring of power consumption and load distribution.
Network Operations Centers
Support critical networking infrastructure with reliable power distribution and monitoring capabilities to maintain uptime and identify potential power issues before they cause service interruptions.
Highlights
- 48 IEC 60320 C13 outlets for high-density power distribution
- 17.30 kW total power capacity supports demanding server loads
- 415 V three-phase input voltage for commercial power systems
- Monitored PDU type enables remote voltage and load monitoring
- Vertical mounting orientation optimizes rack space utilization
- Network interface (RJ-45) for remote management capabilities
- IEC 60309 3P+N+E 6h 30A IP67-rated connectors
- RoHS compliant and environmentally friendly construction
- Three-year limited warranty for reliable performance
- 208 V AC output voltage for standard server equipment
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P48G03M |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MSPO |
| Product Name | SmartZone G5 Intelligent 48-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 3P+N+E 6h 30A (IP67) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 48 x IEC 60320 C13 |
| Power Description | |
| Input Voltage | 415 V |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 17.30 kW |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the total power capacity of this PDU?
This Panduit SmartZone G5 PDU has a total power rating of 17.30 kW (17,300 watts). This capacity supports multiple servers and networking devices in high-density rack configurations while maintaining safe operating margins and balanced power distribution across all connected equipment.
How many outlets does this PDU provide and what type are they?
The PDU features 48 IEC 60320 C13 outlets, which are standard connectors for server and networking equipment power cords. This high outlet count enables power distribution to multiple devices in a single rack without requiring additional PDUs or power strips.
What input voltage does this PDU require?
This PDU operates with 415 V three-phase input voltage, which is commonly available in commercial and data center power systems. The three-phase configuration provides efficient power distribution for high-density server environments and supports the 17.30 kW total capacity.
What monitoring capabilities does this PDU offer?
As a monitored PDU, this unit enables remote monitoring of single- or three-phase voltage, frequency, and load levels through its network interface. This allows IT staff to track power consumption, identify potential overload conditions, and optimize power distribution across server racks from a central management console.
How is this PDU mounted in a server rack?
This PDU is designed for vertical rack mounting, which optimizes space utilization in standard 19-inch server racks. The vertical orientation provides easy access to all outlets while maintaining a clean cable management setup and preserving horizontal space for other equipment.
What type of power connector does this PDU use?
The PDU features IEC 60309 3P+N+E 6h 30A connectors with IP67 rating. These industrial-grade connectors provide reliable power connections in demanding environments and offer protection against dust and water ingress, ensuring consistent performance in data center conditions.
What power capacity is listed for this UPS?
The listed power specification is 17.30 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 415 V, which helps position the unit for the right load level and installation role.
