Panduit U03S11V SmartZone 3000VA/3kW 2U Rack/Tower UPS - Online Double Conversion - AVR - 120V AC Input - 6-Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This online double conversion UPS utilizes fully digital control to provide stable and clean power with less ripple by filtering noise, incorporating AVR and surge protection. It operates with a wide input voltage range of 55-150 V AC, accommodating severe grid fluctuations, and delivers output voltages adjustable between 100-125 V AC. The unit achieves up to 96.5% efficiency, reducing energy waste and operational costs, and features output unity power factor for more active power available to IT loads.
Power management is enhanced with input power factor correction topology that dramatically reduces total harmonic distortion (THD). The DC system operates at 72 V DC with six sealed lead-acid (VRLA) batteries, each 12V with 9000 mAh capacity. Intelligent Battery Management employs temperature-compensated advanced algorithms to prolong battery life, supporting hot-swappable and replaceable batteries for minimal downtime.
Key Product Advantages
The SmartZone U03S11V distinguishes itself with a combination of high-capacity power protection, flexible deployment, and intelligent features designed for modern IT infrastructure. Its online double conversion topology ensures zero transfer time and superior isolation from input power anomalies, while the expandable battery system allows connection of up to four external battery packs to extend runtime as needed.
High Efficiency Operation
With efficiency up to 96.5% and Smart ECO mode, this UPS reduces energy consumption and heat generation, contributing to lower electricity costs and improved thermal management in rack environments.
- ENERGY STAR 2.0 certified
- Thermal dissipation: 801 BTU/h
Comprehensive Connectivity
Multiple communication ports including network RJ-45, USB HID compliant, serial, and EPO enable seamless integration with monitoring software and remote management systems for proactive power management.
- Dataline protection: RJ-45
- Alarm: Yes
Deployment / Use Cases
Ideal for data centers, enterprise server rooms, and edge computing locations, this UPS provides critical backup power for IT equipment, networking hardware, and storage systems. Its 2U rack-mountable design with rail compatibility makes it suitable for standard server racks, while the tower configuration option supports smaller offices or locations without rack infrastructure.
The unit's robust environmental specifications, including operation up to 104°F (40°C) and 9842.52 ft elevation, ensure reliable performance in diverse conditions. Applications extend to computer clusters, telecommunications equipment, and any scenario requiring clean, uninterrupted power with the ability to scale runtime through external battery packs.
Data Center Power Protection
Provides zero-transfer-time backup for servers and switches, with pure sine wave output compatible with active PFC power supplies commonly found in modern server equipment.
Edge Computing Reliability
Compact 2U form factor and wide input voltage range make it suitable for remote locations with unstable power grids, ensuring continuous operation of critical edge devices.
Physical Profile

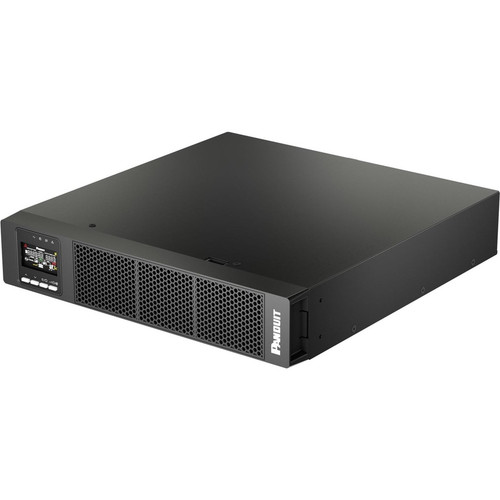

The UPS features a black chassis measuring 3.41" (86.50 mm) in height, 17.32" (440 mm) in width, and 23.62" (600 mm) in depth, occupying 2U of rack space. Weighing approximately 56.66 lb (25700 g), it includes integrated mounting hardware for secure rack installation or stable tower placement. The rotatable LCD display ensures visibility in either orientation, while the NEMA L5-30P plug and multiple receptacle types provide flexible power distribution options.
- Width
- 17.32" (440 mm)
- Depth
- 23.62" (600 mm)
- Height
- 3.41" (86.50 mm)
- Weight
- 56.66 lb (25700 g)
Highlights
- 3000VA/3kW double conversion online UPS with zero transfer time
- 2U rack/tower convertible design with rail mounting capability
- Wide input voltage range: 55-150 V AC for North American units
- High efficiency up to 96.5% with ENERGY STAR 2.0 certification
- Pure sine wave output compatible with active PFC equipment
- Expandable with up to four external battery packs for extended runtime
- Intelligent Battery Management with temperature compensation
- Colorful LCD display with four buttons and LED indicators
- Multiple communication ports: network RJ-45, USB, serial, EPO
- 5-year limited warranty with 3 years for UPS and 2 years for internal battery
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U03S11V |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U03S11V |
| Product Name | SmartZone U03S11V 3000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R,NEMA L5-30R |
| Receptacle Detail | 1 x NEMA L5-30R,4 x NEMA 5-20R |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Data Center,IT Equipment,Enterprise,Computer,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 55 V AC - 150 V AC,100 V AC - 125 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC,115 V AC,125 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 72 V DC |
| Number of Batteries | 6 |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time With External Battery Cabinet (Full Load) | 4.60 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 14.10 Minute |
| Battery Life | 5 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 801 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.41" (86.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 23.62" (600 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower,Rail Mountable |
| Weight (Approximate) | 56.66 lb (25700 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 3 Years for UPS 2 Years for Internal Battery and EBP |
User Manual
FAQ
What is the power capacity of this UPS?
The Panduit SmartZone U03S11V provides 3000VA (3 kVA) and 3000W (3 kW) of power capacity. This rating supports critical IT equipment such as servers, networking gear, and storage systems, delivering clean, stable power through its online double conversion topology with pure sine wave output.
Can this UPS be used in both rack and tower configurations?

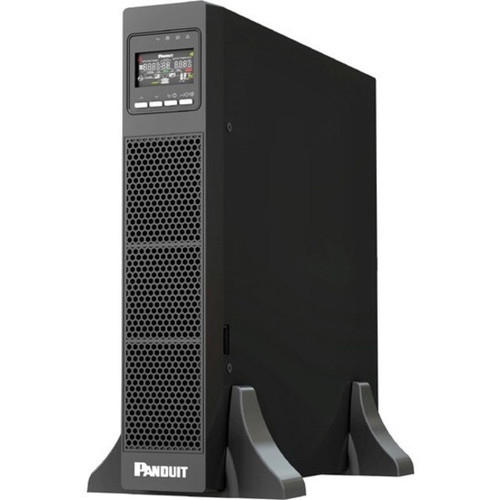

Yes, this UPS features a convertible rack/tower design. It occupies 2U of rack space and includes rail mounting hardware for standard server racks. For tower use, it can be placed vertically on a floor or shelf, with the rotatable LCD display ensuring visibility in either orientation.
What is the typical battery recharge time?
The typical battery recharge time is 6 hours. This refers to the duration required to fully recharge the internal batteries after a complete discharge. The Intelligent Battery Management system optimizes charging with temperature compensation to prolong battery life, which is rated at 5 years.
How many outlets does this UPS have and what types?
This UPS includes five outlets: one NEMA L5-30R receptacle and four NEMA 5-20R receptacles. The plug type is NEMA L5-30P. This configuration provides flexible power distribution for various IT equipment, with overload protection and dataline protection via RJ-45.
What management and monitoring options are available?
Management options include a colorful LCD with four buttons for local control, plus network RJ-45, USB HID compliant, serial, and EPO ports for remote monitoring. These interfaces enable integration with power management software for alerts, shutdown sequences, and runtime monitoring.
Is the battery hot-swappable and expandable?
Yes, the battery is hot-swappable, allowing replacement without shutting down connected equipment. The UPS also supports expansion with up to four external battery packs to extend backup runtime beyond the internal battery's capacity of 4.6 minutes at full load or 14.1 minutes at half load.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
