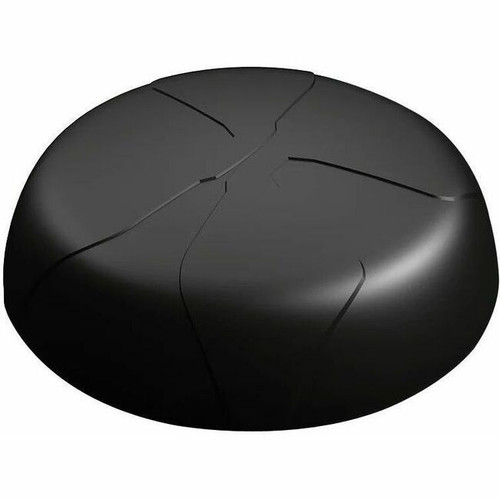

Panorama Antennas LGMQM4B-7-38-24-58 4 x 4 MIMO Vehicle Antenna for 2G/3G/4G/5G - WiFi + GNSS - 698-3800 MHz - 30 dB Gain - Omni-Directional
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This antenna leverages advanced MIMO technology with a 4x4 configuration to maximize data throughput and signal reliability for cellular and WiFi communications. The operating frequency span covers key LTE and 5G bands, ensuring compatibility with current and emerging network infrastructures.
With an isotropic gain of 5 dBi and a system gain of 30 dB, it provides substantial signal amplification to overcome path loss and interference. The omni-directional design eliminates the need for precise alignment, simplifying deployment in dynamic mobile settings.
Relevant factors for this section include Directivity, Operating Frequency Range, Antenna Gain, Connector Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The LGMQM4B-7-38-24-58 combines multiple wireless technologies into one efficient solution, reducing installation complexity and hardware footprint. Its high gain and wide frequency coverage ensure dependable performance across diverse cellular and WiFi networks.
Integrated Connectivity
Supports 2G/3G/4G/5G cellular, WiFi, and GNSS (GPS/GLONASS) in a single antenna, eliminating the need for separate devices.
- Consolidates multiple radio functions
- Reduces cabling and mounting points
Easy Installation
Features a magnetic mount and panel design for quick, secure attachment to vehicle surfaces without drilling or permanent modifications.
- Magnetic base for temporary or permanent use
- Omni-directional pattern requires no alignment
Robust Performance
Delivers 30 dB gain and omni-directional coverage to maintain strong signal integrity in mobile environments with varying conditions.
- Enhanced reception in weak signal areas
- Consistent coverage across 360 degrees
Deployment / Use Cases
This antenna is tailored for vehicle-based applications where reliable wireless connectivity and precise positioning are critical. Its design supports a range of mobile and fleet use cases, from commercial transportation to emergency services.
Ideal for in-vehicle routers, telematics systems, and mobile hotspots, it ensures continuous data exchange for navigation, remote monitoring, and communication. The inclusion of GNSS makes it suitable for asset tracking and logistics management, providing accurate location data alongside cellular and WiFi connectivity.
Relevant factors for this section include Directivity, Operating Frequency Range, Antenna Gain, Connector Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Fleet Management
Enables real-time tracking and data transmission for commercial vehicles, supporting GPS/GLONASS positioning and cellular data for fleet monitoring software.
Mobile Communications
Provides stable internet access and voice connectivity in moving vehicles, useful for public safety, transportation, and field service teams.
Physical Profile
The antenna features a compact panel design with dimensions of 6.70" (170.18 mm) in width and depth, and a low profile height of 1.89" (48.01 mm). Its black finish blends discreetly with vehicle exteriors, while the magnetic mount offers flexible placement on metal surfaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.89" (48.01 mm), 6.70" (170.18 mm), 6.70" (170.18 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.70" (170.18 mm)
- Depth
- 6.70" (170.18 mm)
- Height
- 1.89" (48.01 mm)
Highlights
- 4x4 MIMO configuration for enhanced data throughput and signal reliability
- Supports 2G, 3G, 4G, and 5G cellular networks across 698-3800 MHz
- Integrated WiFi and GNSS (GPS/GLONASS) capabilities in one antenna
- 30 dB gain for improved reception in challenging signal environments
- Omni-directional radiation pattern ensures consistent coverage without alignment
- Magnetic mount and panel form factor for easy vehicle installation
- Black color and compact design for discreet vehicle mounting
- Multiple connector types: SMA, FME, and RP-SMA for flexible cabling
Specifications
| Specifications | |
|---|---|
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LGMQM4B-7-38-24-58 |
| Brand Name | Panorama Antennas |
| Product Series | L[G]M[Q]M4 |
| Product Name | LGMQM4 | 4×4 MiMo 2G/3G/4G/5G, MiMo WiFi + GNSS Vehicle Antenna |
| Product Type | Antenna |
| Technical Information | |
| Directivity | Omni-directional |
| Operating Frequency Range | 698 MHz to 3800 MHz |
| Antenna Gain | 30 dB |
| Antenna Gain (Isotropic) | 5 dBi |
| Interfaces/Ports | |
| Connector Type | SMA,FME,RP-SMA |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 1.89" (48.01 mm) |
| Width | 6.70" (170.18 mm) |
| Depth | 6.70" (170.18 mm) |
| Diameter | 6.69" (169.93 mm) |
| Form Factor | Panel,Magnetic Mount |
| Miscellaneous | |
| Application/Usage | Vehicle,Cellular Network,In-vehicle Router,GPS,Radio Receiver,Wireless Data Network,GLONASS |
User Manual
FAQ
What frequency range does this antenna cover?
The Panorama Antennas LGMQM4B-7-38-24-58 operates from 698 MHz to 3800 MHz, covering key bands for 2G, 3G, 4G, and 5G cellular networks. This wide range ensures compatibility with most current and emerging wireless standards, providing reliable connectivity across diverse network infrastructures.
How does the 4x4 MIMO configuration benefit vehicle connectivity?
The 4x4 MIMO (Multiple Input Multiple Output) design uses four antennas for transmitting and receiving signals, which increases data throughput and reduces signal dropout in mobile environments. This results in faster internet speeds, more stable connections, and improved performance for applications like streaming, navigation, and real-time data transmission in vehicles.
Can this antenna be used for both cellular and WiFi networks?
Yes, this antenna supports both cellular (2G/3G/4G/5G) and WiFi communications, along with GNSS (GPS/GLONASS) for positioning. It integrates these functions into a single unit, simplifying installation and reducing the need for multiple antennas on a vehicle.
What is the advantage of an omni-directional antenna for vehicle use?
An omni-directional antenna radiates signals equally in all directions, eliminating the need for precise alignment during installation. This is ideal for vehicles that change orientation frequently, as it ensures consistent coverage and reliable connectivity regardless of the vehicle's direction or movement.
How is the antenna mounted on a vehicle?
The antenna features a magnetic mount and panel form factor, allowing it to be easily attached to metal surfaces on a vehicle's roof or body. This design requires no drilling or permanent modifications, making installation quick and flexible for temporary or long-term use.
What connectors are included with this antenna?
The antenna supports SMA, FME, and RP-SMA connector types, providing compatibility with a wide range of cables and devices. This flexibility ensures easy integration with existing in-vehicle routers, modems, or other wireless equipment without needing adapters.
