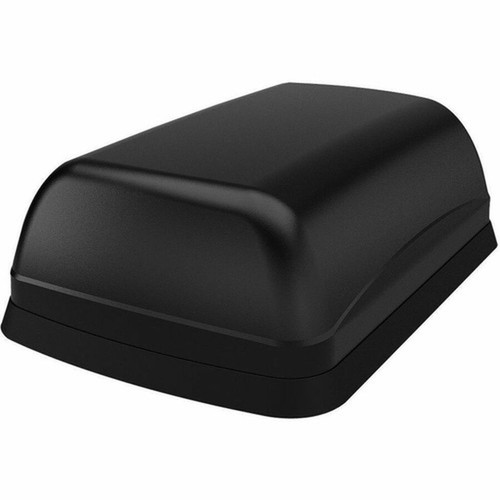

Panorama Antennas LPADM4-7-42 4 x 4 MIMO 4G/5G IoT Antenna - Omni-Directional - 698-7125 MHz - 12 dB Gain - SMA Connector
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This antenna leverages 4x4 MIMO technology to improve data throughput and signal reliability by utilizing multiple input and output streams. Its omni-directional radiation pattern provides 360-degree coverage, eliminating the need for precise directional alignment and simplifying installation in environments where signal sources may vary.
The operating frequency spans three key bands: 698-960 MHz for lower-band LTE and IoT applications, 1427-4200 MHz for mid-band 4G and early 5G, and 2396-7125 MHz for higher-band 5G and Wi-Fi extensions. This broad range ensures compatibility with current and emerging wireless standards, future-proofing network investments.
Relevant factors for this section include Directivity, Operating Frequency Range, Antenna Gain, Connector Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The LPADM4-7-42 antenna stands out with its combination of high gain, wide frequency coverage, and ease of deployment. Its omni-directional design reduces installation complexity, while the included flame-retardant cables enhance durability and safety in commercial or industrial settings.
Enhanced Signal Performance
With 12 dB gain and a low VSWR of 2.5:1, this antenna maximizes signal strength and minimizes reflection losses, ensuring stable connections for cellular and data networks.
- Boosts weak signals effectively
- Reduces signal degradation
Broad Compatibility
Covering frequencies from 698 MHz to 7125 MHz, it supports 4G LTE, 5G NR, IoT protocols, and GPS, making it versatile for mixed-technology environments.
- Future-proof for 5G rollouts
- Suitable for global frequency bands
Deployment / Use Cases
This antenna is ideal for scenarios requiring reliable wireless connectivity across distributed or hard-to-reach areas. Its omni-directional pattern and multi-band support make it suitable for applications where signal direction is unpredictable or multiple frequency bands are in use.
Common deployments include cellular network enhancement for remote offices, IoT sensor networks in industrial settings, GPS augmentation for fleet management, and wireless data backhaul for temporary or permanent installations. The compact dimensions allow for flexible mounting on poles, walls, or equipment racks without occupying excessive space.
Cellular Network Boosting
Deploy in areas with poor cellular reception to improve voice and data services for businesses, using its 698-960 MHz and 1427-4200 MHz bands for LTE and 5G coverage.
IoT and M2M Connectivity
Support machine-to-machine communications and IoT devices across wide areas, leveraging the antenna's broad frequency range to connect sensors, meters, and controllers.
Physical Profile
Measuring 2.24 inches in height, 4.65 inches in width, and 6.91 inches in depth (56.90 mm x 118 mm x 175.40 mm), this antenna features a compact and lightweight design that facilitates easy installation in space-constrained environments. The robust construction ensures durability against environmental factors, while the SMA connectors provide secure and reliable cable attachments for long-term performance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.24" (56.90 mm), 4.65" (118 mm), 6.91" (175.40 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.65" (118 mm)
- Depth
- 6.91" (175.40 mm)
- Height
- 2.24" (56.90 mm)
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box solution.
Highlights
- 4x4 MIMO technology for improved data throughput and signal reliability
- Omni-directional radiation pattern provides 360-degree coverage without directional alignment
- Operates across 698-7125 MHz, supporting 4G LTE, 5G NR, IoT, and GPS frequencies
- 12 dB gain (6.6 dBi isotropic) enhances signal strength in weak coverage areas
- SMA connectors ensure secure and standard-compliant cable connections
- Compact dimensions (2.24" H x 4.65" W x 6.91" D) allow flexible mounting options
- Includes low-loss flame-retardant cables for safe and efficient installation
- VSWR of 2.5:1 minimizes signal reflection and maximizes power transfer
Specifications
| Specifications | |
|---|---|
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LPADM4-7-42 |
| Brand Name | Panorama Antennas |
| Product Series | L[X]A[X]M4-7-42[-X] |
| Product Name | 4X4 MiMo 4G/5G IOT Antenna |
| Product Type | Antenna |
| Technical Information | |
| Directivity | Omni-directional |
| Operating Frequency Range | 698 MHz - 960 MHz,1427 MHz - 4200 MHz,2396 MHz - 7125 MHz |
| Antenna Gain | 12 dB |
| Antenna Gain (Isotropic) | 6.6 dBi |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 |
| Interfaces/Ports | |
| Connector Type | SMA |
| Physical Characteristics | |
| Height | 2.24" (56.90 mm) |
| Width | 4.65" (118 mm) |
| Depth | 6.91" (175.40 mm) |
| Miscellaneous | |
| Application/Usage | Cellular Network,Wireless Data Network,GPS |
| Package Contents | 4X4 MiMo 4G/5G IOT Antenna Low Loss Flame Retardant Cables |
FAQ
What frequency bands does this antenna support?
The Panorama Antennas LPADM4-7-42 supports three primary frequency ranges: 698-960 MHz for lower-band LTE and IoT, 1427-4200 MHz for mid-band 4G and early 5G, and 2396-7125 MHz for higher-band 5G and Wi-Fi extensions. This multi-band coverage ensures compatibility with a wide array of cellular, data, and GPS networks globally.
What is the gain of this antenna, and how does it affect performance?
This antenna has a gain of 12 dB (6.6 dBi isotropic), which significantly boosts signal strength to improve reception in areas with weak coverage. Higher gain helps extend range and enhance data throughput, making it effective for applications like cellular network boosting, IoT connectivity, and wireless data backhaul.
Is this antenna omni-directional or directional?
It is omni-directional, meaning it radiates signals equally in all directions (360-degree coverage). This design simplifies installation by eliminating the need for precise aiming toward a signal source, making it ideal for environments where signals come from multiple or unpredictable directions.
What type of connector does this antenna use?
The antenna uses SMA connectors, which are standard in RF and wireless applications for secure and reliable cable connections. SMA connectors provide good impedance matching and durability, ensuring minimal signal loss and stable performance in various deployment conditions.
What are the dimensions of this antenna?
The antenna measures 2.24 inches in height, 4.65 inches in width, and 6.91 inches in depth (56.90 mm x 118 mm x 175.40 mm). Its compact size allows for flexible mounting on poles, walls, or equipment racks without requiring extensive space, suitable for both indoor and outdoor installations.
What is included in the package?
The package includes the 4x4 MIMO 4G/5G IoT Antenna and low-loss flame-retardant cables. These cables are designed to minimize signal attenuation and enhance safety by resisting fire spread, providing a complete solution for immediate deployment in commercial or industrial settings.
