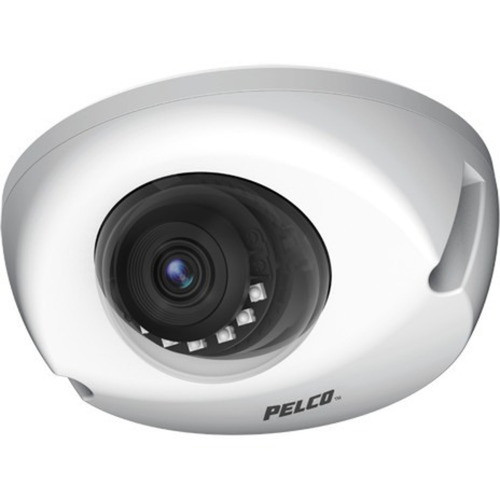

Pelco IWP133-1ERS Sarix Professional 1MP Outdoor Wedge Network Camera - Color - 82 ft IR Night Vision - Vandal Resistant - IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The IWP133-1ERS utilizes a CMOS image sensor that supports color video and features a wide 132° diagonal field of view. Video compression includes H.264, H.265, and Motion JPEG formats for flexible recording and streaming. The fixed 2.8 mm lens with an f/2.0 aperture captures a broad scene with adequate light gathering.
Exposure control is managed through a shutter speed range from 1/10,000 second to 1 second, supported by automatic gain control, digital noise reduction, and wide dynamic range. These imaging features work together to maintain picture quality in challenging lighting conditions, from bright backlight to low-light scenes.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This camera stands out with its combination of vandal resistance, environmental sealing, and consistent night vision. The IK10 impact rating and IP67 ingress protection mean it can endure physical abuse and continuous outdoor exposure without performance degradation.
All-Weather Operation
Rated for temperatures from -4°F to 131°F and 95% humidity, the camera performs reliably in seasonal extremes, from winter cold to summer heat.
- Wide temperature tolerance
- High humidity resistance
- Weather-resistant housing
Intelligent Imaging Features
Advanced processing includes automatic white balance, digital noise reduction, and wide dynamic range to optimize image clarity across varying light levels.
- WDR for high-contrast scenes
- Noise reduction for cleaner video
- Auto adjustments for color accuracy
Deployment / Use Cases
The wedge design and dual wall/ceiling mounting make the IWP133-1ERS ideal for corner installations, overhangs, and soffits where a low-profile presence is desired. Its 82-foot infrared reach covers parking lots, building perimeters, and loading docks effectively.
Common applications include retail store entrances, school campuses, warehouse exteriors, and office building security. The camera's memory card storage support allows for standalone recording or integration with larger NVR systems. Remote management capabilities enable centralized configuration and monitoring across distributed sites.
Perimeter Security
Deploy along fences, gates, and property boundaries to monitor unauthorized access with consistent day and night coverage.
- Long-range IR illumination
- Vandal-resistant construction
- Wide field of view
Entry Point Monitoring
Install above doors, windows, and delivery areas to capture clear footage of individuals and activities.
- Color imaging for identification
- Motion detection alerts
- Compact wedge form factor
Physical Profile
The camera measures 4.30" wide by 2.20" high with a wedge shape that facilitates discreet placement. Weighing 13.40 ounces, it is solidly constructed without being cumbersome. The included fixed lens is pre-focused, simplifying installation. Mounting options include standard wall and ceiling brackets, providing flexibility for various mounting surfaces and angles.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.20" (55.88 mm), 4.30" (109.22 mm), 13.40 oz (380 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.30" (109.22 mm)
- Height
- 2.20" (55.88 mm)
- Weight
- 13.40 oz (380 g)
- Length
- 2.8 mm (0.11")
Highlights
- 1-megapixel CMOS sensor for HD 1280x960 video at 30 fps
- 82-foot infrared night vision with consistent illumination
- IK10 vandal-resistant and IP67 weatherproof housing
- Wide 132° diagonal field of view with fixed 2.8 mm lens
- Supports H.264, H.265, and Motion JPEG video compression
- Operates from -4°F to 131°F and up to 95% humidity
- Wedge form factor with wall and ceiling mounting
- Includes features like WDR, motion detection, and noise reduction
- Wired connectivity with remote management support
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Motorola Solutions, Inc. |
| Manufacturer Part Number | IWP133-1ERS |
| Brand Name | Pelco |
| Product Line | Sarix Professional |
| Product Series | 3 |
| Product Model | IWP133-1ERS |
| Product Name | Sarix Professional IWP133-1ERS Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision | Yes |
| Night Vision Distance | 82 ft (24.99 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal: 112° Vertical: 60° Diagonal: 132° |
| Effective Camera Resolution | 1 Megapixel |
| Video | |
| Video Formats | H.264,H.265,Motion JPEG |
| Maximum Video Resolution | 1280 x 960 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Physical Characteristics | |
| Mount Type | Wall Mount,Ceiling Mount |
| Form Factor | Wedge |
| Durability | Vandal Resistant,Weather Resistant |
| Height | 2.20" (55.88 mm) |
| Width | 4.30" (109.22 mm) |
| Weight (Approximate) | 13.40 oz (380 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Auto Gain Control,Automatic White Balance,Back Light Compensation (BLC),Day/Night,Digital Noise Reduction,Motion Detection,Wide Dynamic Range |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the effective resolution of this Pelco camera?
The Pelco IWP133-1ERS provides 1-megapixel resolution, which equates to a maximum video resolution of 1280 x 960 pixels. This HD resolution delivers clear detail for identifying subjects and activities in surveillance footage.
How far does the night vision reach on this outdoor camera?
The integrated infrared illuminators provide night vision up to 82 feet (24.99 meters). This allows the camera to capture usable video in complete darkness, covering typical outdoor areas like driveways, yards, and building perimeters.
Is this camera suitable for harsh outdoor environments?
Yes, the camera is built for demanding outdoor use. It carries an IP67 rating for dust and water resistance and an IK10 impact rating for vandal resistance. It operates reliably in temperatures from -4°F to 131°F and up to 95% humidity.
What type of lens does this camera have, and is it adjustable?
The camera features a fixed 2.8 mm lens with a maximum aperture of f/2.0. The lens is not adjustable; it provides a wide field of view (132° diagonal) that is preset for broad area coverage, simplifying installation.
Can this camera be mounted on both walls and ceilings?
Yes, the IWP133-1ERS supports both wall mount and ceiling mount installations. Its wedge form factor is designed for corner placements and low-profile mounting on various surfaces.
What video formats does this network camera support?
The camera supports H.264, H.265, and Motion JPEG video compression formats. This flexibility allows for efficient bandwidth usage and compatibility with a wide range of recording systems and video management software.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
