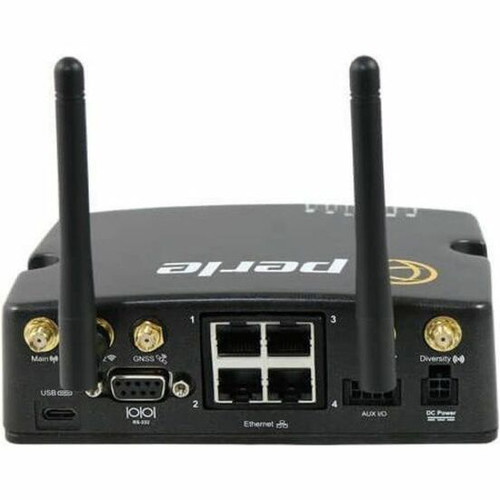

Perle 08000404 IRG5541+ Wi-Fi 5 Dual-Band Cellular Modem/Wireless Router - 4G LTE - 2 SIM - Gigabit Ethernet - VPN - Wall/Panel/DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the IRG5541+ is powered by a Cortex A53 dual-core processor running at 1.20 GHz, paired with 1 GB of DDR4 SDRAM for smooth handling of network traffic, VPN tunnels, and multiple connected devices. The 4 GB of flash storage on a MultiMediaCard (MMC) holds the operating system and configuration files.
Wireless performance is delivered through dual-band Wi-Fi 5 (802.11ac) with support for both 2.4 GHz (ISM) and 5 GHz (UNII) bands, offering a total wireless transmission speed of up to 108.38 MB/s. Cellular connectivity is comprehensive, supporting 4G LTE bands including 2100, 1900, 1800, 850, 2600, 900, 700, 800, and 2300 MHz, as well as WCDMA bands for 3G fallback. Data technologies include HSPA, HSPA+, DC-HSPA+, UMTS, and LTE Advanced Pro.
Relevant factors for this section include Wi-Fi Generation, Network Band, Processor Type, Broadband Transmission Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The IRG5541+ stands out with its flexible mounting options and carrier-grade cellular support, making it suitable for both commercial and industrial deployments where environmental adaptability and network reliability are paramount.
Flexible Installation
Designed for multiple mounting styles, it can be installed on a panel, DIN rail, desktop, or wall, allowing seamless integration into server racks, control cabinets, or office environments without requiring dedicated shelf space.
Dual SIM Redundancy
Support for two Mini SIM cards enables automatic failover between cellular carriers or plans, ensuring continuous internet access even if one network experiences an outage, which is critical for point-of-sale systems, surveillance, and remote monitoring.
Integrated Network Hub
With four Gigabit Ethernet ports, built-in USB for peripheral sharing, and VPN capabilities, it consolidates wired, wireless, and cellular connectivity into a single device, reducing hardware clutter and simplifying network management.
Deployment / Use Cases
The Perle IRG5541+ is engineered for environments where traditional broadband is impractical or as a backup solution to ensure business continuity. Its rugged design and mounting versatility suit it for both indoor and protected outdoor installations.
Common applications include retail stores requiring reliable connectivity for payment terminals and inventory systems, remote construction sites or temporary offices needing quick internet setup, industrial facilities where wired infrastructure is limited, and vehicles or mobile command centers that benefit from cellular-based networking. It also serves as a primary router for small branch offices or a failover gateway for larger networks, providing automatic switchover to cellular during DSL or cable outages.
Remote & Temporary Sites
Ideal for pop-up shops, event venues, or field operations where installing fixed-line internet is time-consuming or cost-prohibitive. The cellular connection provides immediate connectivity.
Industrial & IoT Networks
Suitable for manufacturing plants, warehouses, or utility substations where equipment monitoring and control systems require dependable internet. DIN rail mounting integrates neatly into industrial control panels.
Physical Profile
The IRG5541+ features a compact, durable chassis measuring 5.75 inches wide by 3.89 inches deep by 1.77 inches high (146.05 x 98.81 x 44.96 mm), with a weight of approximately 1.30 pounds (589.67 grams). Its design supports multiple mounting methods: panel-mounting for integration into equipment enclosures, DIN rail mounting for industrial racks, desktop placement with the included power supply, or wall-mounting for space-optimized installations. The unit is environmentally compliant with REACH, RoHS 3, and WEEE directives.
- Width
- 5.75" (146.05 mm)
- Depth
- 3.89" (98.81 mm)
- Height
- 1.77" (44.96 mm)
- Weight
- 1.30 lb (589.67 g)
What's in the Box
The package includes everything needed for immediate deployment.
Package contents include IRG5541+ Modem/Wireless Router Power Supply WLAN Antennas, IRG5541+ Modem/Wireless Router. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Wi-Fi 5 dual-band wireless with IEEE 802.11a/b/g/n/ac support
- 4G LTE cellular connectivity with broad band support for global compatibility
- Dual Mini SIM slots for network redundancy or multi-carrier use
- Four Gigabit Ethernet ports for high-speed wired connections
- Built-in USB port for network-accessible peripheral sharing
- VPN supported for secure remote access and site-to-site tunnels
- Flexible mounting: panel, DIN rail, desktop, or wall mountable
- Powered by a Cortex A53 dual-core 1.20 GHz processor with 1 GB DDR4 RAM
- Includes power supply and WLAN antennas in the box
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 08000404 |
| Brand Name | Perle |
| Product Series | IRG5500+ |
| Product Model | IRG5541+ |
| Product Name | IRG5541+ Modem/Wireless Router |
| Product Type | Modem/Wireless Router |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 5 |
| Network Band | Dual Band |
| Processor Type | Cortex A53 |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 1.20 GHz |
| Memory Technology | DDR4 SDRAM |
| Standard Memory | 1 GB |
| Wireless Specifications | |
| Broadband Transmission Technology | Cellular |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Cellular Generation | 4G |
| Cellular Network Supported | LTE 2100,LTE 1900,LTE 1800,LTE 850,LTE 2600,LTE 900,LTE 700,LTE 800,LTE 2300,WCDMA 2100,WCDMA 1900,WCDMA 1800,WCDMA 900,WCDMA 850 |
| Cellular Data Connectivity Technology | HSPA,HSPA+,DC-HSPA+,UMTS,LTE Advanced Pro |
| Total Wireless Transmission Speed | 108.38 MB/s |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 4 |
| USB | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| VPN Supported | Yes |
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Mini |
| Storage | |
| Flash Memory Capacity | 4 GB |
| Storage Media | MultiMediaCard (MMC) |
| Physical Characteristics | |
| Form Factor | Panel-mountable,DIN Rail Mountable,Desktop,Wall Mountable |
| Height | 1.77" (44.96 mm) |
| Width | 5.75" (146.05 mm) |
| Depth | 3.89" (98.81 mm) |
| Weight (Approximate) | 1.30 lb (589.67 g) |
| Miscellaneous | |
| Package Contents | IRG5541+ Modem/Wireless Router Power Supply WLAN Antennas |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) 3,Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What Wi-Fi standard does the Perle IRG5541+ support?
The IRG5541+ supports Wi-Fi 5, also known as IEEE 802.11a/b/g/n/ac. This dual-band standard operates on both the 2.4 GHz (ISM) and 5 GHz (UNII) frequency bands, providing reliable wireless connectivity for devices like computers, printers, and IoT equipment with a total wireless transmission speed of up to 108.38 MB/s.
How many SIM cards can this router support?
This router supports two Mini SIM cards. This dual-SIM capability allows for network redundancy by automatically failing over to a second cellular carrier if the primary connection drops, or it can be used for load balancing across different data plans to optimize costs and performance in areas with multiple available networks.
What cellular networks and bands are compatible?
The IRG5541+ is compatible with 4G LTE networks across a wide range of bands, including LTE 2100, 1900, 1800, 850, 2600, 900, 700, 800, and 2300 MHz. It also supports 3G WCDMA bands (2100, 1900, 1800, 900, 850) for fallback connectivity. This broad compatibility ensures reliable cellular internet access in many regions globally.
Can this router be mounted in an industrial setting?
Yes, the IRG5541+ is designed for flexible installation in various environments. It supports panel-mounting for integration into equipment enclosures, DIN rail mounting for industrial control racks, desktop placement, and wall-mounting. This versatility makes it suitable for factories, utility sites, or any location where space optimization and rugged installation are required.
Does it have VPN support for secure connections?
Yes, the router includes VPN support, allowing you to establish secure site-to-site or remote-access VPN tunnels. This feature is essential for protecting data transmitted over public cellular networks, enabling secure connectivity between branch offices, remote workers, and central networks without compromising on security.
What wired connectivity options are available?
The IRG5541+ provides four Gigabit Ethernet ports for high-speed wired network connections to devices like computers, switches, or servers. It also includes a USB port, which allows USB-compatible peripherals such as printers or storage drives to be shared across the wireless network, adding functionality without additional hardware.
